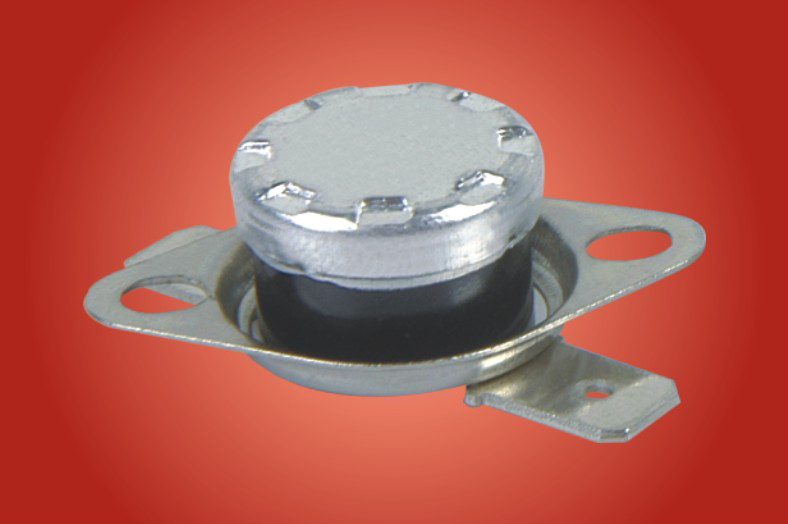

Bimetallic Disc Thermostat
This bimetallic thermostat is designed for temperature control and thermal protection. It is commonly used in appliances, HVAC systems, and other applications requiring precise temperature regulation.
Technical Specifications
Product Overview
High-Performance Bimetallic Disc Thermostat
This bimetallic disc thermostat is engineered for precise temperature control and thermal protection across a wide range of industrial and domestic applications. Featuring a robust construction with a durable brass or metal housing and a sensitive bimetallic disc mechanism, it ensures reliable switching performance. It is ideal for integration into HVAC systems, electrical appliances, and various thermal regulation circuits requiring consistent operation within a broad temperature range.
Electrical Specifications
- Voltage Range
- AC 100 - 250V
- Rated Current Options
- 5A10A16A
Performance
Operating Temperature Range
-15 C
Minimum
250 C
Maximum
- Temperature Tolerance
- +/- 5C
Design & Construction
Housing Construction
- Brass body
- Black phenolic base
- Metal housing
- Integrated mounting brackets
