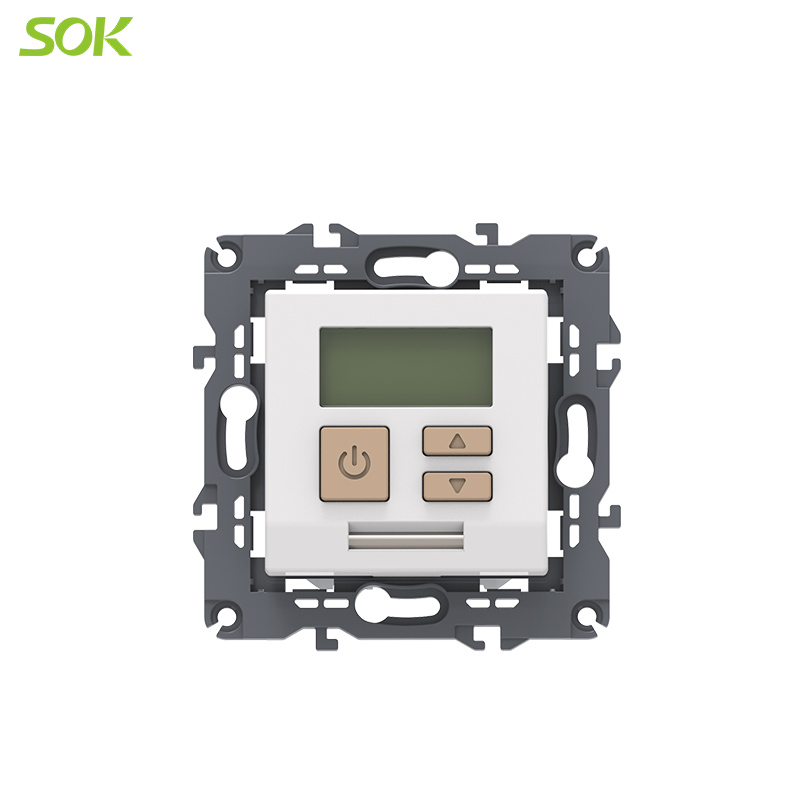

Digital Thermostat Switch for Temperature Control
This digital thermostat switch uses a microcomputer chip to accurately detect and adjust temperature via internal or external sensors. It automatically turns on/off the heater based on user settings, ensuring temperature regulation and energy efficiency.
Technical Specifications
Overview
Advanced Temperature Control Solution
This digital thermostat utilizes an advanced microcomputer chip to provide high-accuracy temperature monitoring via interior or exterior sensors. It automatically manages heating equipment by comparing real-time data with user-defined settings, ensuring optimal comfort and energy efficiency. Built-in protection features prevent overheating and abnormally low temperature settings, significantly prolonging the lifespan of your heating systems.
Key Performance Metrics
Key Performance Metrics
16 A
Max Current
90 ℃
Max Temp
2 Years
Warranty
Electrical Specifications
- Operating Voltage
- 220V-250V~ 50Hz
- Maximum Current
- 16 A
- Safety Standards
- 850°C Fire-Resistant PC3000V Test PassedChild-Proof Shutter
Control & Operation
- End-use Temperature Range
- 5~90℃
- Temperature Difference (Default)
- 1 ℃
- Mechanical Life
- More than 2 years
Design & Materials
Available Colors
WhiteCustomized

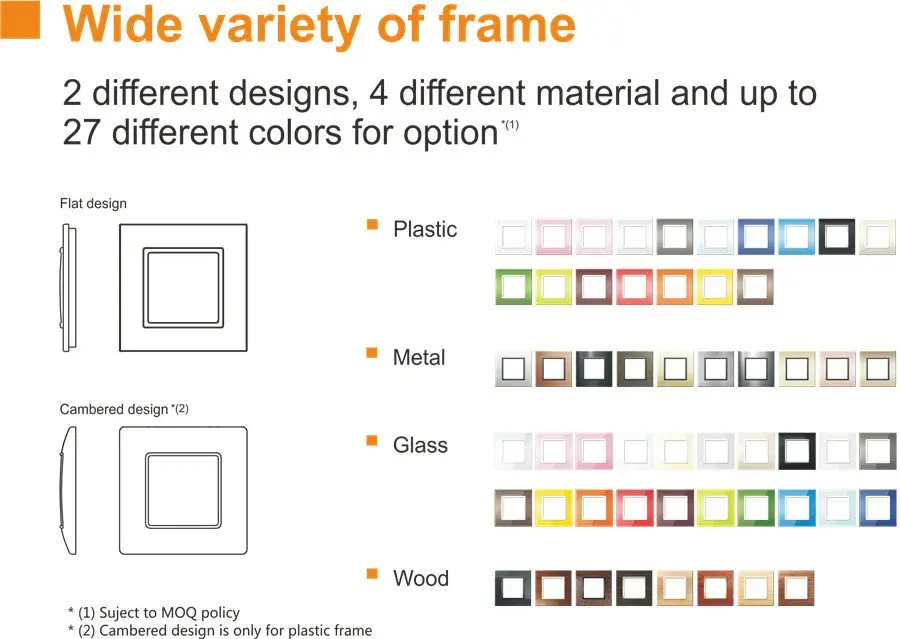

Frame Design Options
- Flat Design
- Cambered Design (Plastic only)

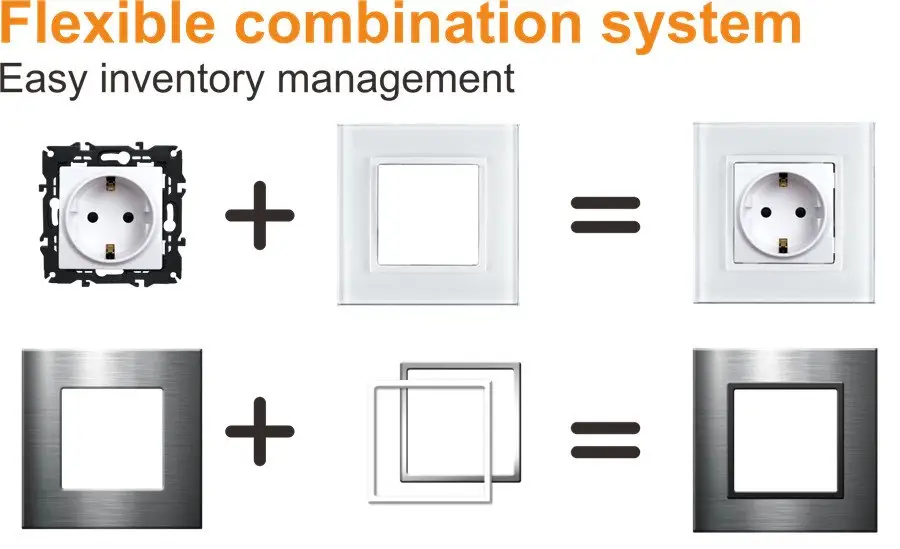

- Modular Fitting System
- Housing Material
- Fire-resistant Polycarbonate (PC)

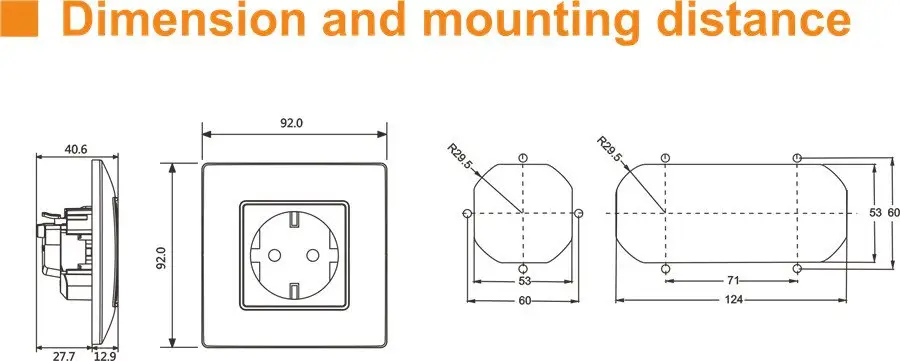

Installation & Dimensions
Mounting Details
| Feature | Specification |
|---|---|
| Faceplate Size | 92.0 x 92.0 mm |
| Internal Depth | 27.7 mm |
| Protrusion | 12.9 mm |
| Mounting Distance | 53mm / 71mm |
Installation Safety Guidelines
- Follow connection scheme for cables
- Avoid pulling cables with force to prevent damage
- Do not press or scratch the LCD screen
- Avoid dropping to prevent back-housing deformation
- Pre-bend hard cables to suitable angles before connection
- Unit Dimensions
- 74.7 x 74.7 x 47.3 mm
Logistics
Packaging Configuration
| Unit | Quantity |
|---|---|
| Box | 10 |
| Carton | 100 |
