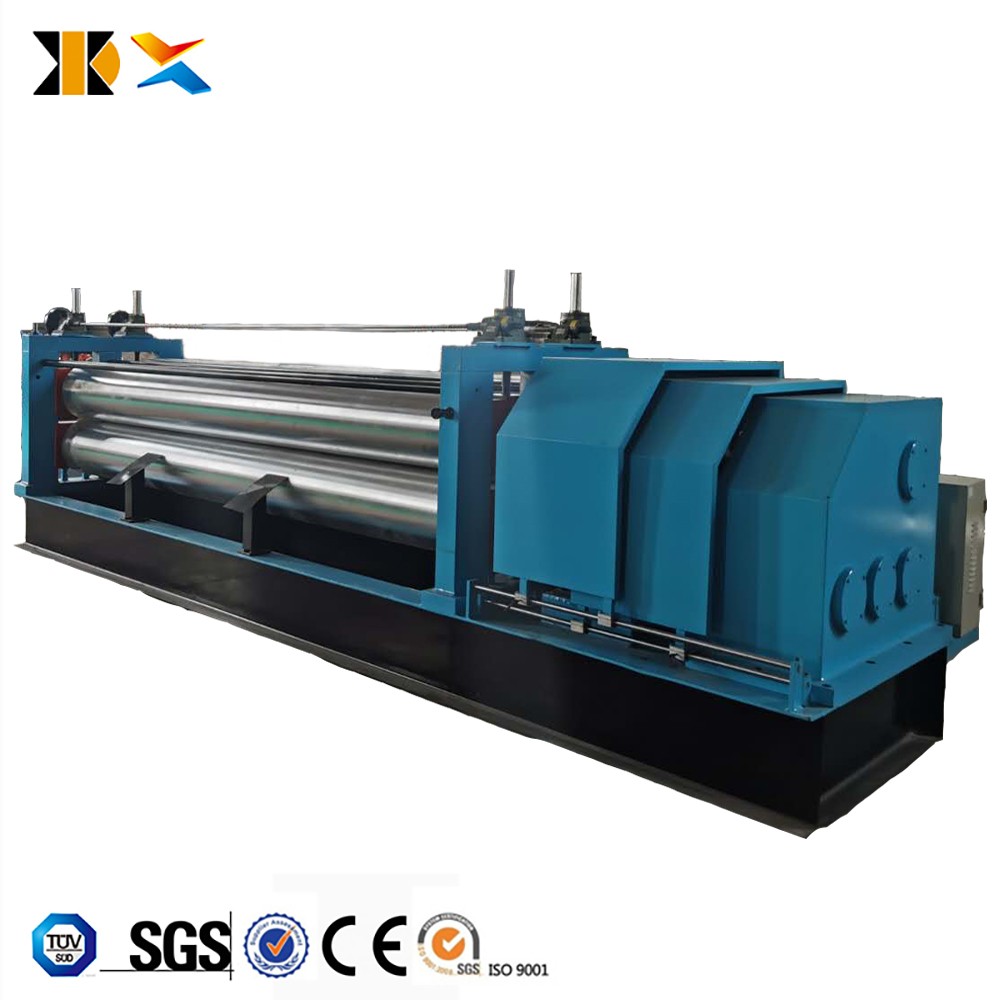

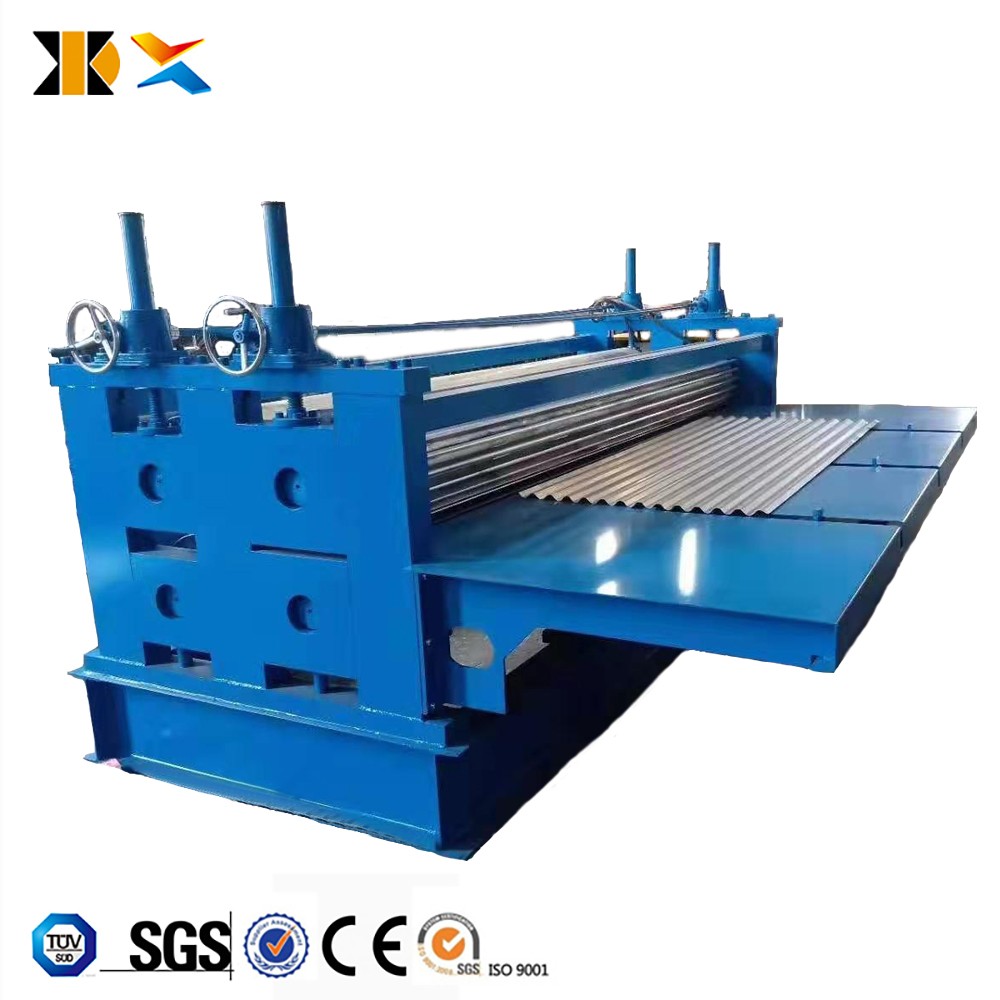

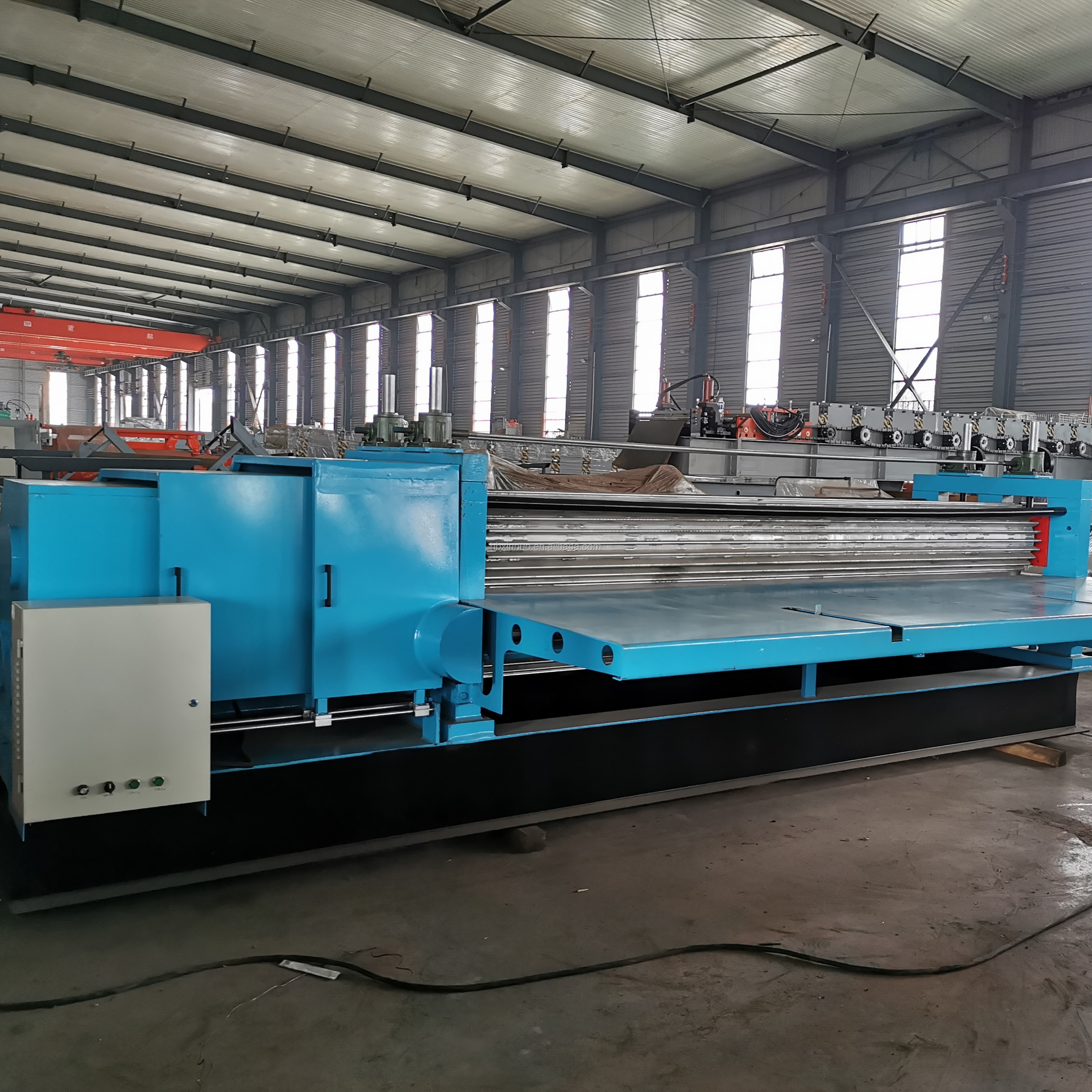

Barrel Corrugated Roofing Sheet Rolling Machine
This machine forms corrugated patterns on metal sheets to produce roofing sheets with barrel-shaped corrugations. It features a robust construction with multiple rollers for precise and consistent forming.
Technical Specifications
Product Overview
High-Efficiency Barrel Corrugated Rolling Solution
This barrel corrugated roofing sheet rolling machine is engineered for high-volume production of metal roofing with a distinct barrel-shaped profile. Featuring a robust construction with multiple precision rollers and advanced hydraulic systems, it ensures consistent forming and enhanced structural strength for the finished sheets. Designed for industrial reliability, the machine offers a user-friendly interface and adjustable settings to accommodate various material thicknesses and production requirements.
Technical Specifications
- Feeding Material Thickness
- 0.12-0.3mm / 0.16-0.4mm
- Max Feeding Width
- 1000 mm
Performance Metrics
Performance Highlights
12 pcs/min
Max Productivity
4 T/hour
Max Capacity
- Productivity Speed
- 9-12 pcs/min
Quality & Compliance
- Certifications
- CETUVSGSISO 9001
Design & Construction
Key Features
- Heavy-duty rolling mill process

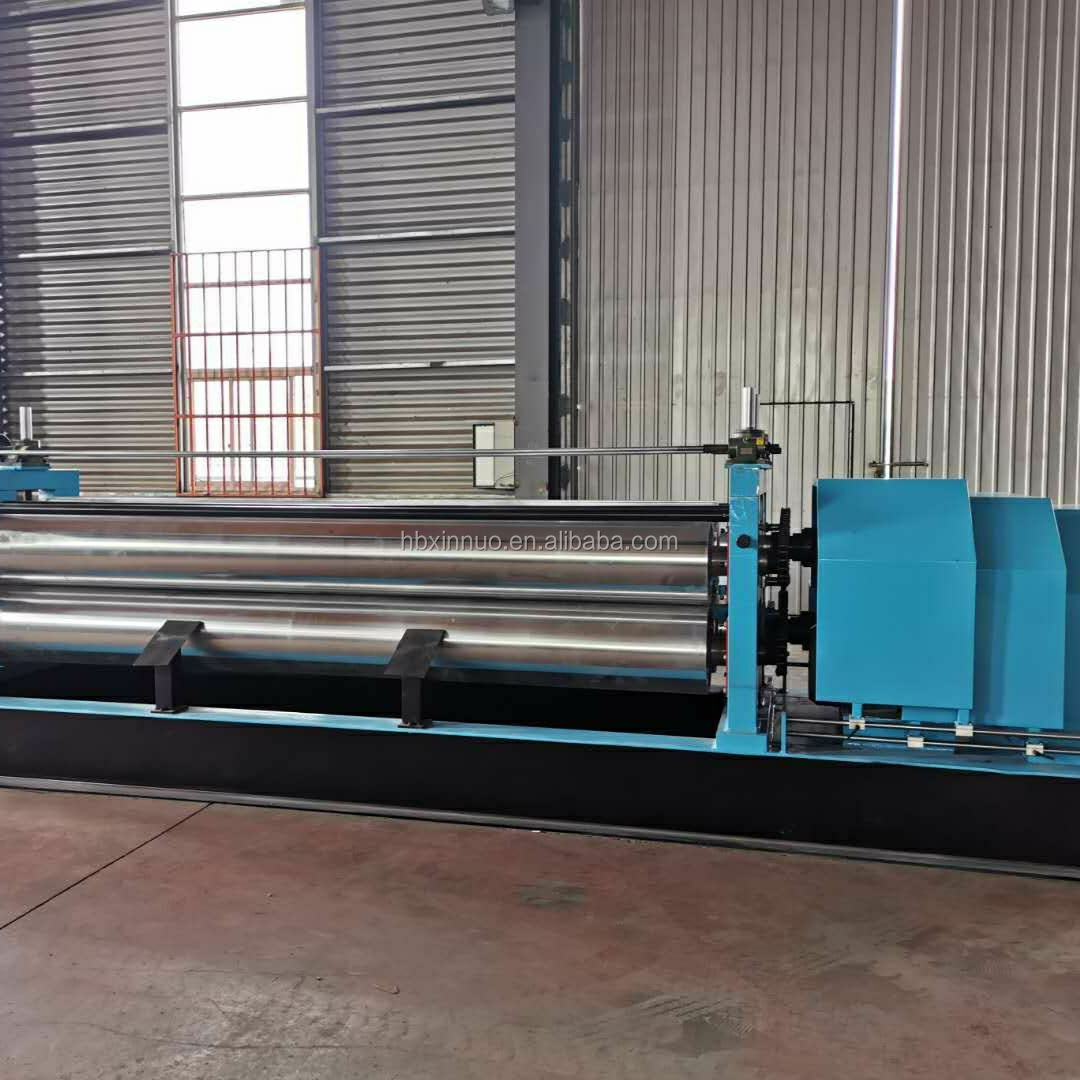

- Multiple cylindrical rollers for precise forming

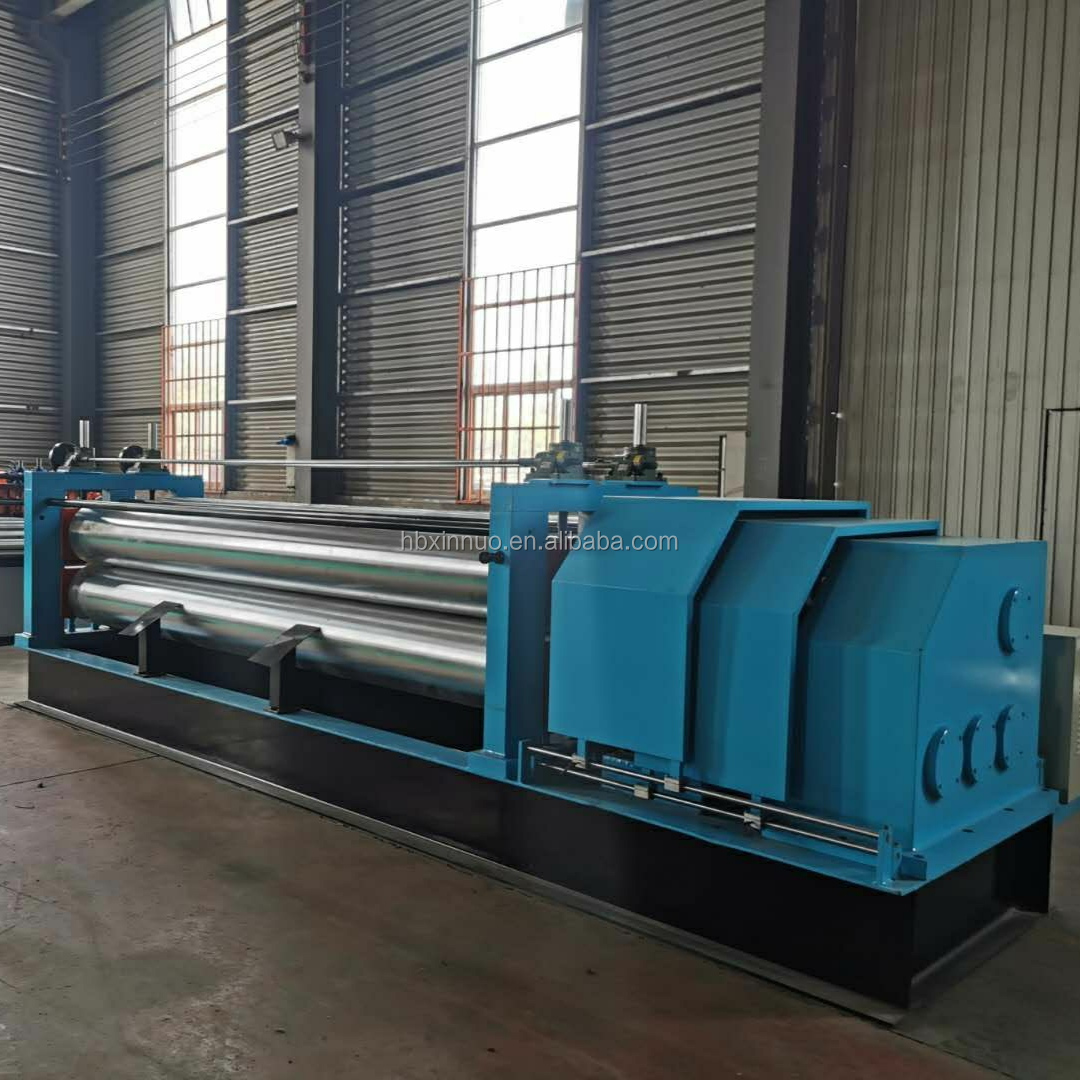

- Hydraulic system for consistent pressure

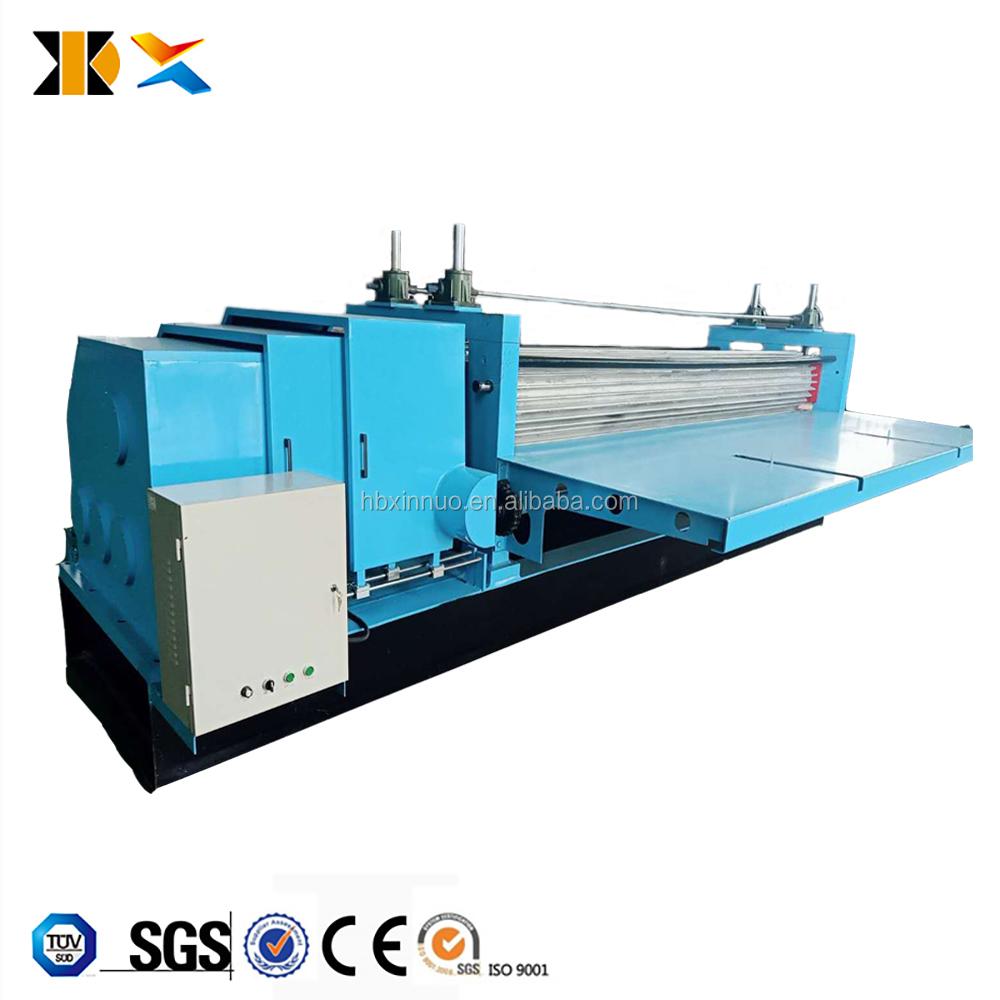

- Advanced electrical control system
- Integrated safety features with emergency stops
- Shot-blasted and precision-milled frame

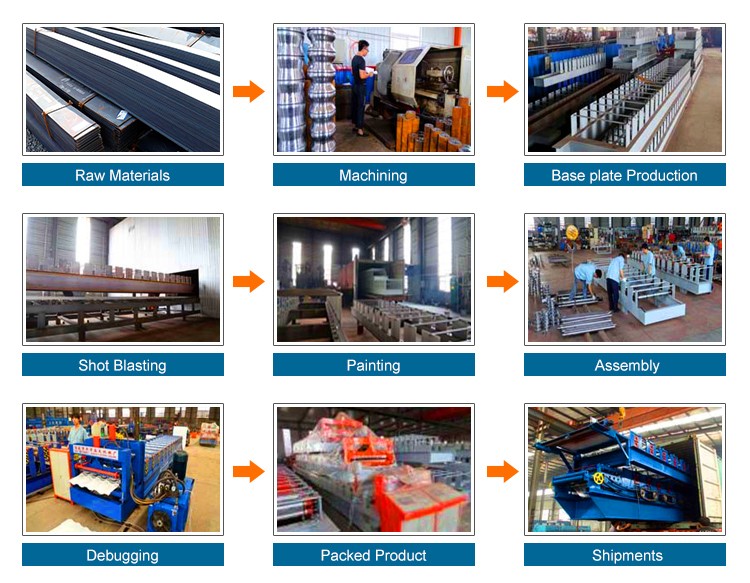

Manufacturing Process
Production Workflow
- Raw Material Sourcing
- Precision Machining
- Base Plate Production
- Shot Blasting & Surface Cleaning
- Electrostatic Spray Painting
- Component Assembly
- System Debugging
- Packing and Shipment
Service & Support
- Warranty Period
- 1 Year
- Custom Sourcing
- Yes
