Automatic Width Change Light Keel Roll Forming Machine
This automatic light keel roll forming machine produces light gauge steel keels with variable widths. The machine features robust construction and precise roll forming technology to ensure consistent output.
Technical Specifications
Overview
High-Efficiency Light Keel Production
This automatic width change light keel roll forming machine is engineered for the high-speed, precise production of light gauge steel framing components. It features an advanced automated adjustment system that allows for quick transitions between different keel widths, significantly reducing downtime and increasing manufacturing flexibility. Ideal for high-volume B2B production environments, it ensures consistent quality for drywall and suspended ceiling systems.
Capabilities

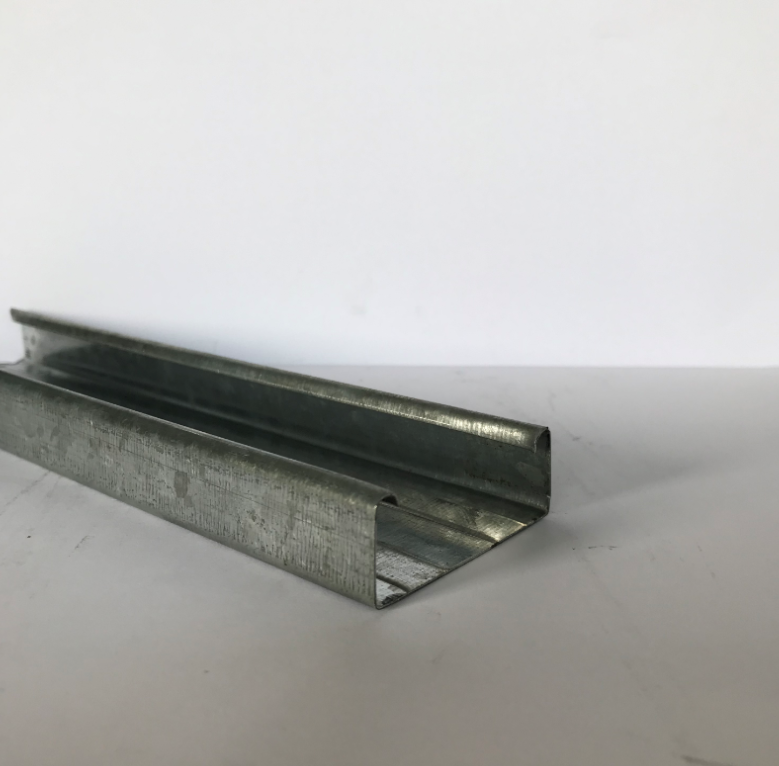

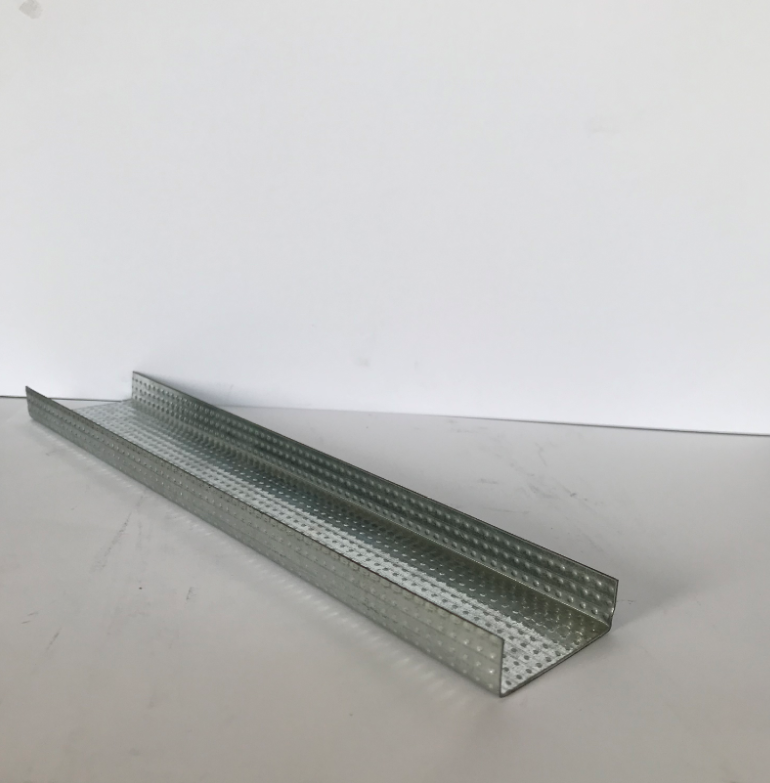

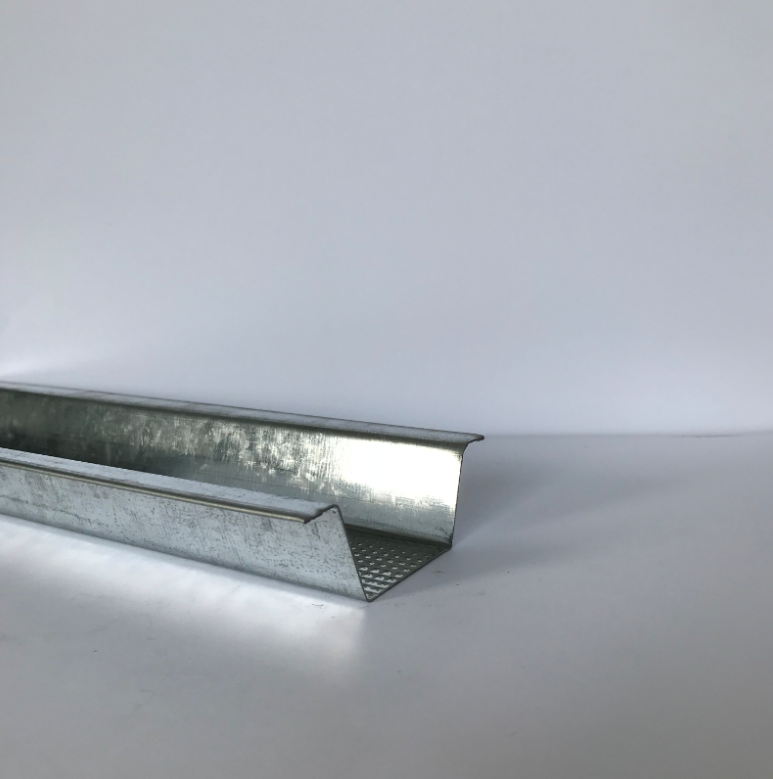

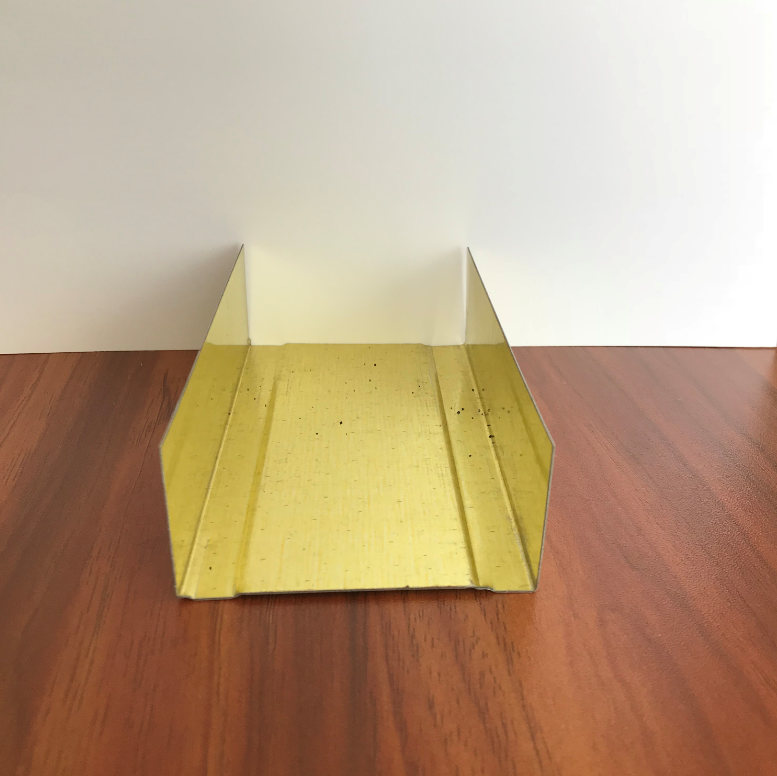

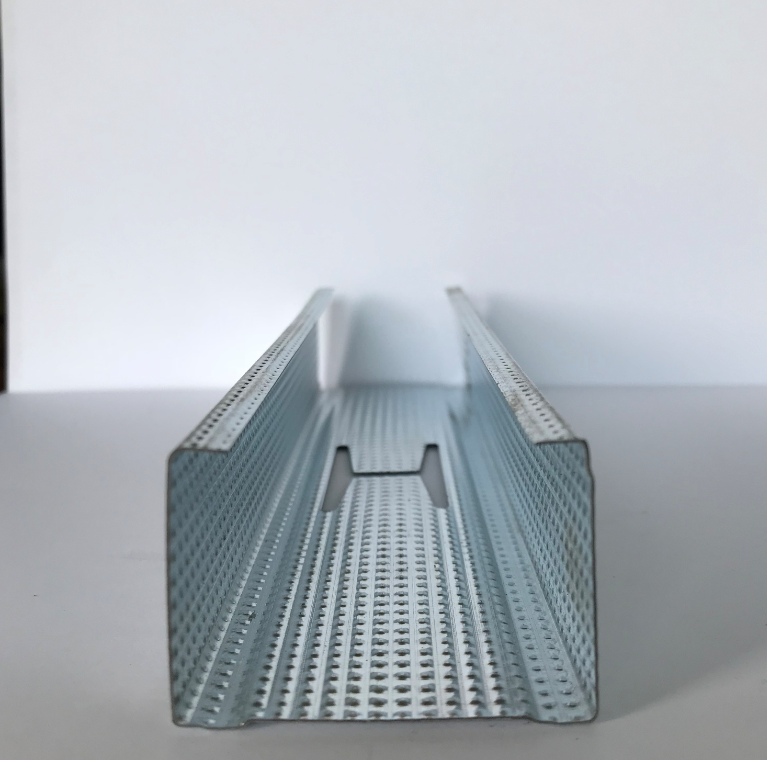

- Supported Profiles
- AngleOmegaStudTrack38 Main Furring50 Furring
Technical Specifications
Forming Speed
30 m/min
Max Speed
- Material Thickness Range
- 0.5mm - 1.2mm
- Coil Width Capacity
- 300 mm
- Compatible Material
- Galvanized strip

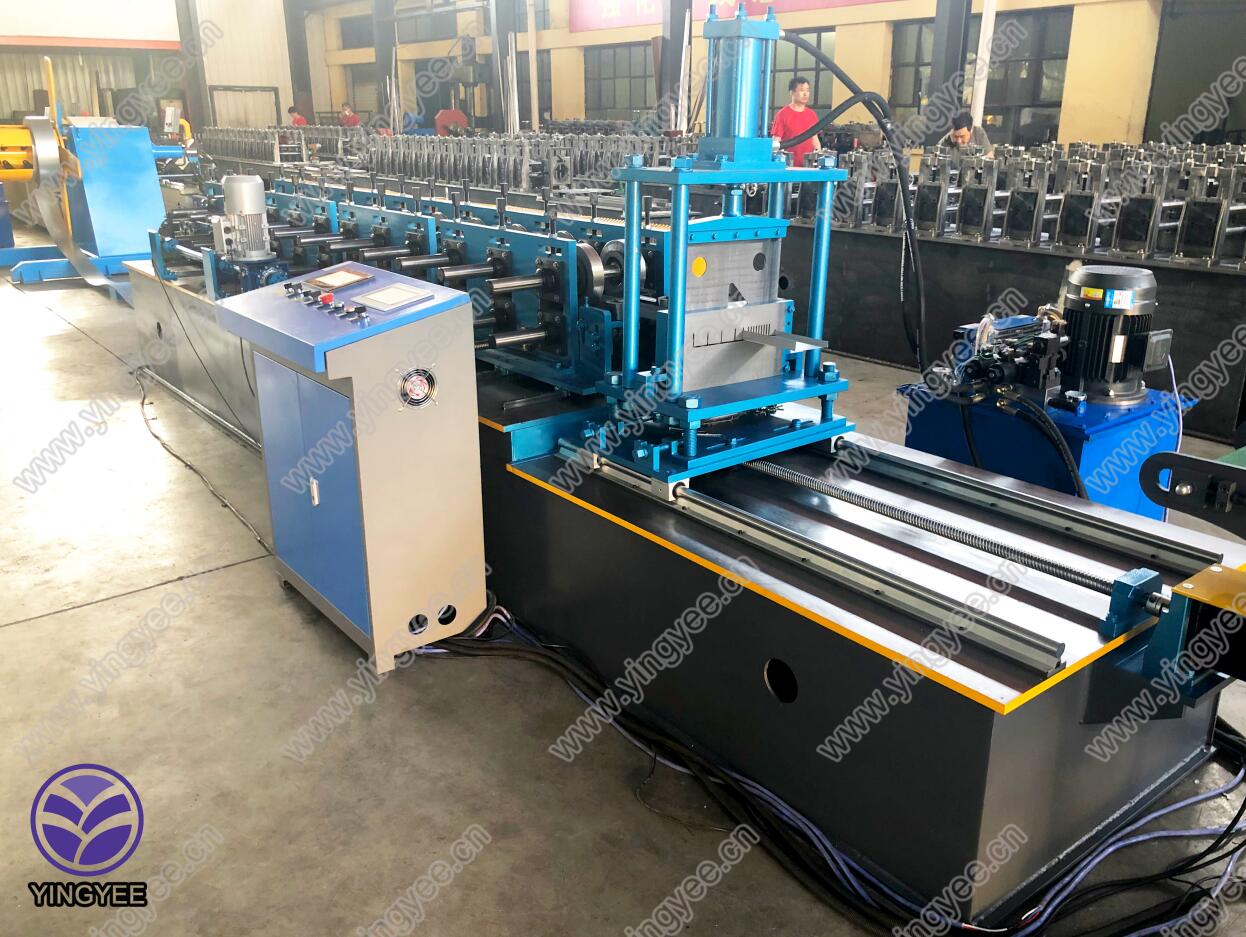

Machine Components
Integrated Systems
- Automatic feeding device
- 10-stand roll forming unit
- Servo tracking hydraulic cutting system
- 1.5kW servo motor
- Hydraulic oil station

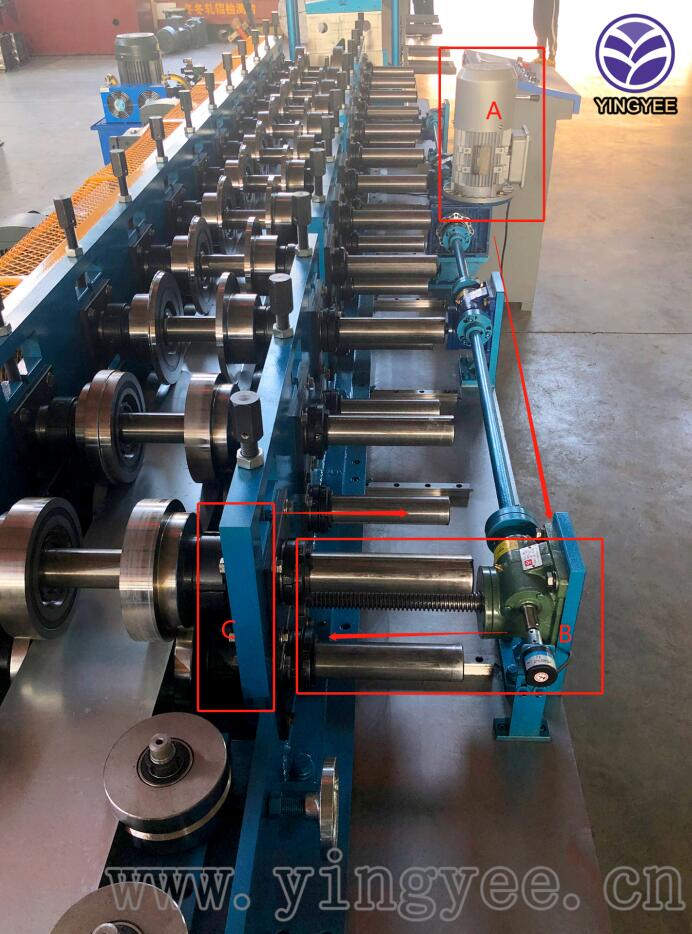

- Automatic change-type transmission motor
- Integrated control system
- Receiving table
Safety & Control
Emergency StopProtective GuardsServo ControlAutomated Width Adjustment
Profile Dimensions
Common Keel Widths
| Profile Width (mm) | Height (mm) | Radius (mm) |
|---|---|---|
| 48 | 8 | R0.5 |
| 62 | 8 | R0.5 |
| 70 | 8 | R0.5 |
| 90 | 8 | R0.5 |
| 100 | 8 | R0.5 |
