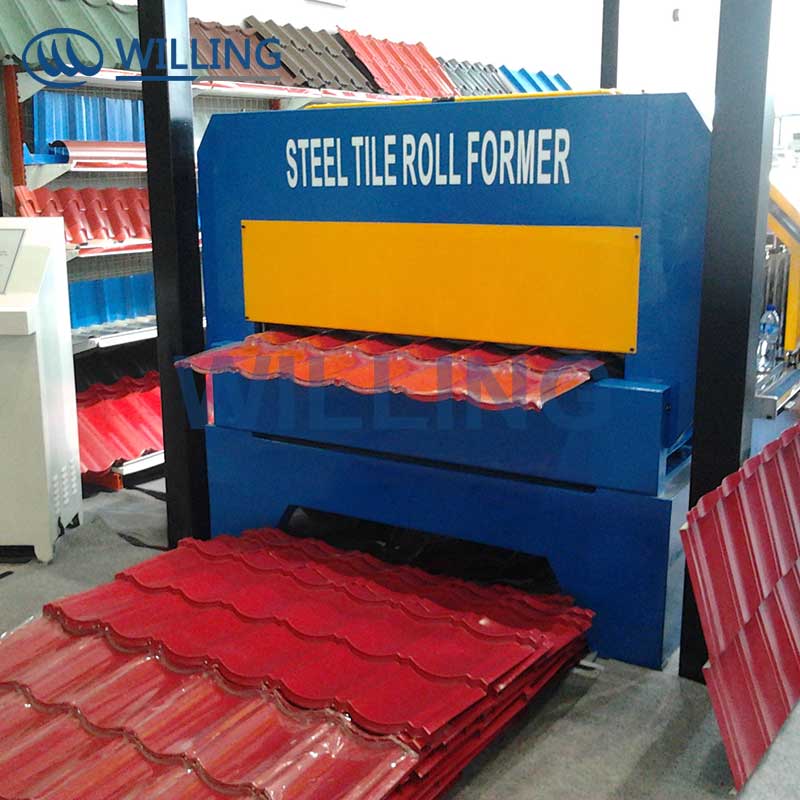

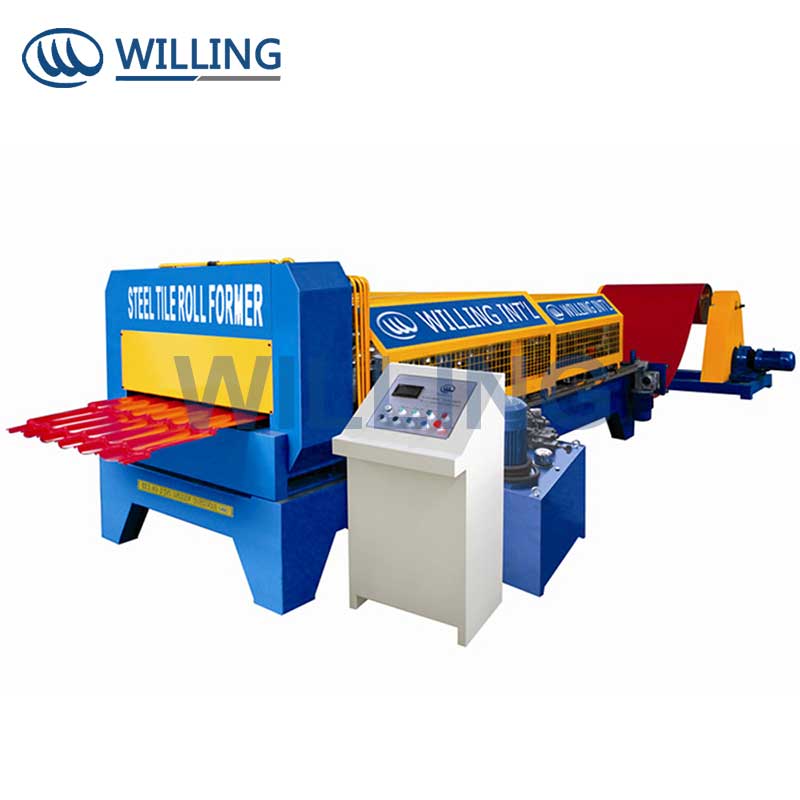

Automatic Wall and Roof Panel Roll Forming Machine
This automatic roll forming machine is designed for manufacturing wall and roof panels. It utilizes a series of shaped rollers to gradually form metal sheets into the desired panel profiles.
Technical Specifications
Overview
High-Efficiency Panel Production
This automatic roll forming machine is engineered for the high-volume production of steel wall and roof panels. It features a robust construction with a precision-engineered chain transmission system and PLC-controlled automation to ensure consistent quality and dimensions. Designed for durability and ease of use, it integrates a touch screen interface for streamlined operation in industrial environments.
Key Performance
Key Performance Metrics
6 m/min
Max Forming Speed
5.5 kW
Main Motor Power
12 Mpa
Hydraulic Pressure
Material Specifications
- Compatible Materials
- Pre-painted Steel CoilGalvanized Steel Coil
- Material Thickness
- 0.3 - 0.6 mm
- Yield Stress Range
- Q235 - 345 Mpa
Technical Configuration

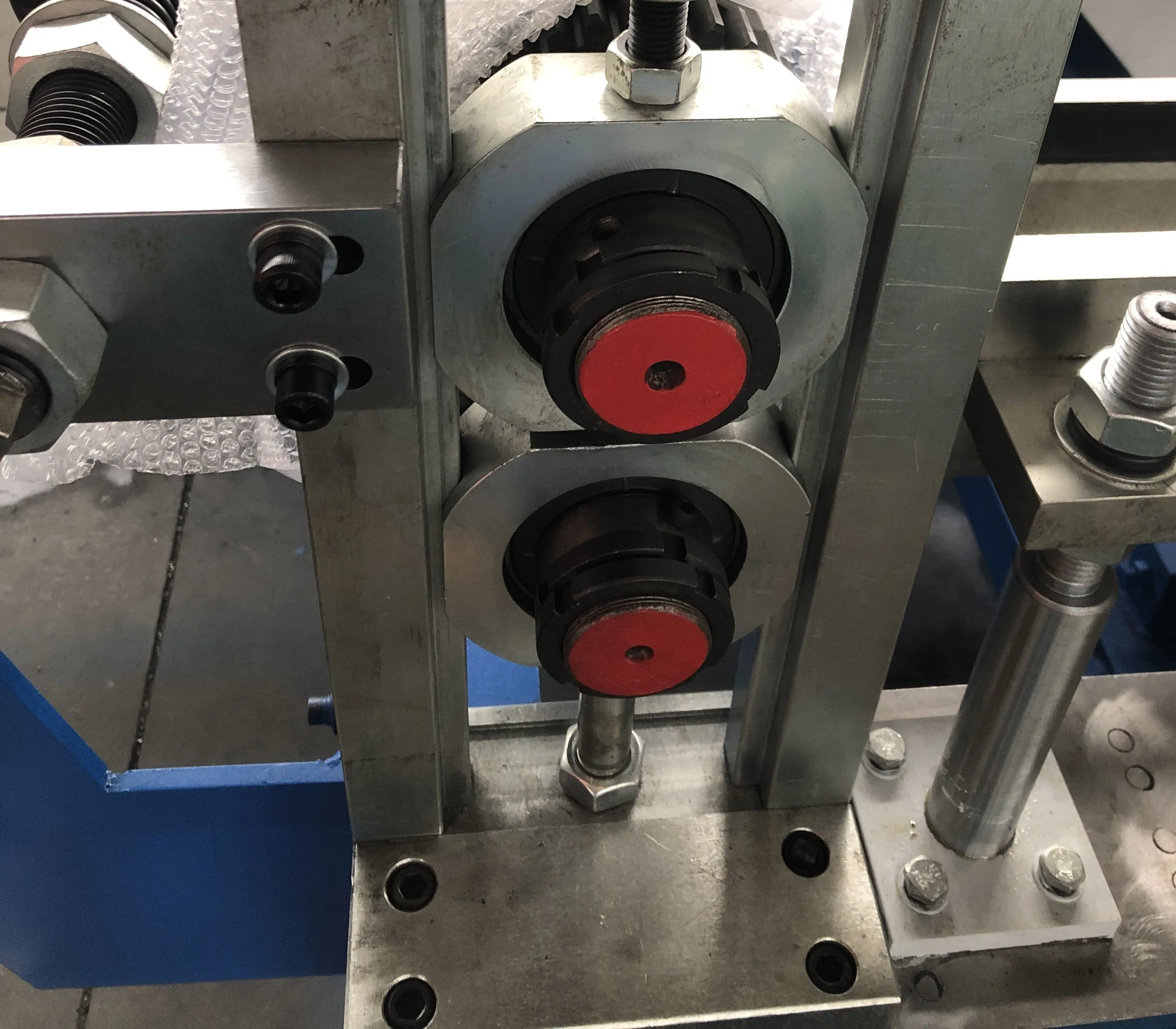

- Roller Material
- #45 steel with hard chrome treatment
- Roller Driven Type
- Chain transmission
- Control Unit
- PLC with Touch Screen and Button interface
- Hydraulic Station Power
- 5.5 kW
Physical Characteristics
- Machine Dimensions (L*W*H)
- 8000 x 1500 x 1500 mm
- Total Weight
- 8000 kg
Compliance & Quality
Quality Standards
CESGSISO 9001

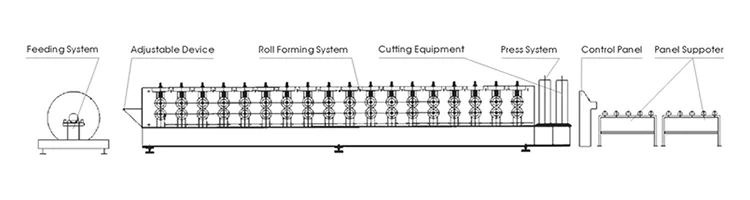

System Components
Integrated Systems
- Feeding System
- Adjustable Alignment Device
- Multi-Station Roll Forming System

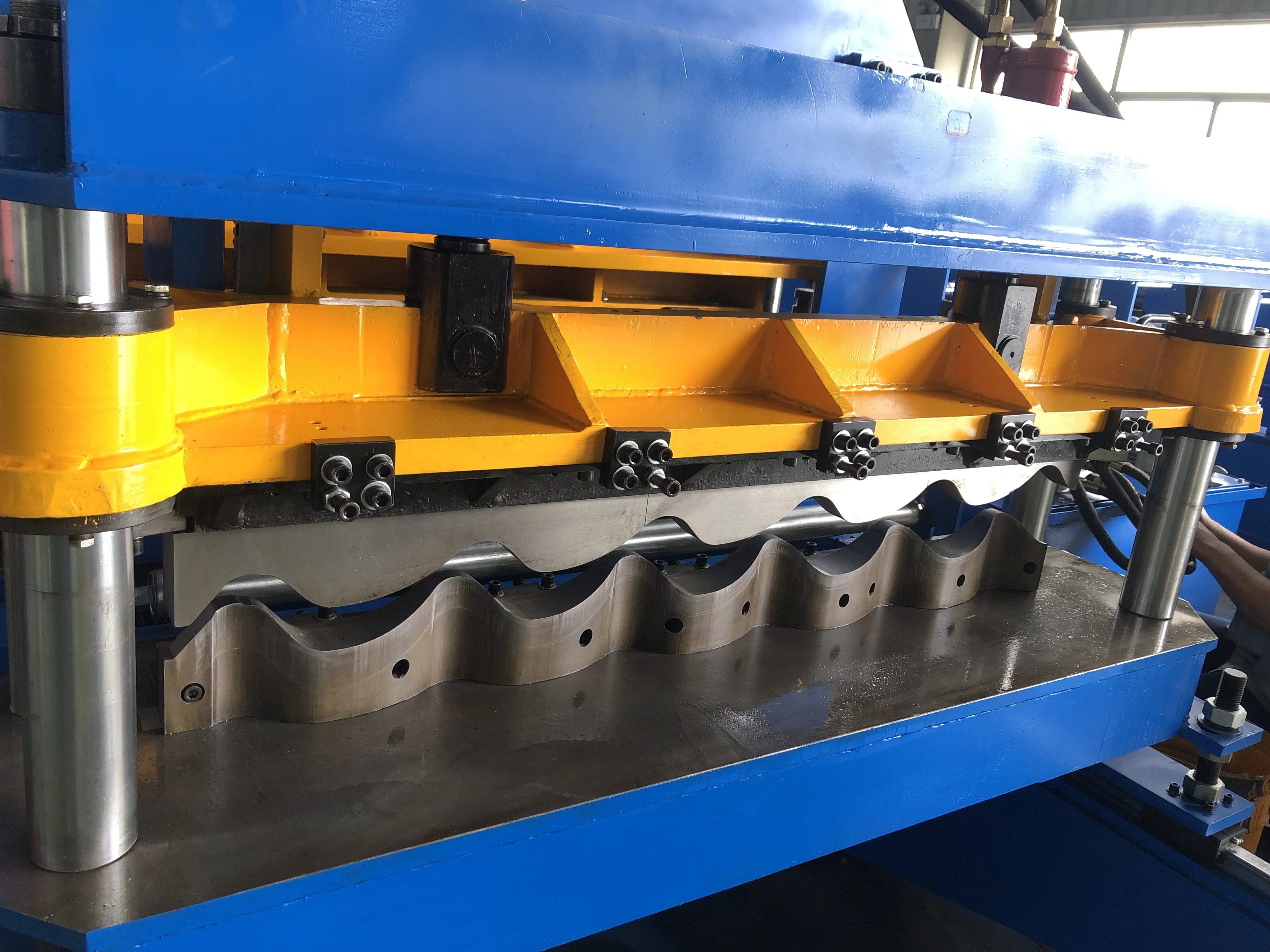

- Hydraulic Cutting Equipment
- Press System
- PLC Control Panel
- Panel Supporters
