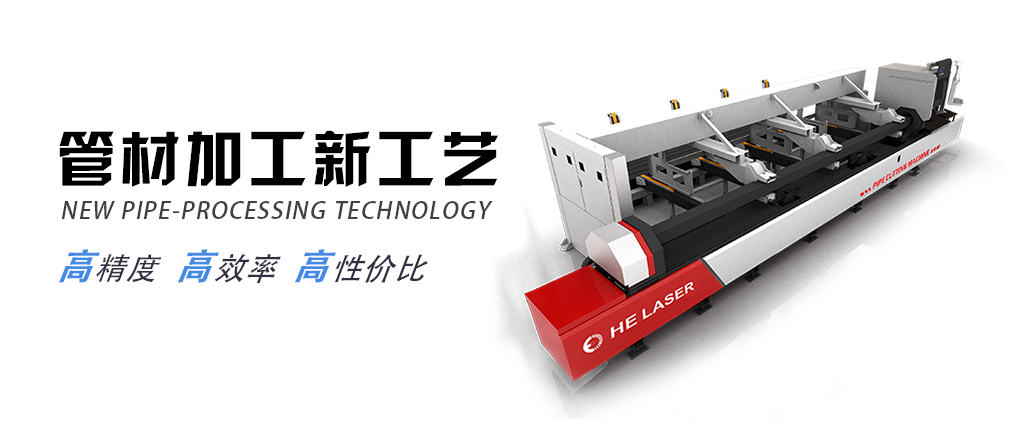

Automatic Tube Laser Cutting Machine
This automatic tube laser cutting machine is designed for high-precision and efficient cutting of various tube profiles. It features an advanced laser cutting head and automated loading and unloading systems.
Technical Specifications
Overview
Professional Automatic Tube Cutting Solution
This automatic laser cutting machine represents a modern upgrade over traditional sawing and punching methods for metal tube processing. It features a fully automated system capable of loading, dividing, calibrating, and detecting pipe materials to ensure high efficiency and cost-effectiveness. Designed for precision, it offers exceptional accuracy and includes a wireless control box for convenient remote operation.
Cutting Capabilities
Maximum Cutting Capacity
| Parameter | Value |
|---|---|
| Max Tube Length | 6m |
| Max Round Tube Diameter | 220mm |
| Max Square Tube Size | 155mm x 155mm |
| Max Material Thickness | 6mm |
- Laser Output Power
- 500W700W1000W1500W2000W2500W3000W4000W
Precision & Performance
Accuracy Metrics
0.05 mm
Axial Accuracy
0.03 mm
Repeat Accuracy
Technical Specifications
- Power Requirements
- 380V/50Hz
- Max Loading Pipe Diameter
- 200 mm
Features
Key Features
- Automatic loading, discharging, and calibration
- Wireless remote control box
- High-efficiency automated pipe processing
- Replaces traditional saw cutting and punching
