Technical Specifications
Overview
Advanced Robotic Packaging Solution

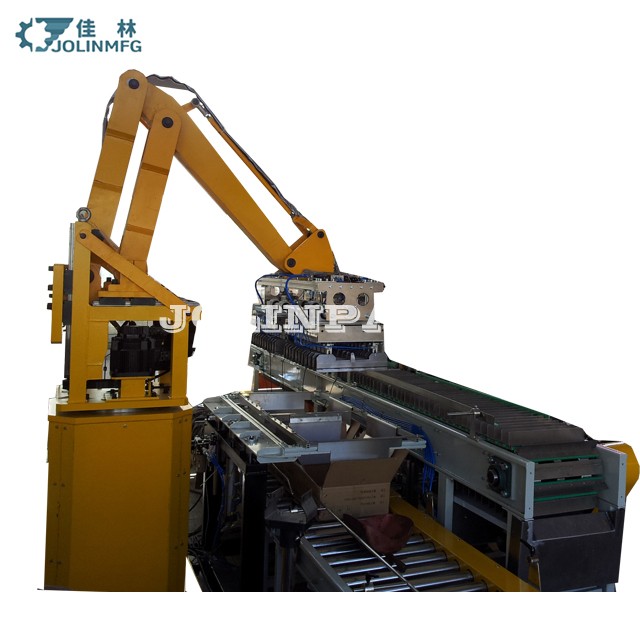

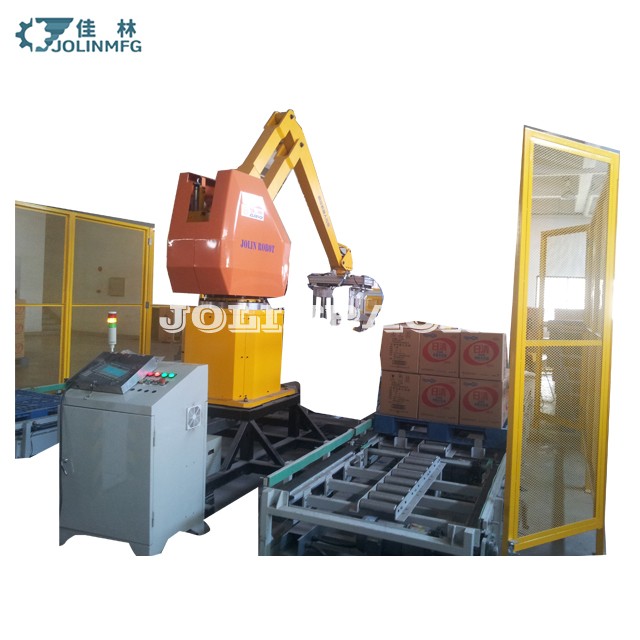

This automatic robotic case packer is engineered to optimize end-of-line operations for rice production facilities. The system integrates group organizing, carton pushing, palletizing, and pallet storage into a seamless, automated workflow. Designed for high-volume environments, it utilizes precise robotic handling and robust control systems to ensure consistent output and reduced manual labor requirements.
Technical Specifications
Key Performance Metrics
30 cartons/min
Max Capacity
10 kW
Power Consumption
75 db
Noise Level
- Electrical Requirements
- 380V AC 50Hz
- Pneumatic Requirements
- 0.5MPa - 0.6MPa
- Air Consumption
- 45 NM3/Hour
System Components
Included System Elements
- Group organizing & bag/carton pushing machine
- Palletizing machine
- Pallet storing machine
- Empty pallet conveyor
- Ready pallet conveyor
- Control System
- PLCTouch ScreenPneumatic System
Physical Dimensions
- Standard Pallet Size
- 1400mm x 1200mm x 160mm
