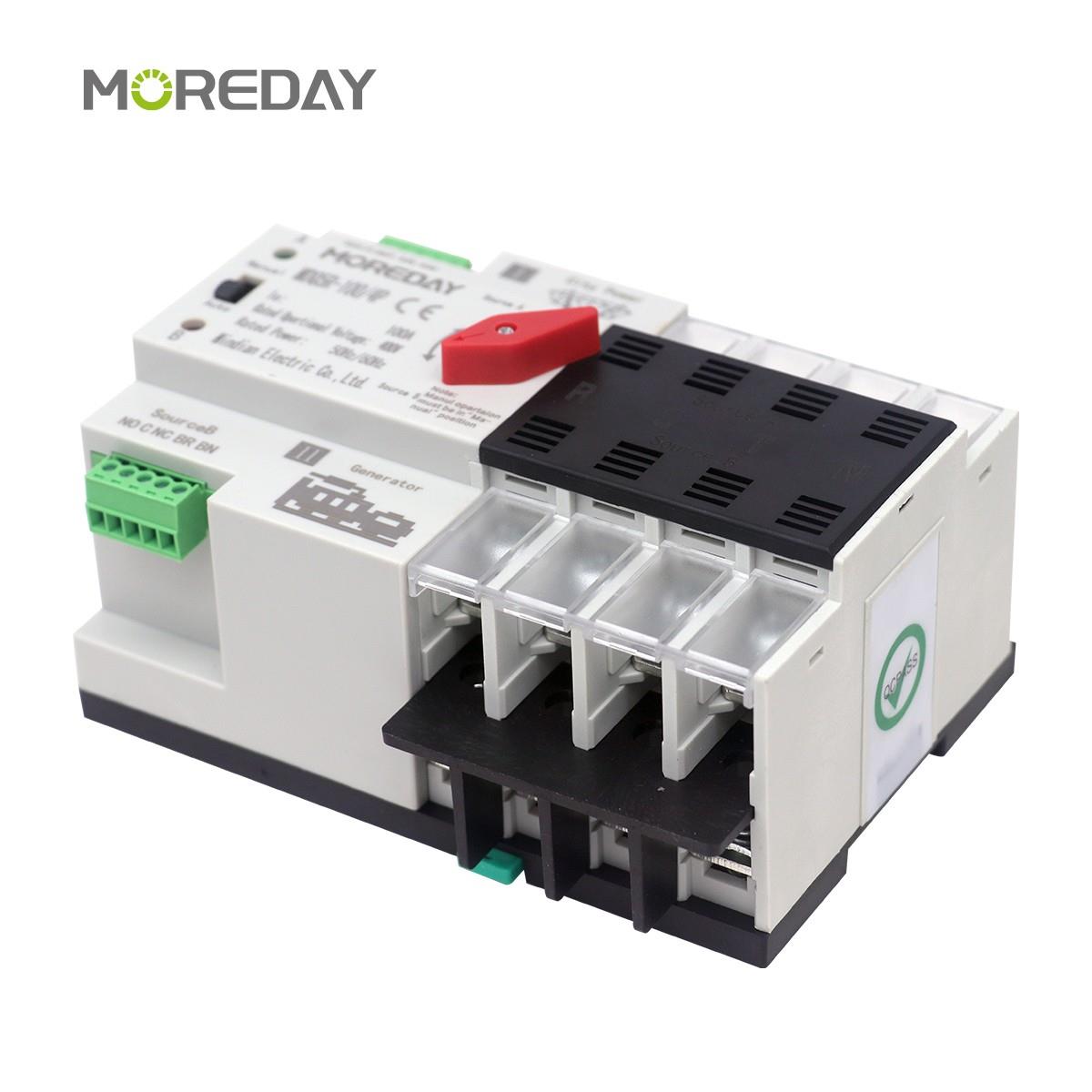

Automatic Power Transfer Switch 4P
This automatic transfer switch (ATS) automatically switches a power source from one supply to another when the primary source fails. It ensures continuous power, with seamless switching to backup sources like generators.
Technical Specifications
Overview

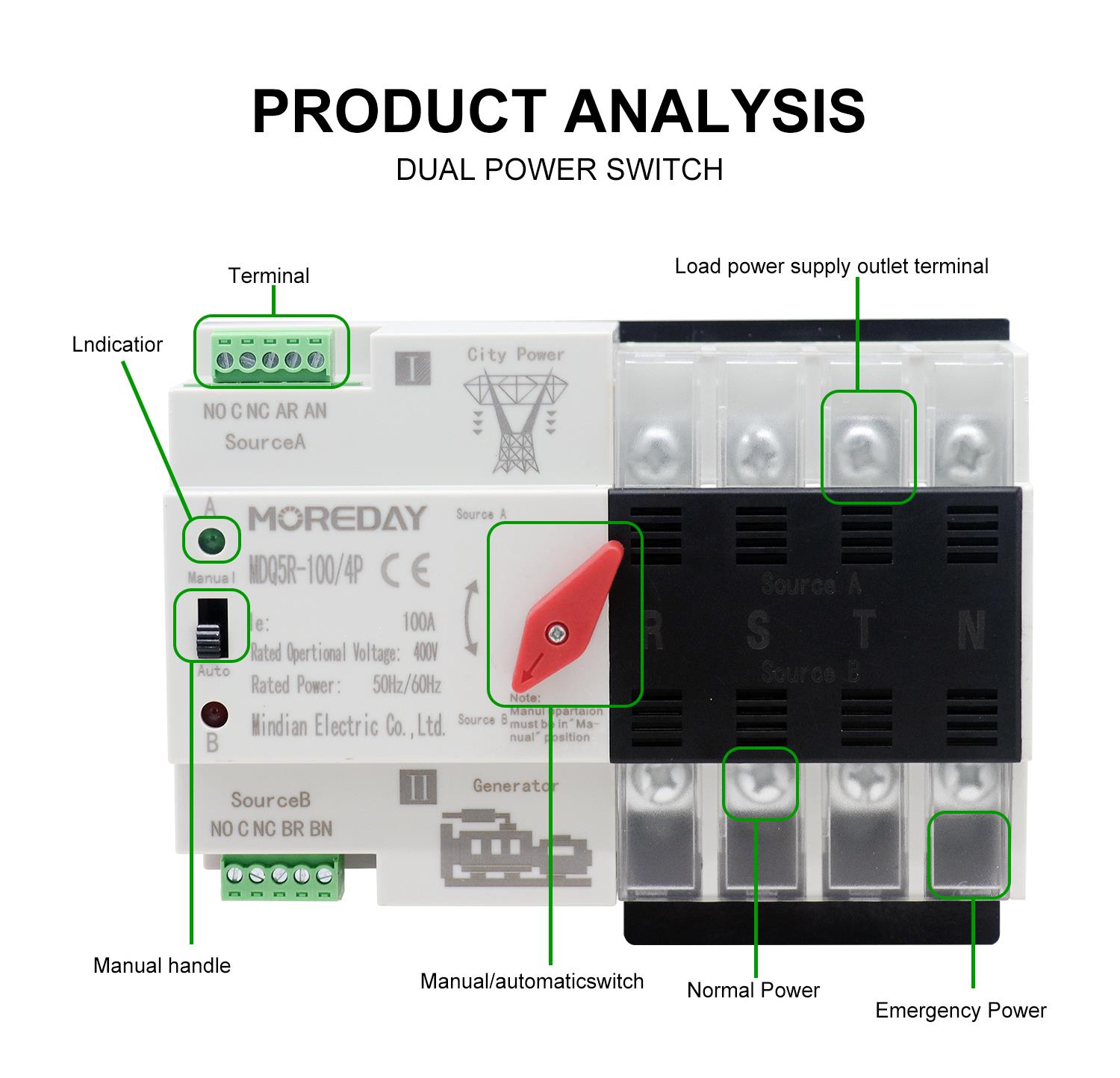

Automatic Power Transfer Switch (ATS)

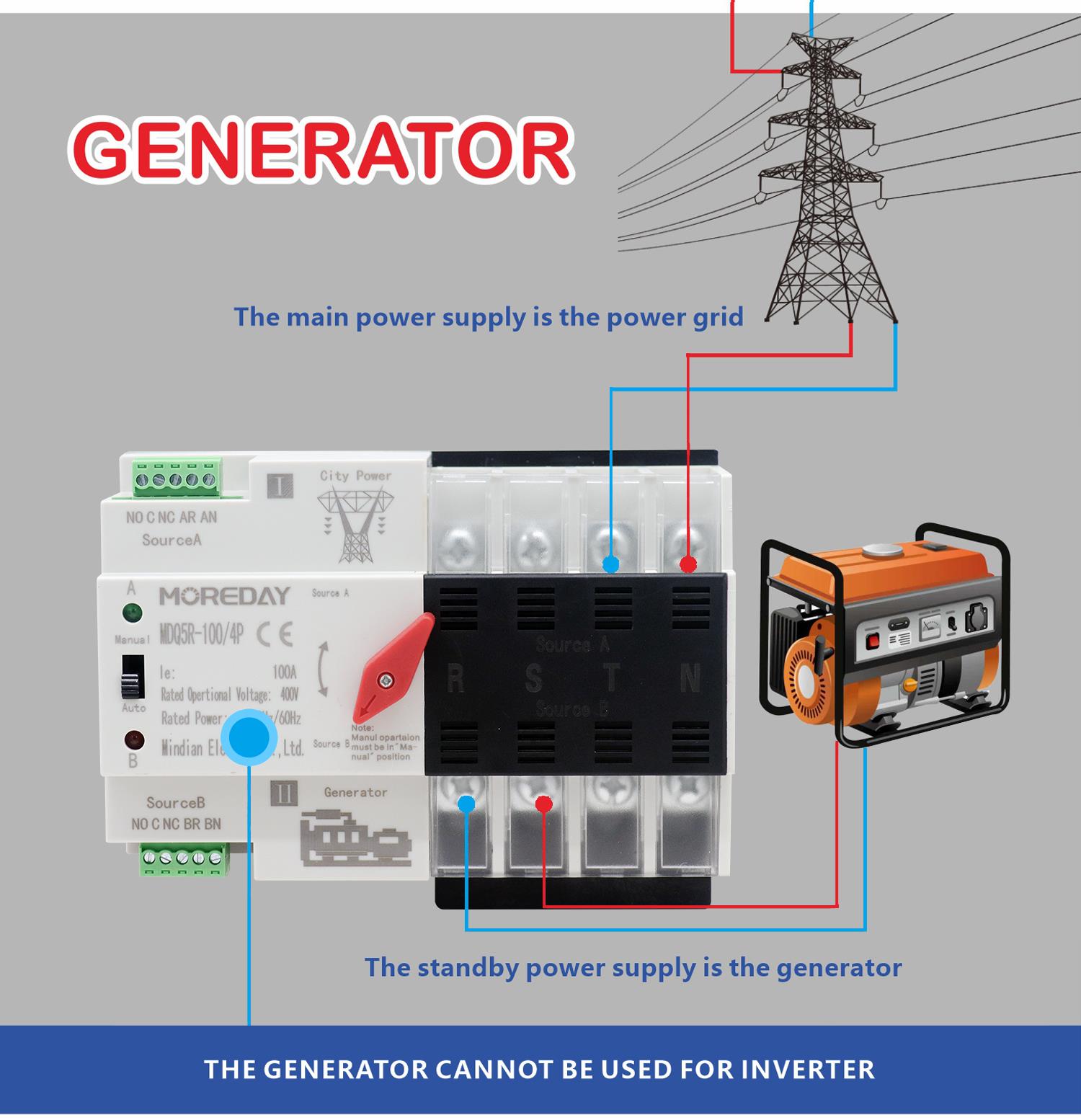

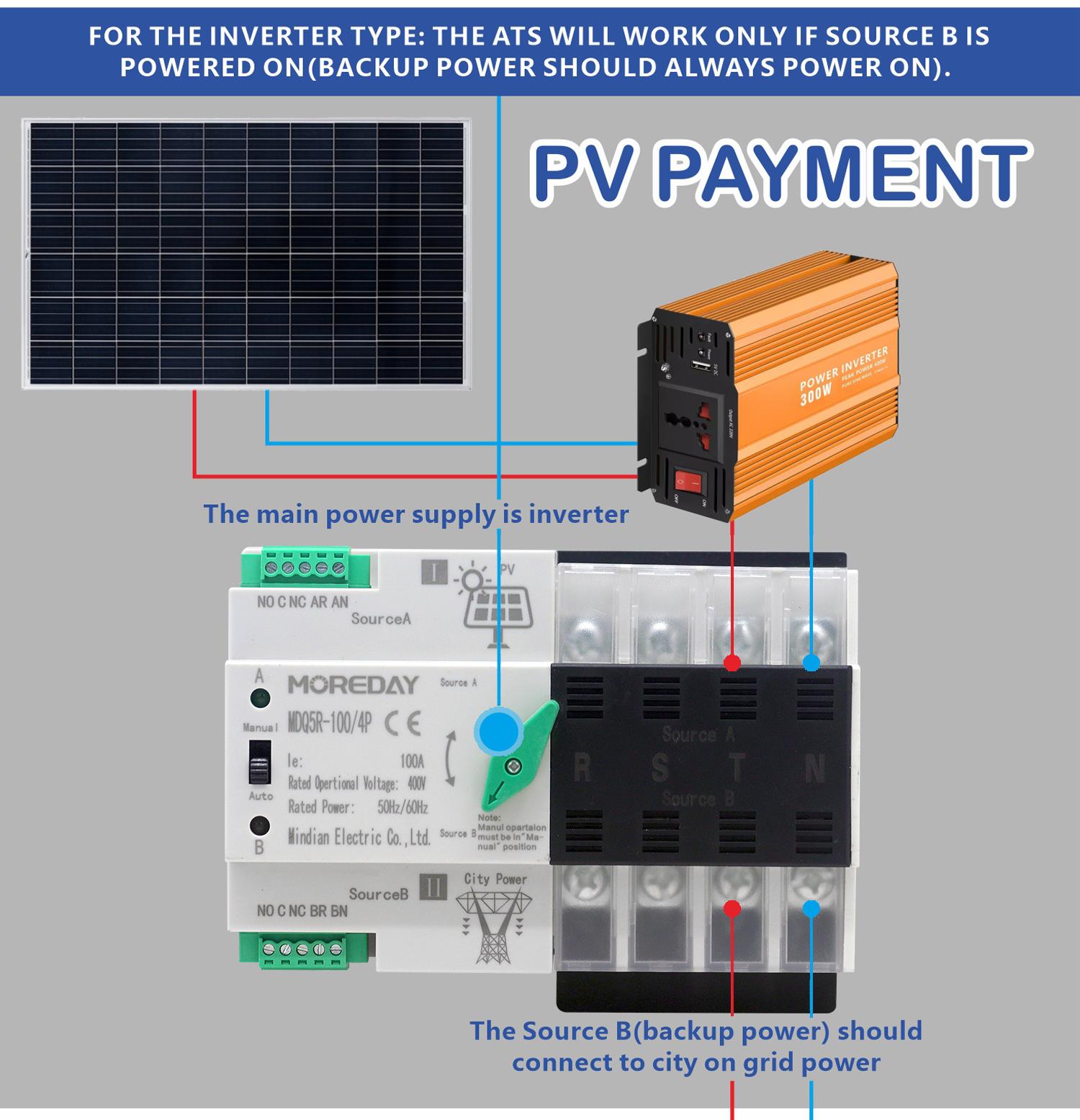

This 4-pole automatic transfer switch is engineered for critical applications requiring seamless power redundancy. It automatically transitions between primary and backup power sources, such as utility grids and generators, to prevent interruptions in mission-critical infrastructure like data centers and healthcare facilities. Designed for reliability and high-speed operation, it ensures continuous power supply even during unexpected outages.
Technical Specifications
Voltage Ratings
400 V
Rated Working Voltage
690 V
Rated Insulation Voltage
8 KV
Rated Impulse Withstand
Performance Metrics
| Metric | Value |
|---|---|
| Switching Time | <30ms |
| Action Time | <30ms |
| Short-circuit Current (Iq) | 50KA |
| Operating Frequency | 50Hz |
- Rated Current Options
- 32A40A50A63A100A125A

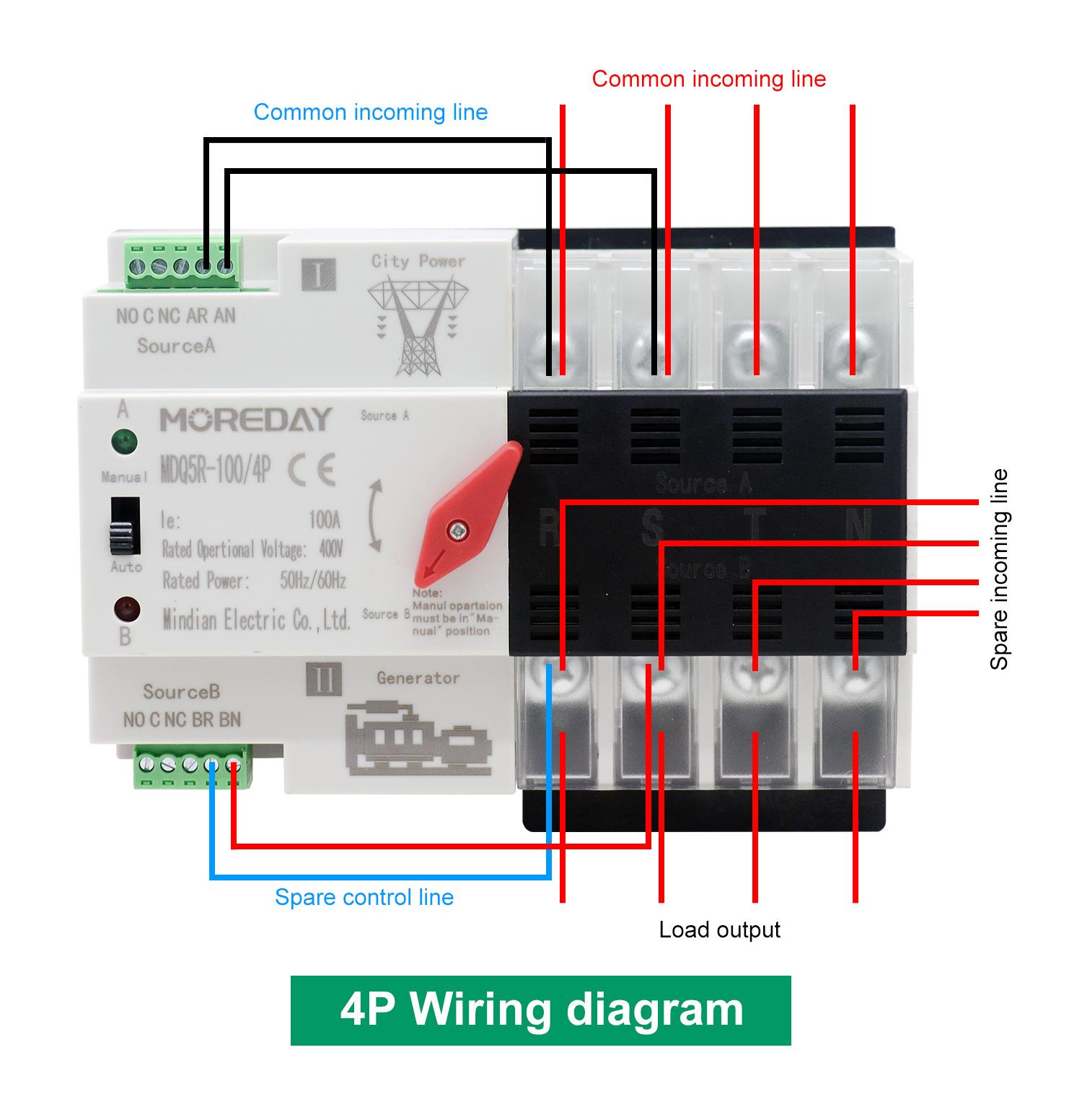

Installation & Configuration
Supported Pole Configurations
2P3P4P
Weight by Configuration
- 2P: 1.7 kg
- 3P: 2.1 kg
- 4P: 2.6 kg

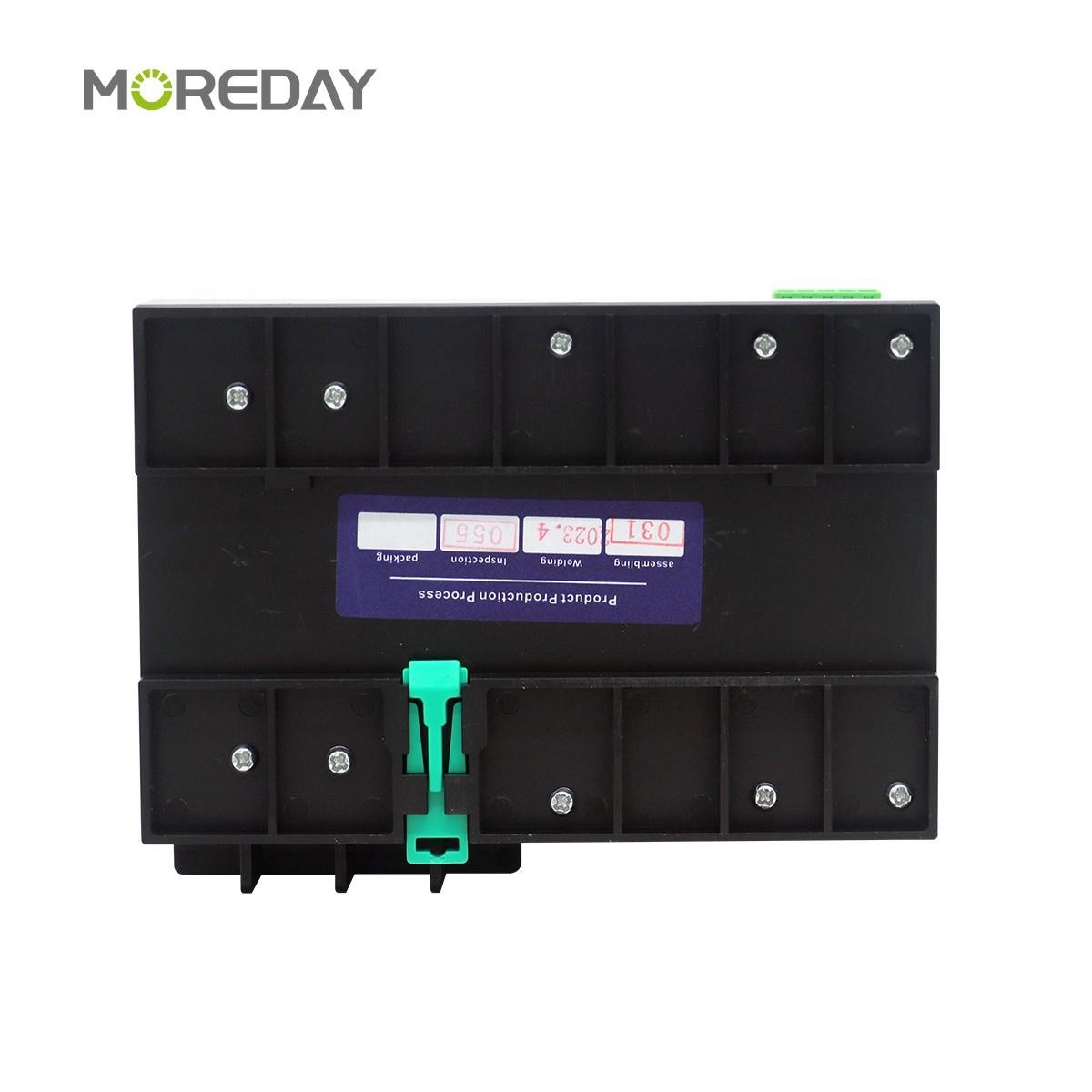

- Installation Method
- Din rail
Control & Ancillary
- Control Circuit
- AC220V, 50Hz (Operating range: 85% - 110% Us)
- Ancillary Circuit Capacity
- Two isolated relays, 2 groups passive switch contact (AC220V, 5A)
