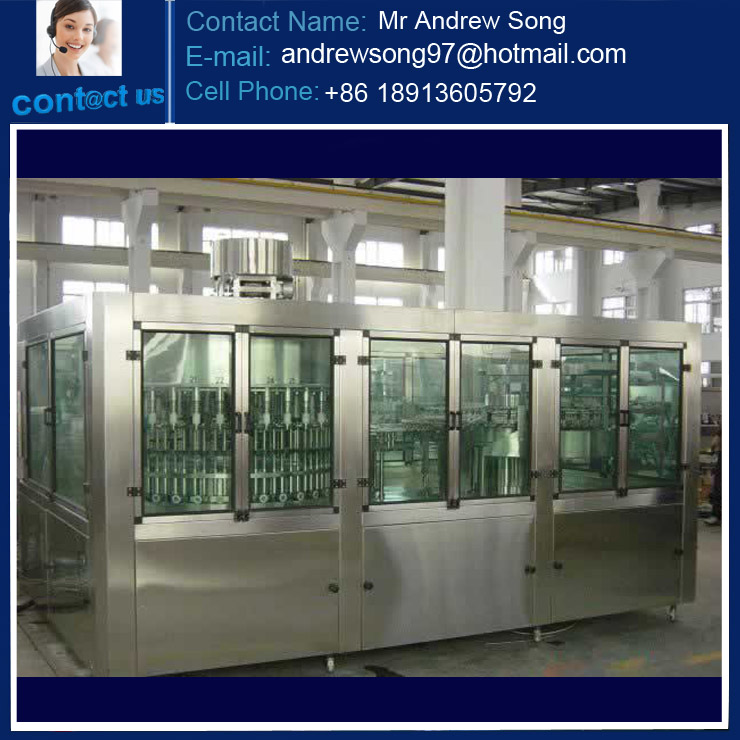

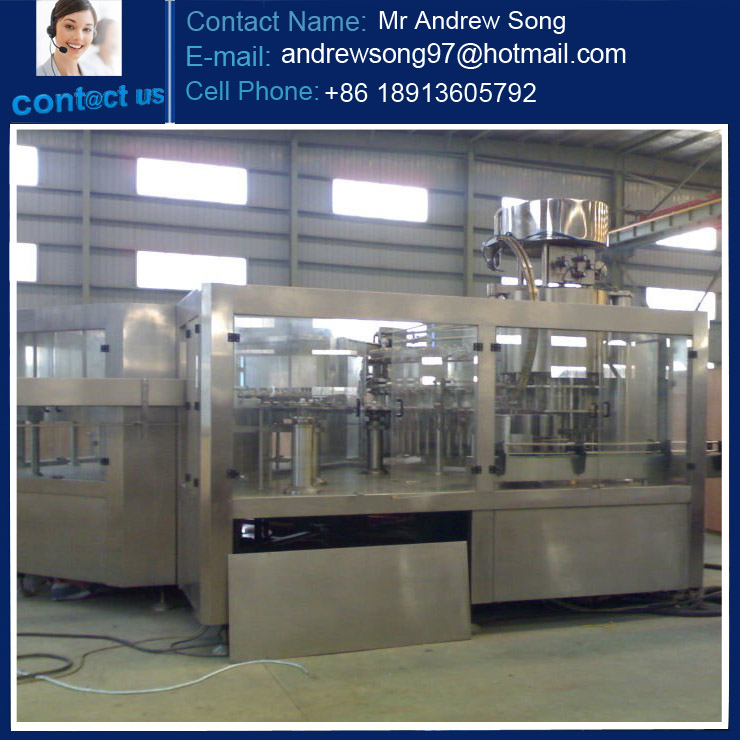

Automatic PET Bottle Mineral Water Bottling Line
This automatic line fills PET bottles with mineral or purified water in volumes from 200ml to 2000ml. Different models provide outputs ranging from 2000 to 24000 bottles per hour.
Technical Specifications
Overview
Automated Bottling Solution
The CGF series is an automated bottling line designed for mineral and purified water production in PET or plastic bottles. Utilizing gravity and micro-pressure filling technology, this system ensures high efficiency and stability across a wide range of production speeds. With integrated programmable logic controllers (PLC) and advanced sensor technology, it offers a reliable, user-friendly solution for beverage manufacturing.
Technical Specifications
- Filling Method
- Gravity FillingMicro-pressure Filling
- Compatible Bottle Volume
- 200ml - 2000ml
- Compatible Materials
- PETPlasticGlass (with conveyor modification)
- Control System
- Mitsubishi Programmable Controller (PLC) with Inverter
Performance Metrics
Production Output Range
2,000 BPH
Min Output
24,000 BPH
Max Output
Model Comparison
Model Specifications
| Model | Capacity (500ml) | Washing Heads | Filling Heads | Capping Heads | Weight (kg) | Power (kW) |
|---|---|---|---|---|---|---|
| CGF14-12-4 | 4000 BPH | 14 | 12 | 4 | 2,500 | 2.2 |
| CGF16-16-5 | 6000 BPH | 16 | 16 | 5 | 3,000 | 2.5 |
| CGF18-18-6 | 8000 BPH | 18 | 18 | 6 | 4,000 | 3 |
| CGF24-24-8 | 12000 BPH | 24 | 24 | 8 | 4,500 | 3 |
| CGF32-32-10 | 15000 BPH | 32 | 32 | 10 | 6,000 | 5.5 |
