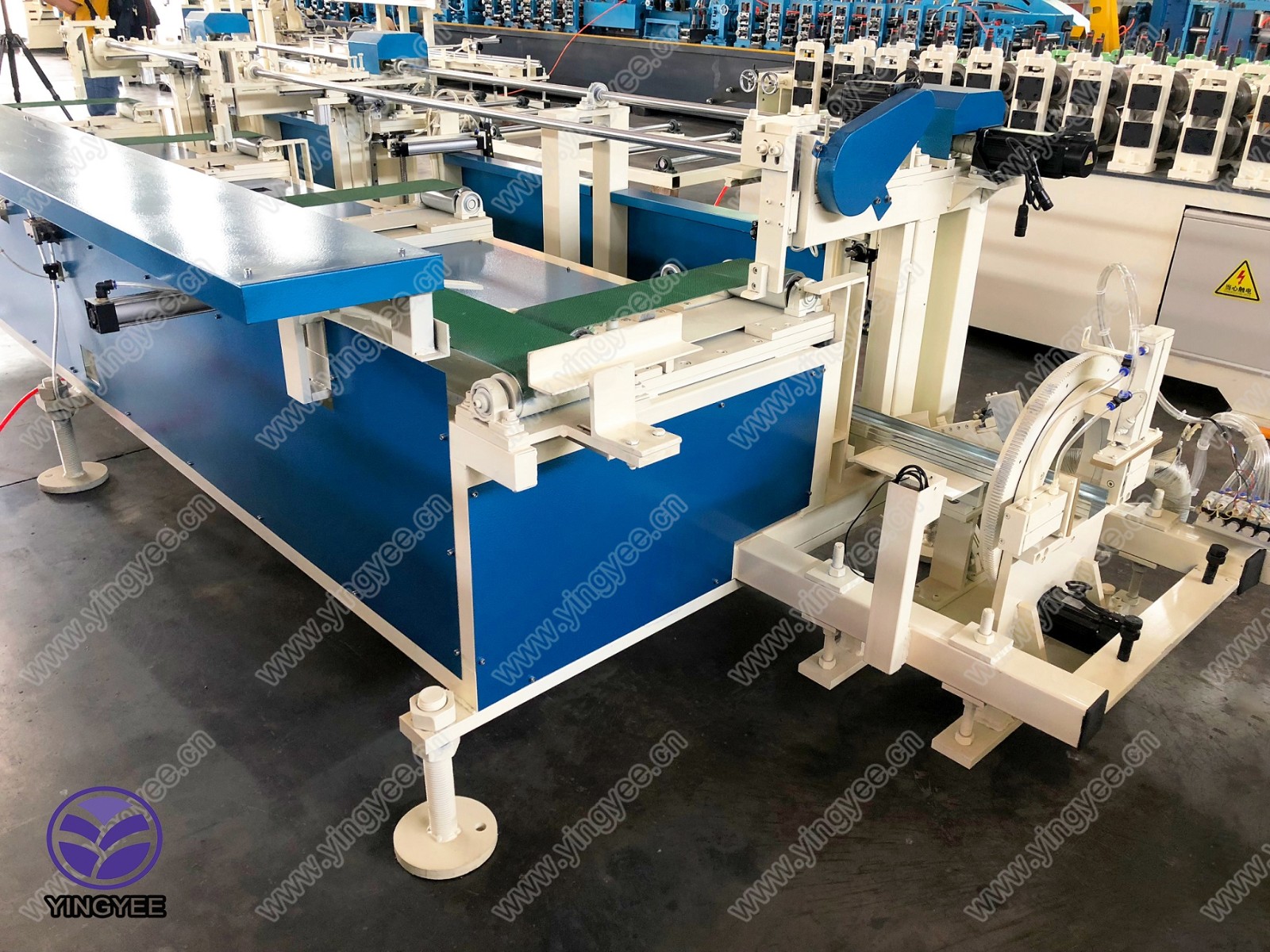

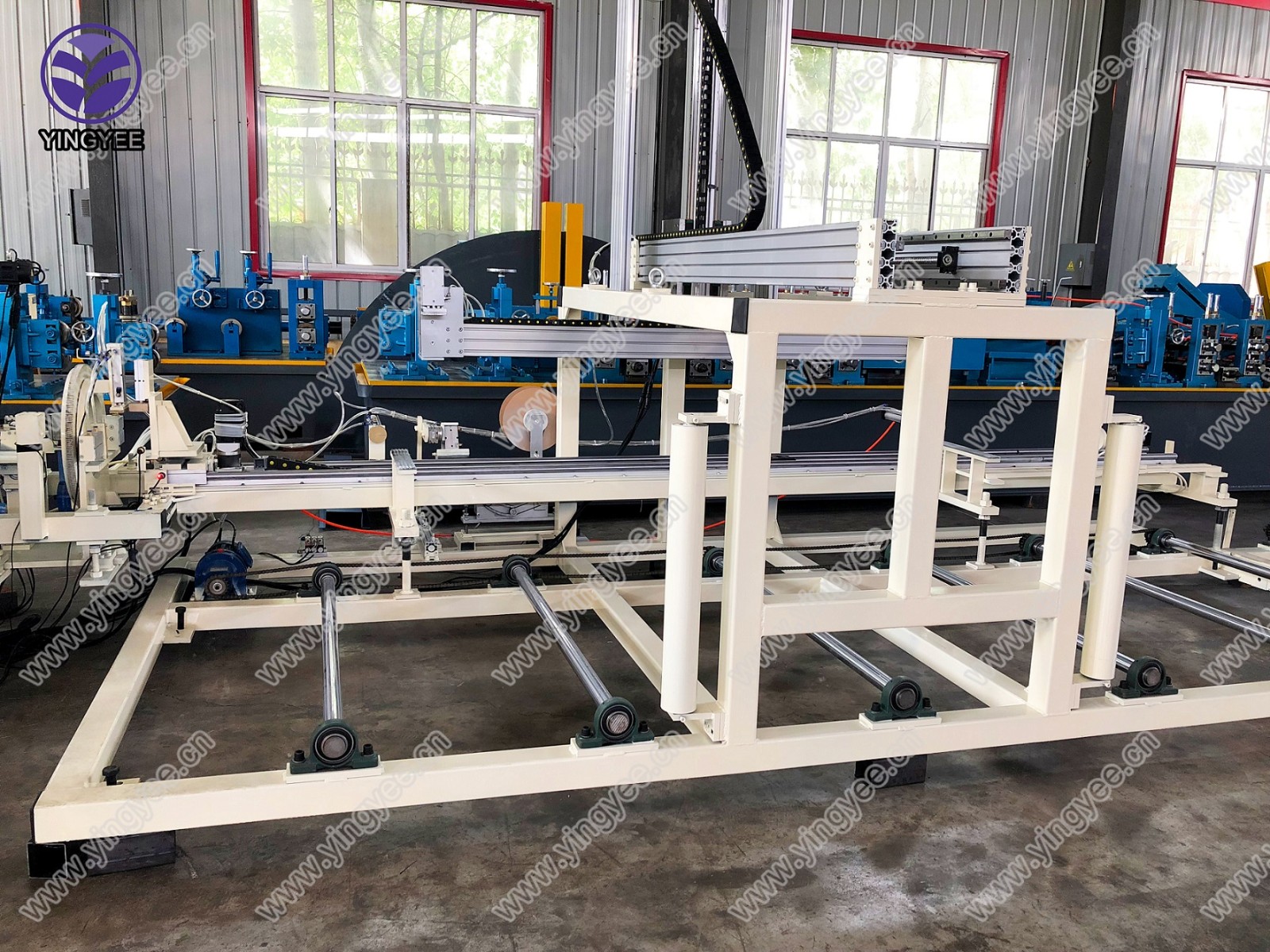

Automatic Light Keel Roll Forming Machine
This automatic machine efficiently produces light gauge steel keels. It integrates forming, cutting, and conveying processes to ensure high output and consistent quality.
Technical Specifications
Overview
High-Efficiency Automatic Light Keel Production
This automatic packing and roll forming system is designed for the high-speed production of light gauge steel profiles used in drywall and ceiling construction. It integrates feeding, forming, cutting, and automated packing into a single seamless workflow, significantly reducing labor costs and material waste. The system is engineered for precision and consistency, making it an ideal solution for high-volume manufacturing environments.
Technical Performance
Packing Speed Performance
95 m/min
Speed (20 pcs/pkg)
70 m/min
Speed (12 pcs/pkg)
50 m/min
Speed (8 pcs/pkg)
Compatibility
- Compatible Forming Machines
- 38/50 Main ChannelStud & TrackDrywall Forming Machine
System Components
Core System Modules
- Turning material and engaging part
- Tape wound part
- Pull material part
- Labeling part
- Stack part
- Electric control part
Technical Specifications
- Hardware Components
- Pneumatic components and actuators utilize high-quality Taiwan-based specialized brands.
Installation Requirements
Floor Space Requirements
| Keel Length | Required Floor Space |
|---|---|
| 3 Meters | 7 Meters |
| 4 Meters | 9 Meters |

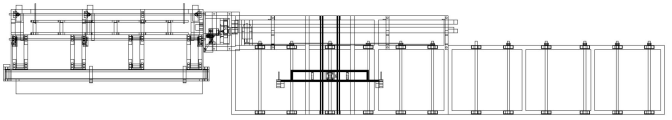

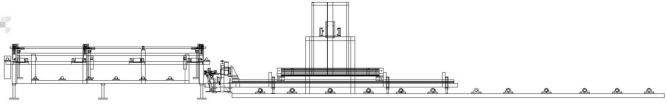

- Machine Dimensions
- L: 8.5m x W: 2.3m
Operational Features
Operational Advantages
Automatic PackingPLC ControlledHigh-Speed CuttingAdjustable FeedingIntegrated Labeling
