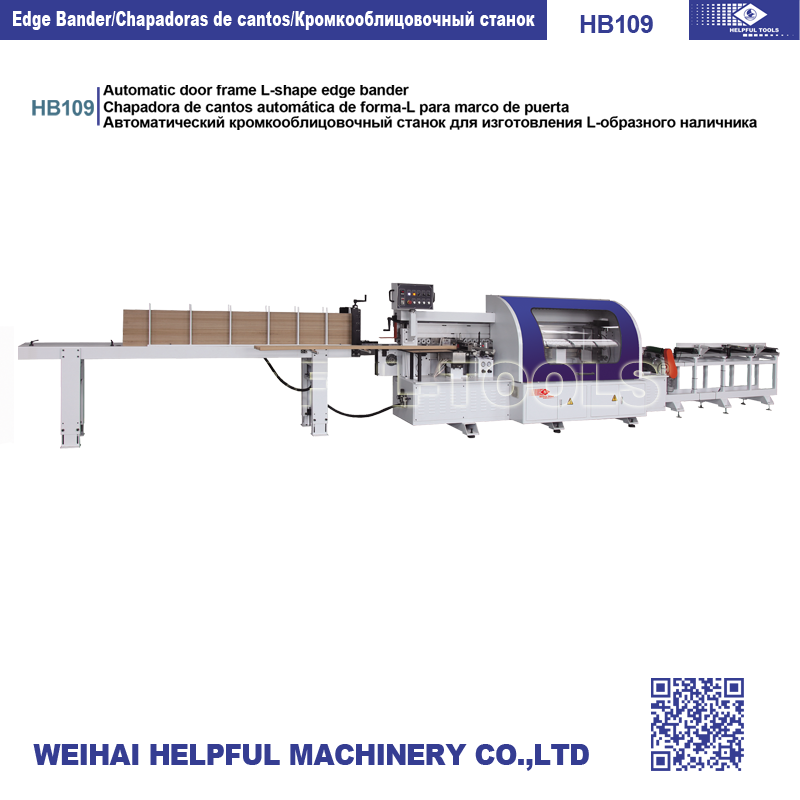

Automatic L-Shape Door Frame Edge Bander
This automatic edge banding machine is designed for applying edge tape to L-shaped door frames. It features automatic feeding, gluing, cutting, and pressing functions for high-quality and efficient edge banding.
Technical Specifications
Overview
High-Efficiency L-Shape Edge Banding
The Automatic Door Frame L-Shape Edge Bander is a specialized woodworking solution designed for high-volume production environments. It automates the entire edge banding process—including feeding, gluing, cutting, and pressing—to ensure precise and consistent application on complex L-shaped profiles. This machine significantly enhances the aesthetic appeal and durability of door frames while optimizing manufacturing efficiency.
Performance Metrics
Key Performance Metrics
24 m/min
Feeding Speed
2,300 kg
Net Weight
800 mm
Min. Panel Distance
Panel Specifications
Panel Capacity
| Parameter | Range/Value |
|---|---|
| Panel Length | 900 - 2400 mm |
| Panel Width | Min. 50 mm (Double R 100 mm) |
| Panel Thickness | 8 - 20 mm |
Edge Banding Details
Edge Strip Specifications
| Specification | Value |
|---|---|
| Strip Width | 15 - 50 mm |
| Strip Thickness | 3 - 5 mm (Option 10 mm) |
Capabilities
Supported Edge Profiles
- Single Radius
- Double Radius
- Rounding
- Mill Inner Slots
- Compatible Materials
- PVCABSVeneer
Machine Configuration
Automated Functions
- Automatic Feeding
- Edge Gluing
- Trimming
- Polishing
- Cutting
- Pressing
Physical Dimensions
- Outline Dimensions
- 11500 * 1350 * 1650 mm
