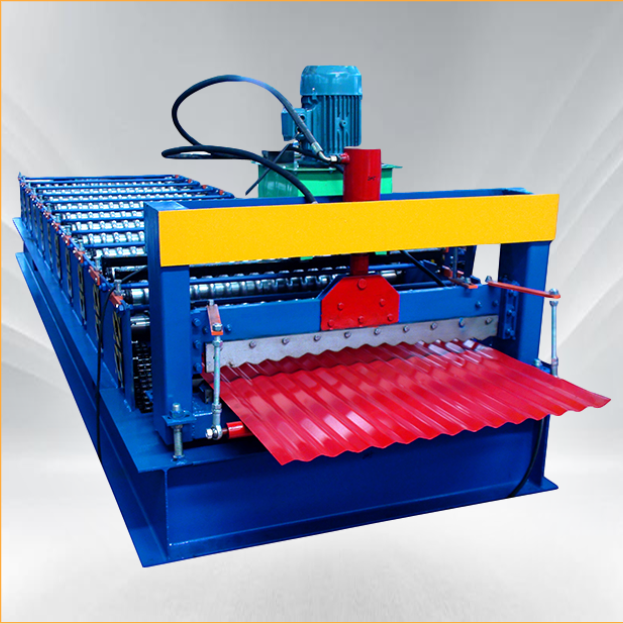

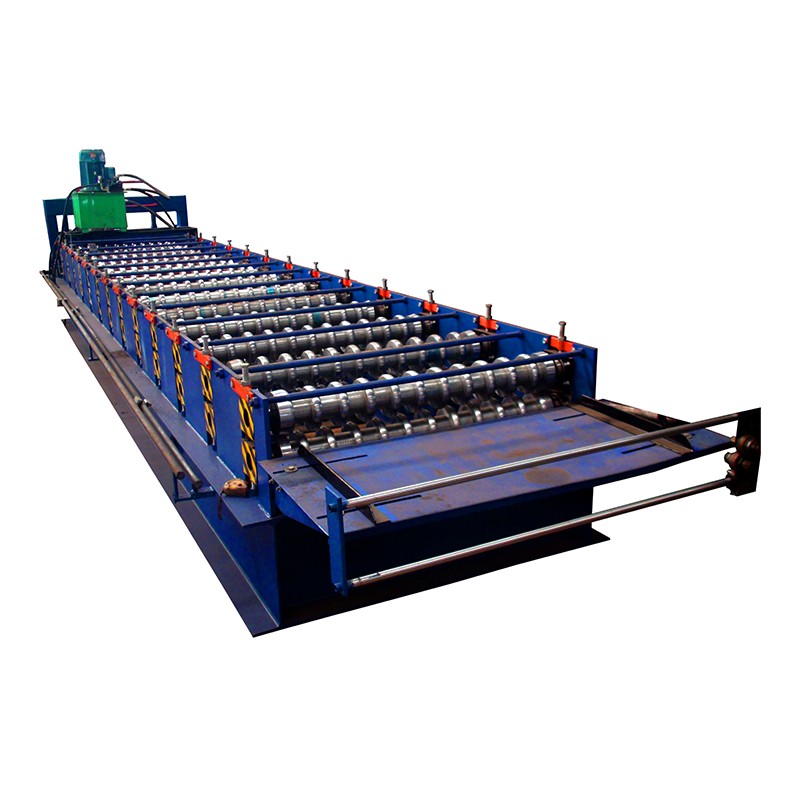

Automatic Corrugated Sheet Roll Forming Machine

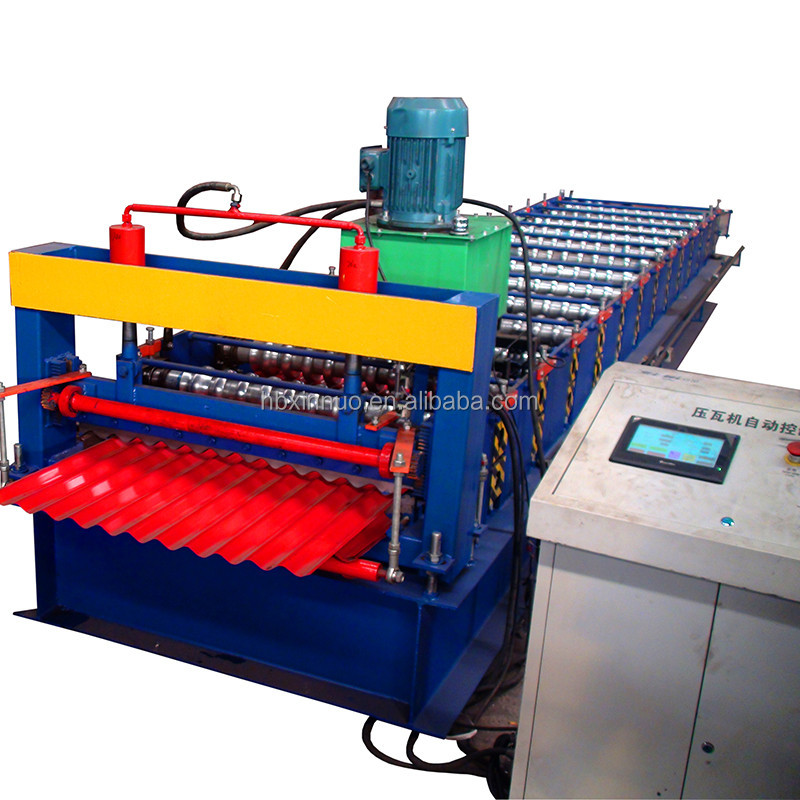

This automatic machine produces corrugated metal sheets. It shapes the metal using a series of rollers and a hydraulic cutting system.
Technical Specifications
Overview
High-Efficiency Corrugated Production

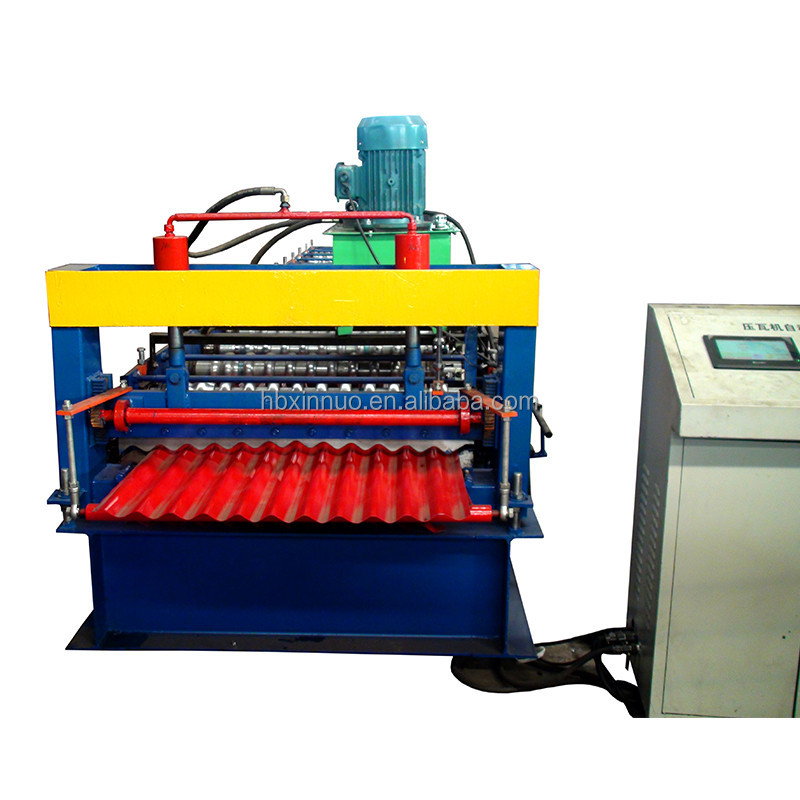

This fully automatic corrugated roll forming machine is engineered for the high-volume production of corrugated metal sheets, ideal for roofing and wall cladding applications. It integrates advanced automation for feeding, forming, and precision cutting, significantly reducing manual labor while ensuring consistent output quality. Built with a robust frame and high-quality rollers, this machine offers durability and precise shaping capabilities for various metal thicknesses.
Technical Specifications
- Max Plate Width
- 1000 mm
- Plate Thickness Range
- 0.3-0.8mm
- Forming Roller Rows
- 14
- Roller Diameter
- 80 mm
- Roller Material
- Carbon Steel 45#
Machine Configuration
- De-coiler Type
- Manual
- De-coiler Load Capacity
- 5 tons
- Automation Features
- Automatic FeedingAutomatic FormingAutomatic CuttingAutomatic Stacking
Applications
Suitable Materials
Color Steel PlateSteelAluminum
Primary Applications
- Roofing Sheets
- Wall Cladding
- Industrial Workshops
- Warehouses
