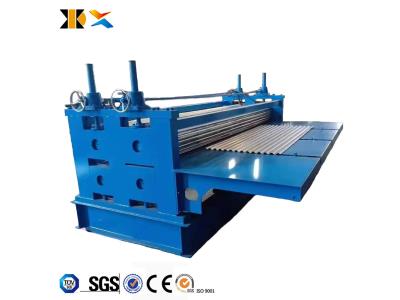

Automatic Corrugated Roof Sheet Forming Machine
This automatic machine produces barrel-type corrugated roof sheets. It forms the sheets with consistent curvature and dimensions for roofing applications.
Technical Specifications
Product Overview
High-Efficiency Corrugated Roof Forming

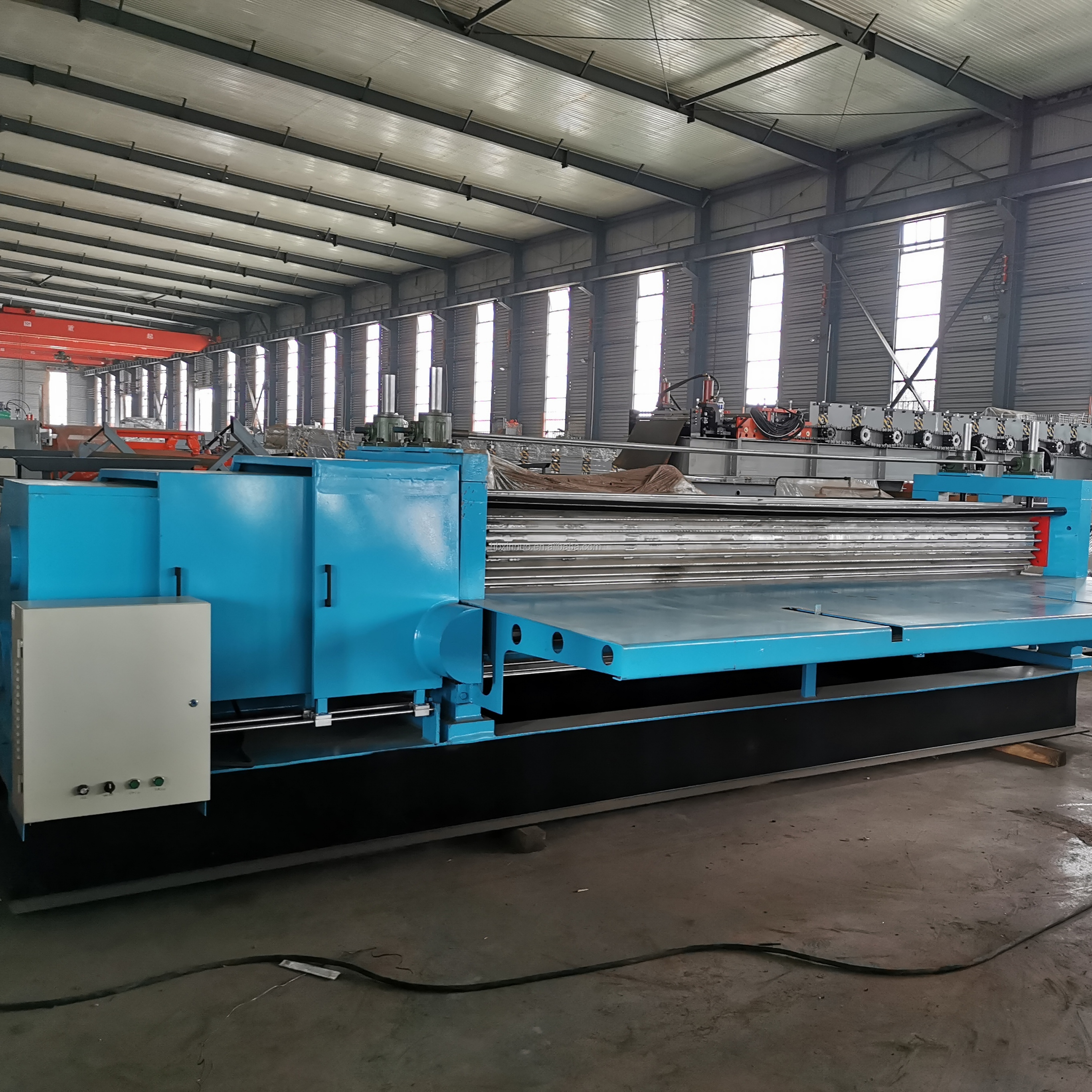

The Automatic Barrel Type Corrugated Roof Sheet Forming Machine is engineered for the high-volume production of precise roofing profiles. Featuring a robust construction with multiple forming rollers, it ensures consistent corrugation quality and long-term durability in industrial environments. This automated system streamlines the manufacturing process from feeding to cutting, significantly reducing labor costs while maximizing output for B2B suppliers.
Technical Performance
Performance Highlights
12 m/min
Max Speed
4 T/hour
Max Capacity
1,000 mm
Max Feed Width
- Productivity
- 9-12 m/min
- Production Capacity
- 2-4 Tons per hour
Material Specifications
- Feeding Material Thickness
- 0.12-0.4mm
- Feeding Material Width
- 1000 mm
System Features
Control System
- Programmable Logic Controller (PLC) for automated operation
- Integrated electrical control panel
- User-friendly interface for parameter setting
- Precision adjustment for sheet thickness and corrugation depth
Mechanical Components

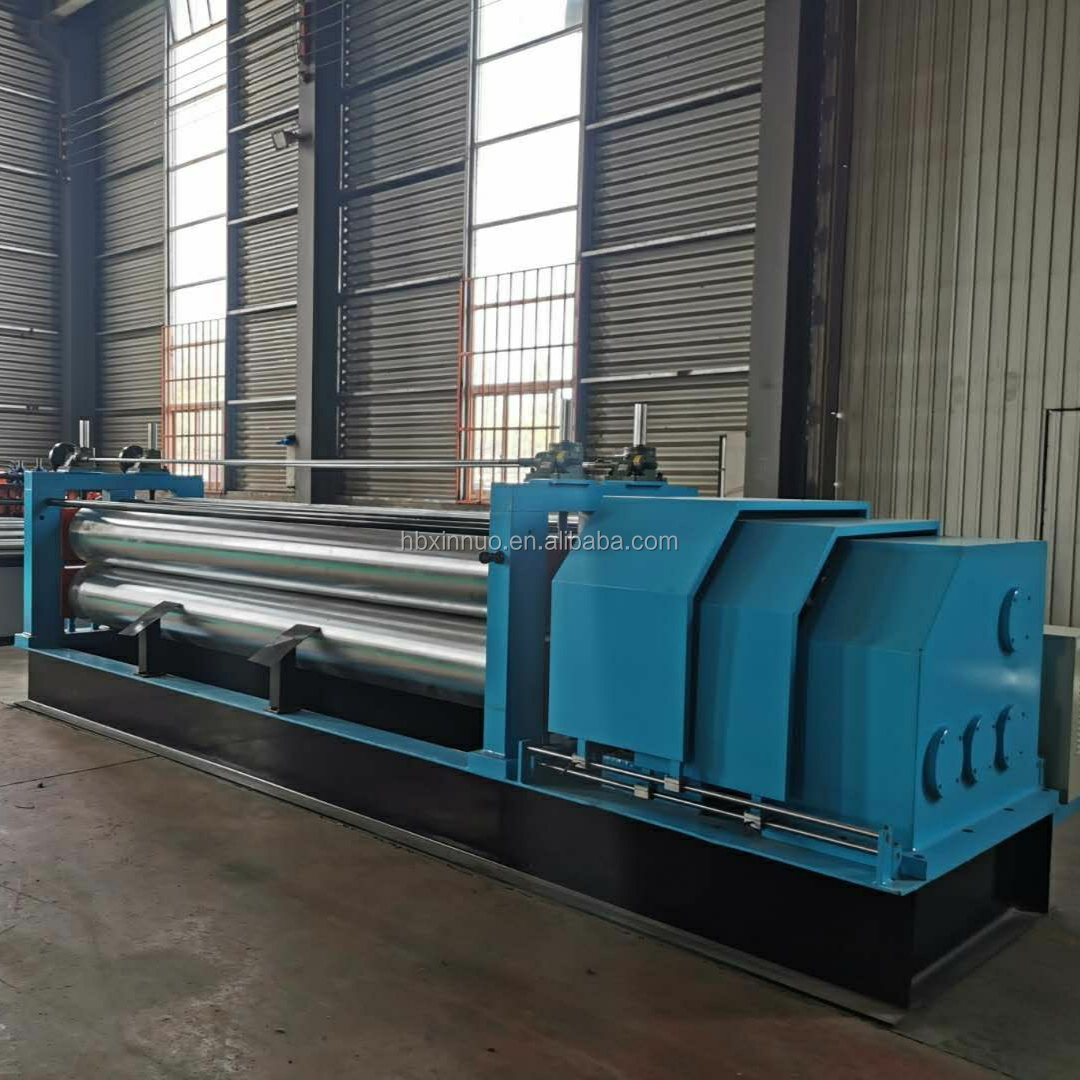

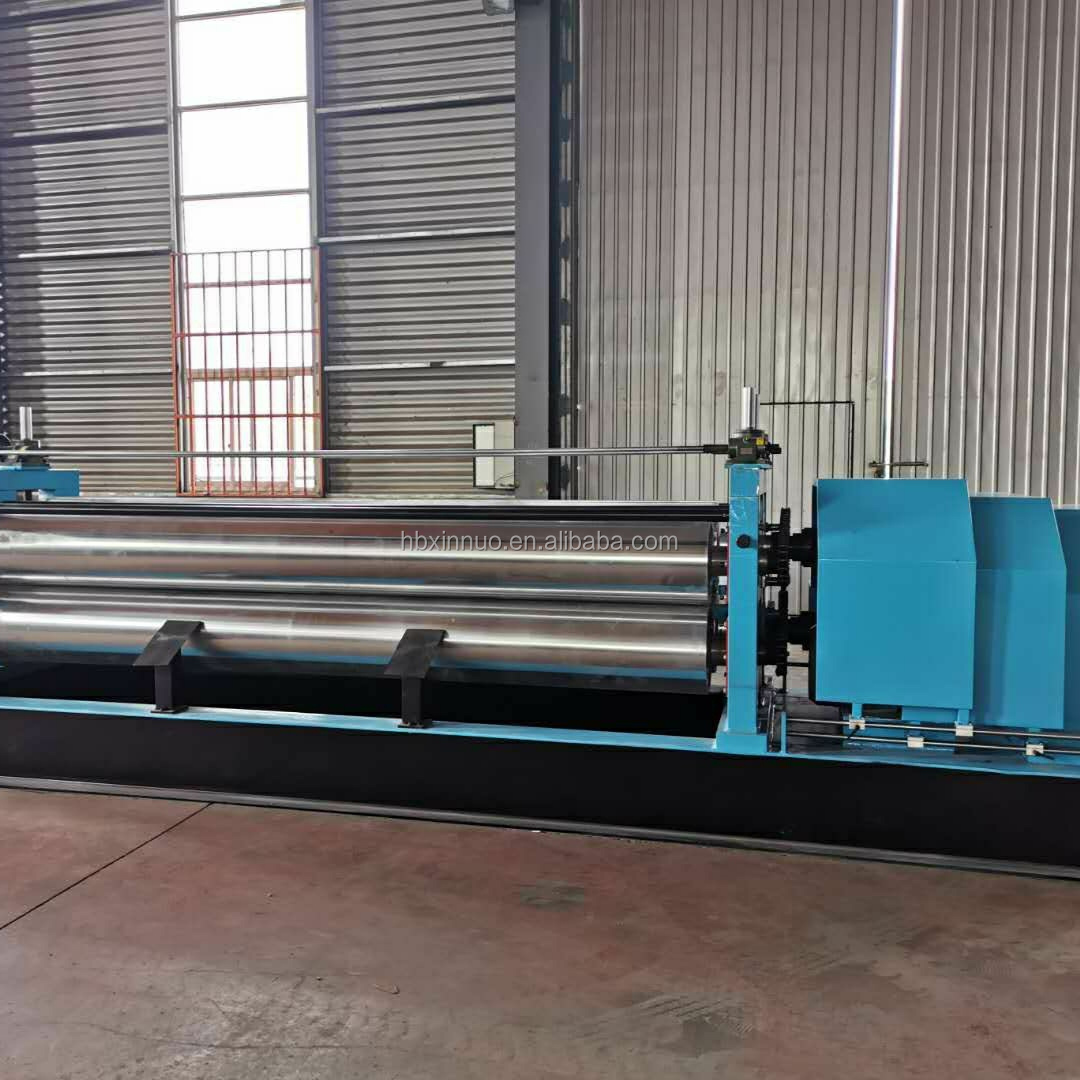

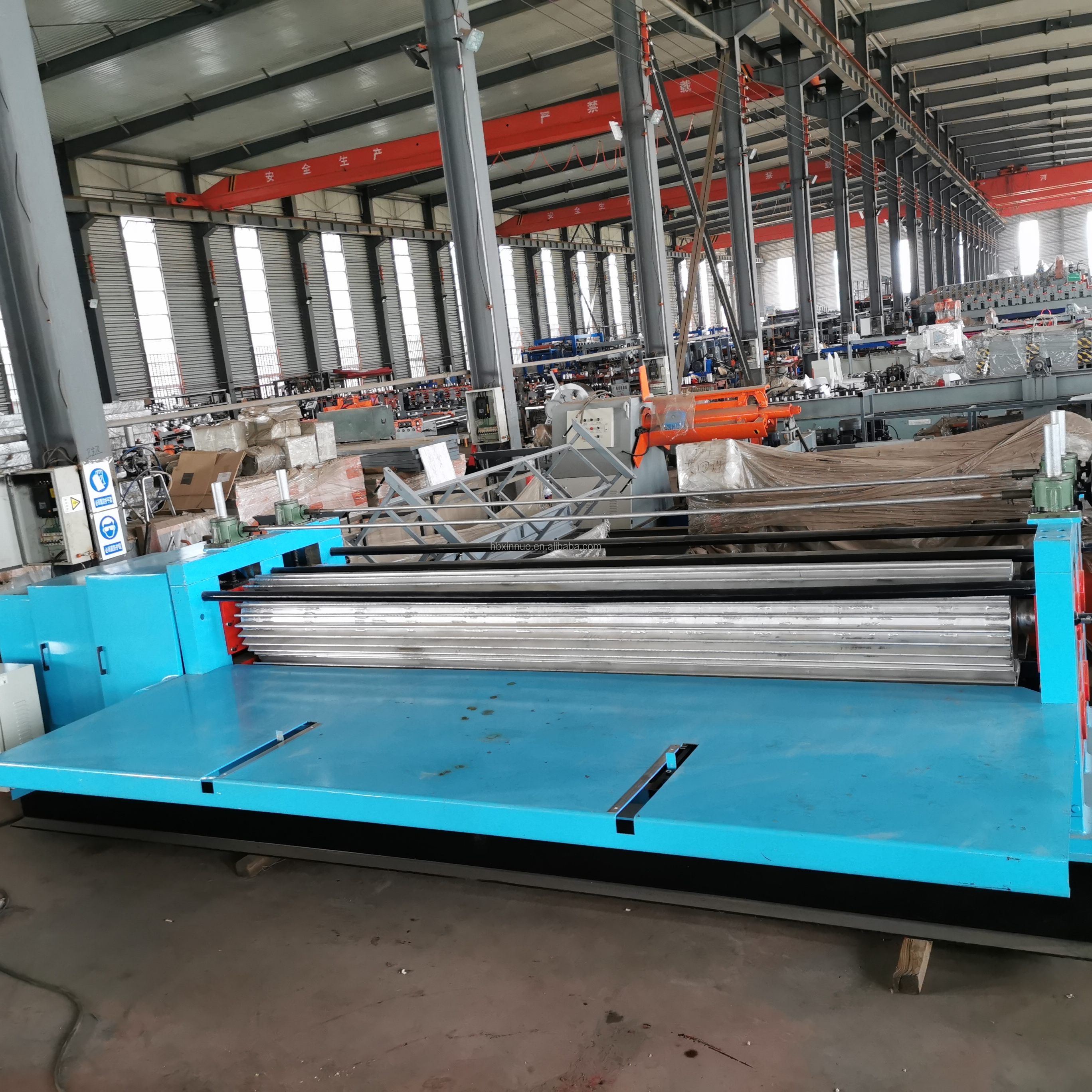

- Heavy-duty barrel-type forming rollers
- Hydraulic cutting system
- Automated feeding system
- Robust steel frame construction

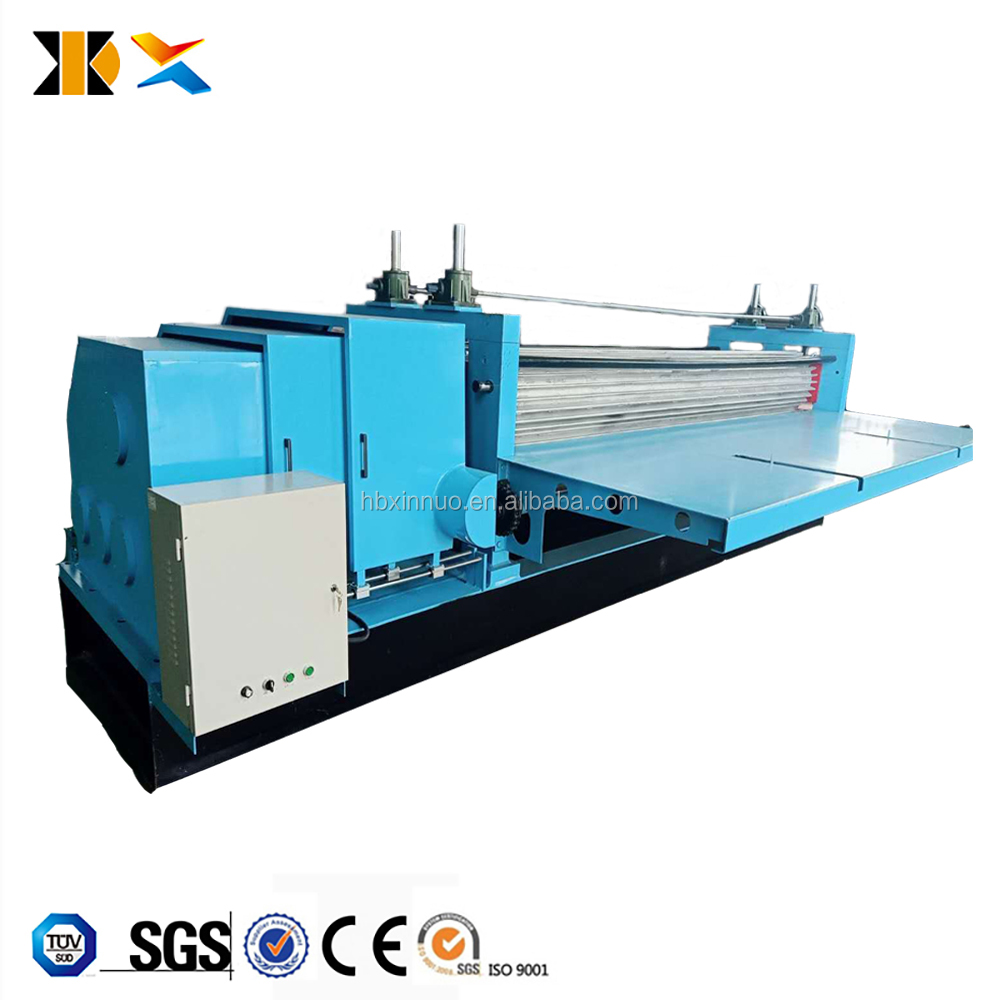

- Large output collection table
Manufacturing Quality
Production Workflow
- Raw Material Selection
- Precision Machining
- Base Plate Production
- Shot Blasting for Surface Adhesion
- Dual-Layer Electrostatic Spray Painting
- Component Assembly
- System Debugging & Testing
- Compliance & Quality Standards
- CEISO 9001SGSTUV
Service & Support
Available Services
Custom Machine DesignOn-site RepairTechnical Engineering SupportAfter-sales Maintenance
- Warranty Period
- 1 Year
