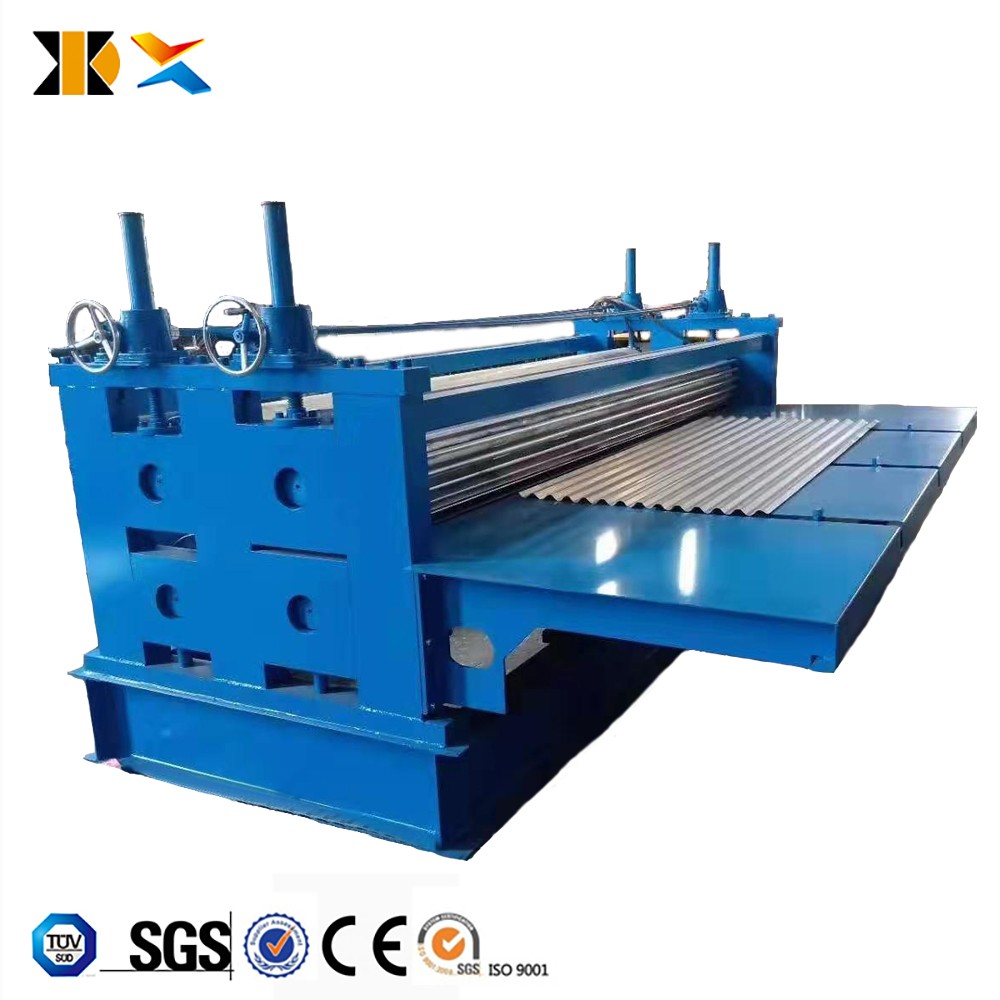

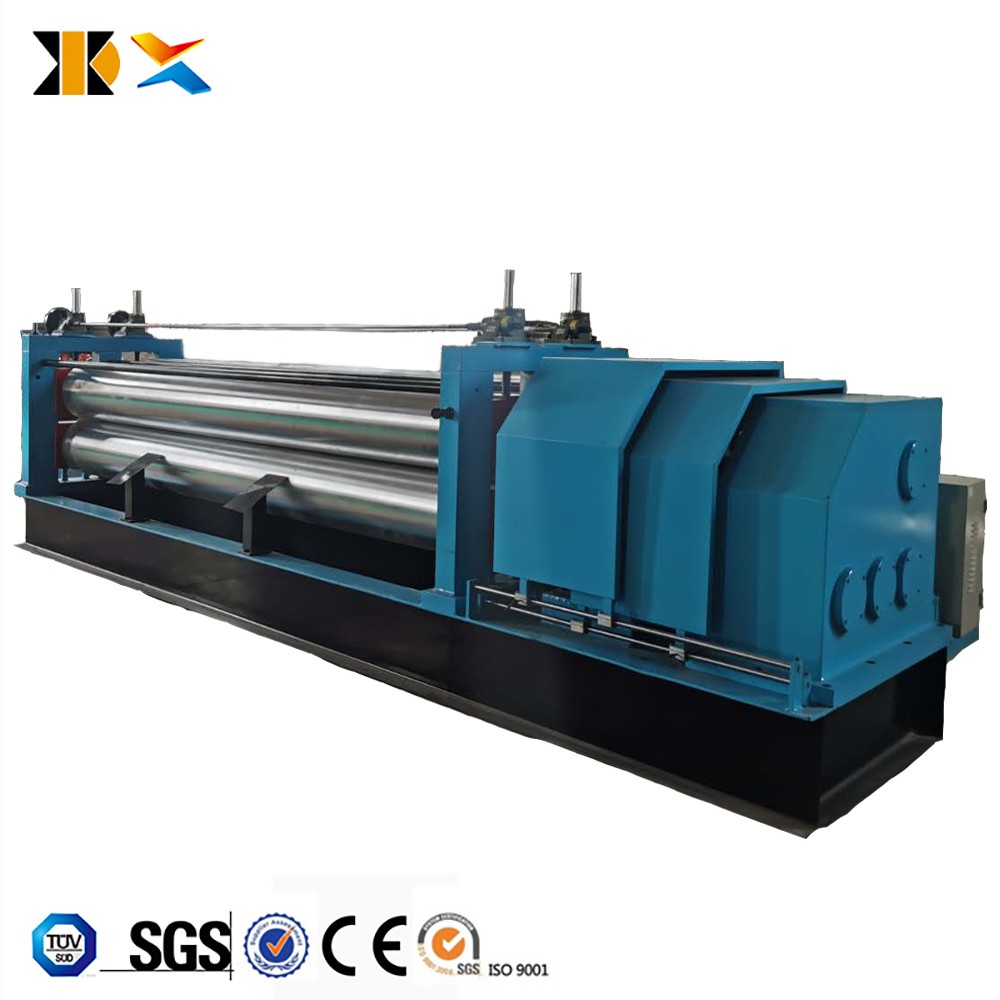

Automatic Corrugated Roof Roll Forming Machine
This automatic machine forms barrel-type corrugated roof panels. It utilizes a roll forming process to ensure consistent quality and high production efficiency.
Technical Specifications
Product Overview
High-Efficiency Corrugated Roof Production
The Automatic Barrel Type Corrugated Roof Roll Forming Machine is engineered for high-volume production of metal roofing sheets with consistent dimensional accuracy. It features a robust heavy-duty steel frame and precision-engineered forming rollers to handle various material thicknesses and widths. This automated system streamlines the feeding, forming, and cutting processes to reduce labor costs and maximize industrial output.
Key Performance Metrics
Performance Highlights
12 m/min
Max Productivity
4 T/hour
Max Capacity
1,000 mm
Max Feed Width
Technical Specifications
- Feeding Material Thickness
- 0.12-0.3mm / 0.16-0.4mm
- Feeding Material Width
- Maximum 1000mm
- Production Speed
- 9-12 meters per minute
- Output Capacity
- 2-4 Tons per hour
Design & Construction
Key Features
- Robust heavy-duty steel frame construction

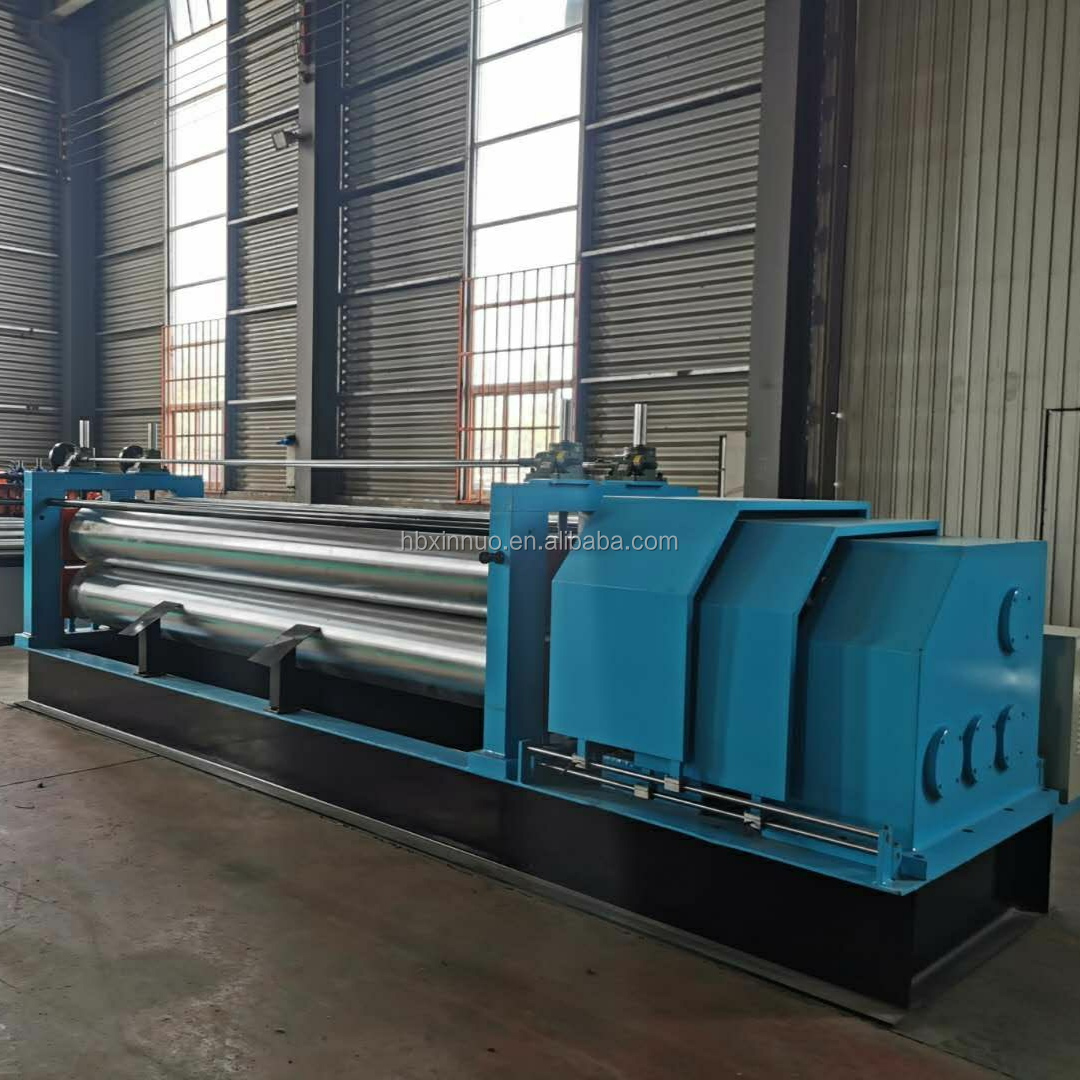

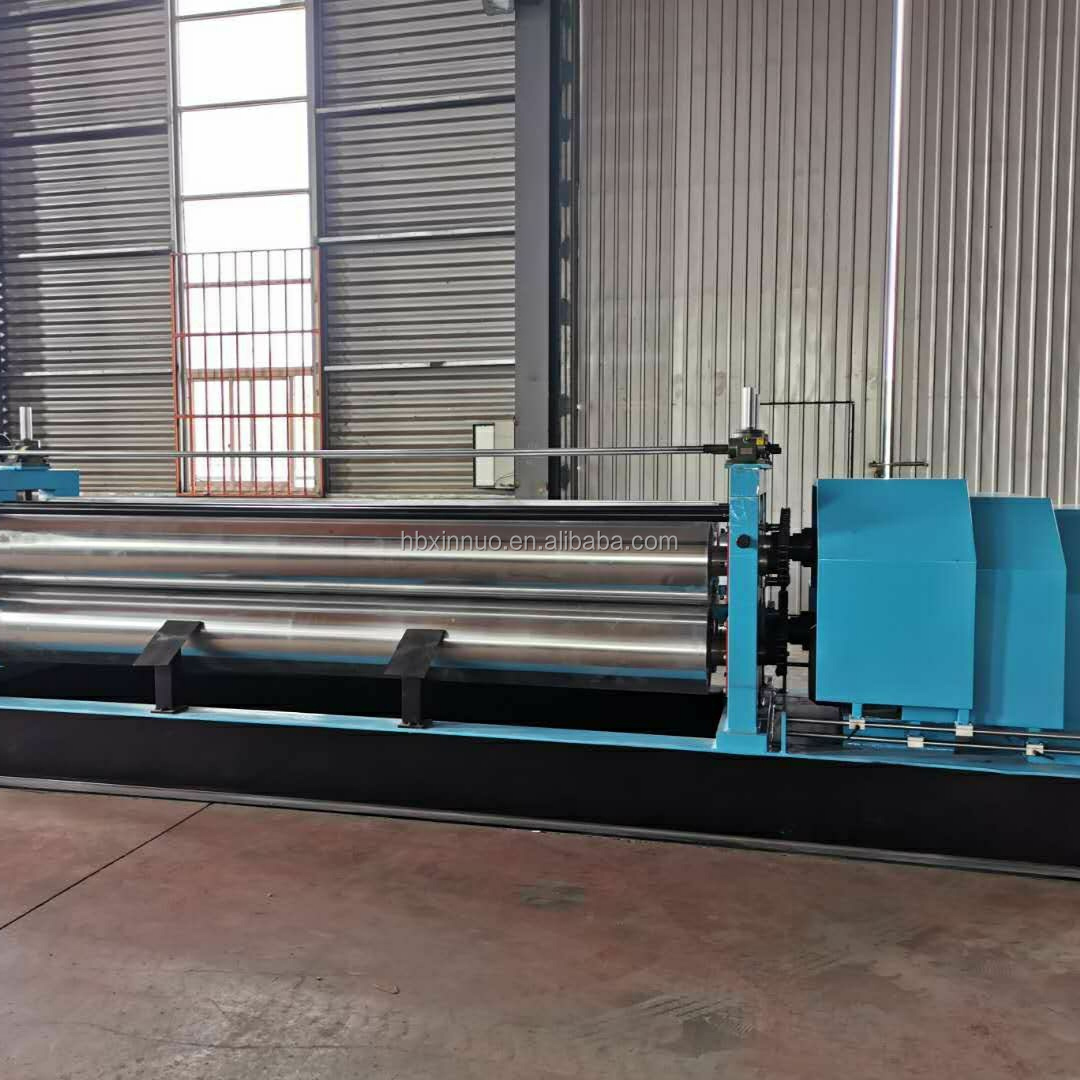

- High-quality precision forming rollers
- Automated material feeding system

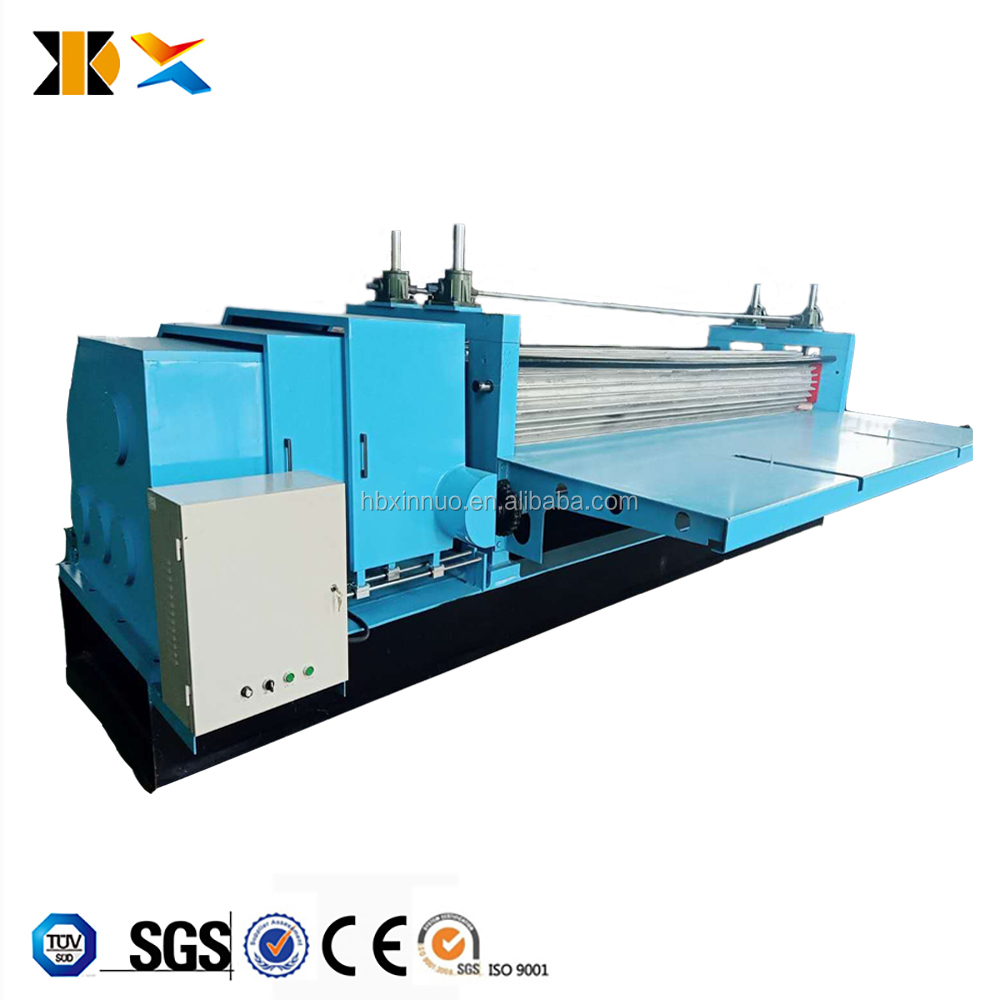

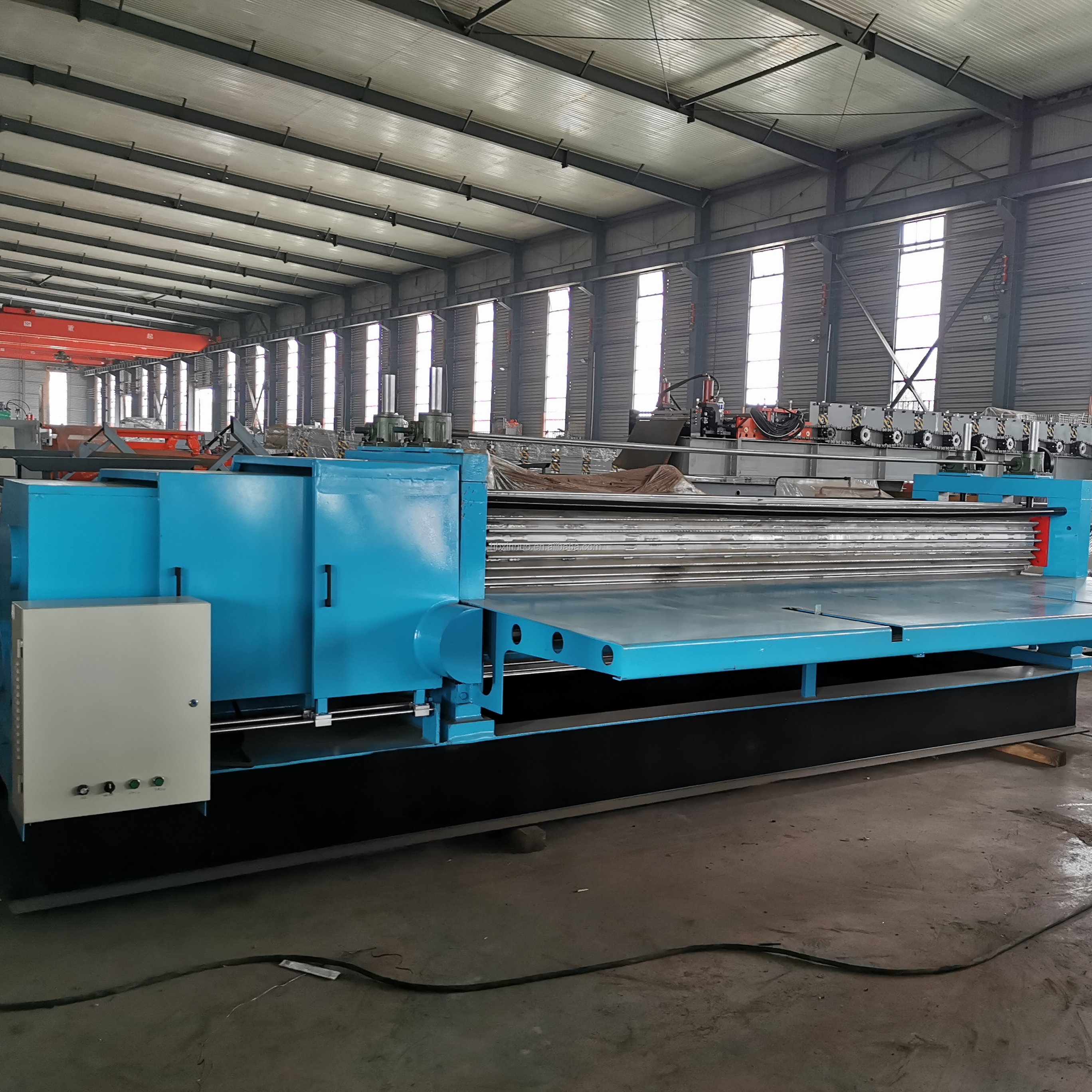

- Integrated PLC control panel for precise adjustments
- Automatic cutting mechanism
- Electrostatic spraying finish for high adhesion and durability
Quality & Compliance
- Certifications
- CETUVSGSISO 9001
Manufacturing Process
Production Workflow
- Raw Material Sourcing
- Precision Machining
- Base Plate Production
- Shot Blasting for surface cleaning
- Electrostatic Painting
- Final Assembly
- System Debugging
- Packaging & Shipment
Service & Warranty
Included Services
- Customized sourcing services
- Professional machine version design
- On-site engineer support for repairs
- In-house control system design and maintenance
- Warranty
- 1 Year (negotiable at time of order)
