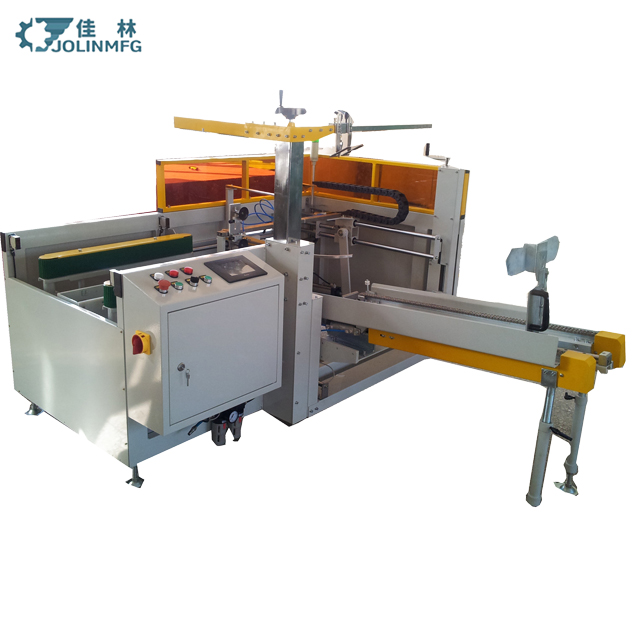

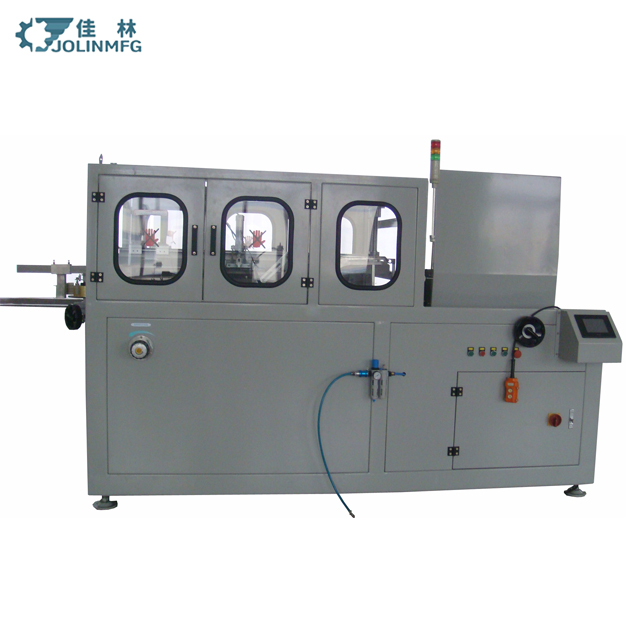

Automatic Corrugated Case Erector
This automatic case erector is designed for efficient carton box making. It automates the process of erecting and forming corrugated cases, improving packaging line productivity.
Technical Specifications
Overview
High-Efficiency Case Erecting Solution
This automatic corrugated case erector is designed to streamline end-of-line packaging by automating the erecting and forming of carton boxes. It features a vertical carton storage mechanism for easy and fast supplements at any time, ensuring continuous operation. With a quick changeover time of only 2 to 3 minutes for different box sizes, it offers high flexibility and performance for demanding industrial environments.
Key Features
- Vertical carton storage for easy loading
- Fast size modulation (2-3 minutes)
- High-precision durable parts
- Lightweight and high-performance design
Performance Metrics
Key Performance Metrics
720 ctns/h
Max Speed
350 kg
Machine Weight
3 min
Max Changeover
Technical Specifications
Compatible Carton Sizes
| Dimension | Minimum (mm) | Maximum (mm) |
|---|---|---|
| Length | 200 | 450 |
| Width | 150 | 400 |
| Height | 100 | 350 |
- Running Speed
- 600 to 720 cartons per hour
- Minimum Table Height
- 650 mm
- Equipment Dimensions (L*W*H)
- 2000mm * 1900mm * 1200mm
Components & Build
Control Components
- PLC: Siemens or Mitsubishi
- Pneumatic Cylinder: Airtac
- Sensors: Omron Optical-electronic
- Electrical: Schneider Contractor & Switch
- Interface: 5.7 inch Touch Screen
- Machine Surface Finish
- Plastic spraying processing
Utility Requirements
- Power Supply
- 220/380V, Single Phase, 50/60Hz
- Pneumatic Pressure
- 5 to 6 kg/cm2 (150Ne/min)
- Supported Tape Widths
- 48mm60mm75mm
