Technical Specifications
Overview
Automated Case Loading Solution
This automatic case loading machine is designed for the efficient collating, erecting, loading, and sealing of corrugated paper cartons. Featuring a robust, one-piece frame, it offers stable operation and is suitable for a wide range of industries including food, pharmaceuticals, tissue paper, books, and toys. The system includes an intuitive HMI panel for easy parameter recording and handling, ensuring seamless integration into modern production lines.
Applications
- Suitable Industries
- FoodPharmaceuticalsTissue PaperBooksToys

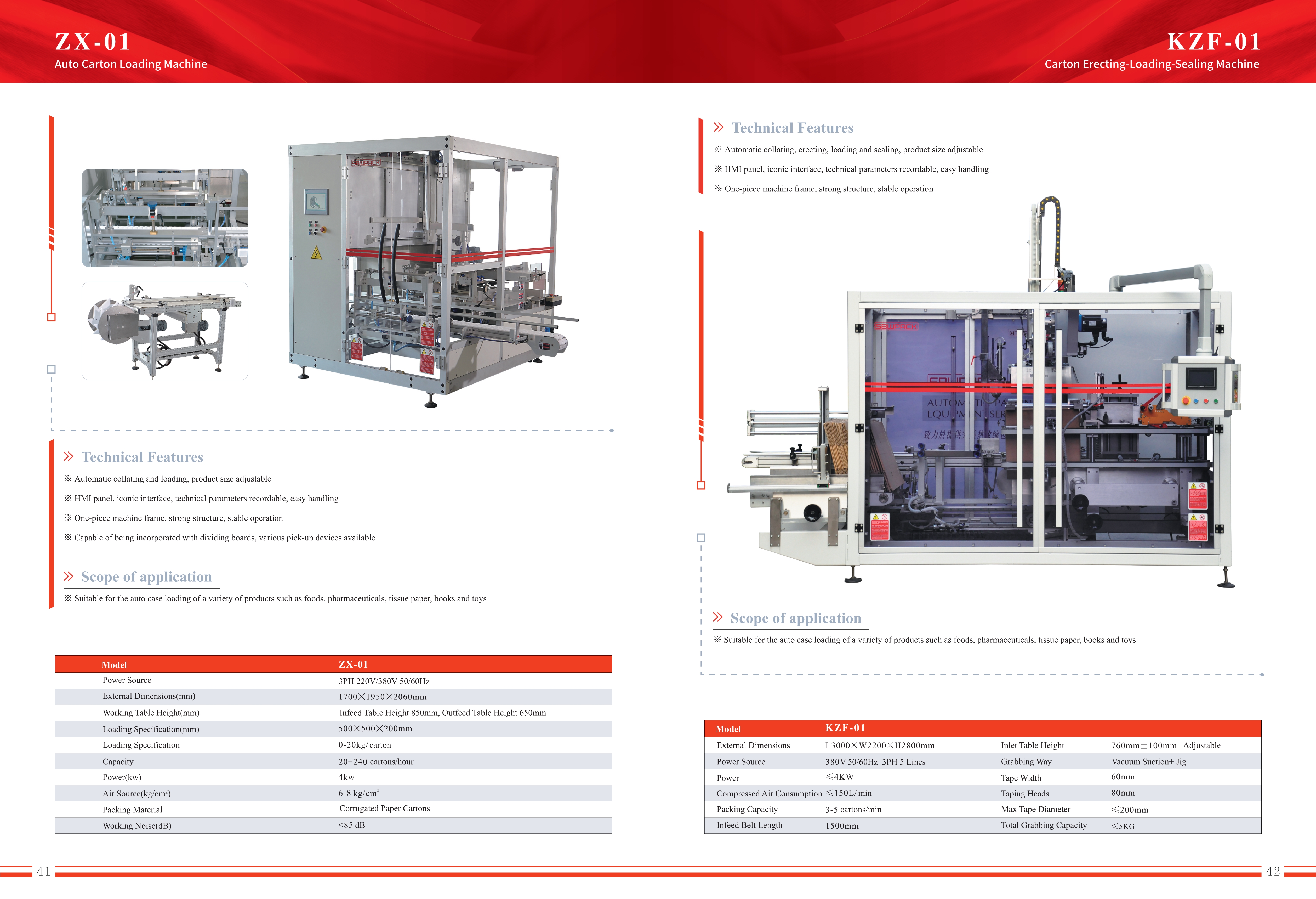

Technical Specifications - Model ZX-01
Performance Metrics
240 cartons/hour
Max Capacity
20 kg/carton
Max Load
- Machine Dimensions
- 1700 x 1950 x 2060 mm
- Power Requirements
- 3PH 220V/380V 50/60Hz, 4kW
- Air Supply
- 8 kg/cm²
Technical Specifications - Model KZF-01
Operational Performance
5 cartons/min
Max Packing Capacity
5 kg
Max Grabbing Capacity
Taping Specifications
- Tape Width: 60mm
- Taping Head: 80mm
- Max Tape Diameter: ≤200mm
- Machine Dimensions
- L3000 x W2200 x H2800 mm
- Power Supply
- 380V 50/60Hz 3PH 5 Lines
