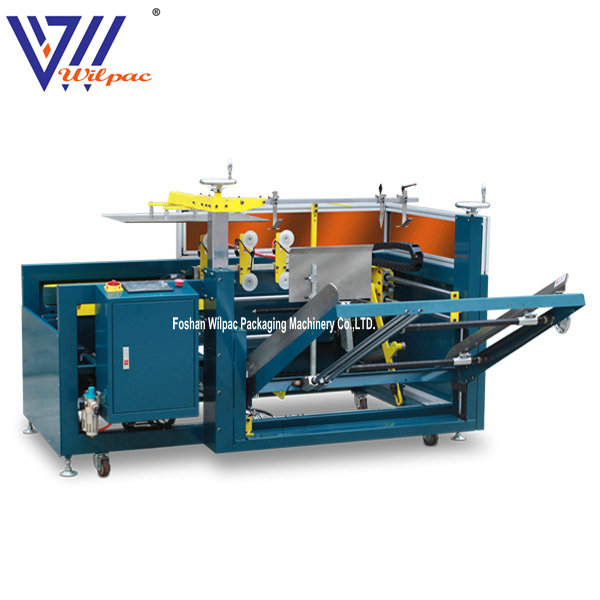

Automatic Carton Forming and Sealing Machine
This machine automates the forming, folding, and sealing of cardboard cartons. It features adjustable settings to accommodate various carton sizes and shapes, making it suitable for diverse packaging needs.
Technical Specifications
Overview
High-Efficiency Automatic Carton Processing
This automatic carton forming and sealing machine utilizes advanced international technologies to provide a reliable solution for high-volume packaging environments. It features a vertical carton storage mode that allows for continuous feeding without stopping the machine, significantly improving operational uptime. Designed for versatility, the system handles carton shaping, bottom folding, and sealing in a single concurrent process with high precision and stability.
Performance Metrics
Key Performance Metrics
12 cartons/min
Max Opening Speed
2,000 W
Power Requirement
450 kg
Machine Weight
Technical Specifications
Applicable Carton Dimensions
| Dimension | Range (mm) |
|---|---|
| Length | 250 - 450 |
| Width | 150 - 400 |
| Height | 100 - 400 |
- Model
- WP-CS
- Carton Inventory Capacity
- 1000 mm
Operational Requirements
Pneumatic Requirements
- Air Pressure: 6Kg/cm³
- Air Consumption: 450NL/min
- Compatible Tape Sizes
- 48mm60mm75mm
- Power Supply
- 220V / 50(60)Hz
Design & Safety
Safety & Construction
- Plexiglass protection cap to prevent operational accidents
- Vertical carton paper storage for non-stop feeding
- Compact volume with precise, durable parts
- Vibration-free stable running
- Manual adjustment for size changes (1-2 minutes)
- Machine Dimensions (L*W*H)
- 2000 * 1900 * 1450 mm
