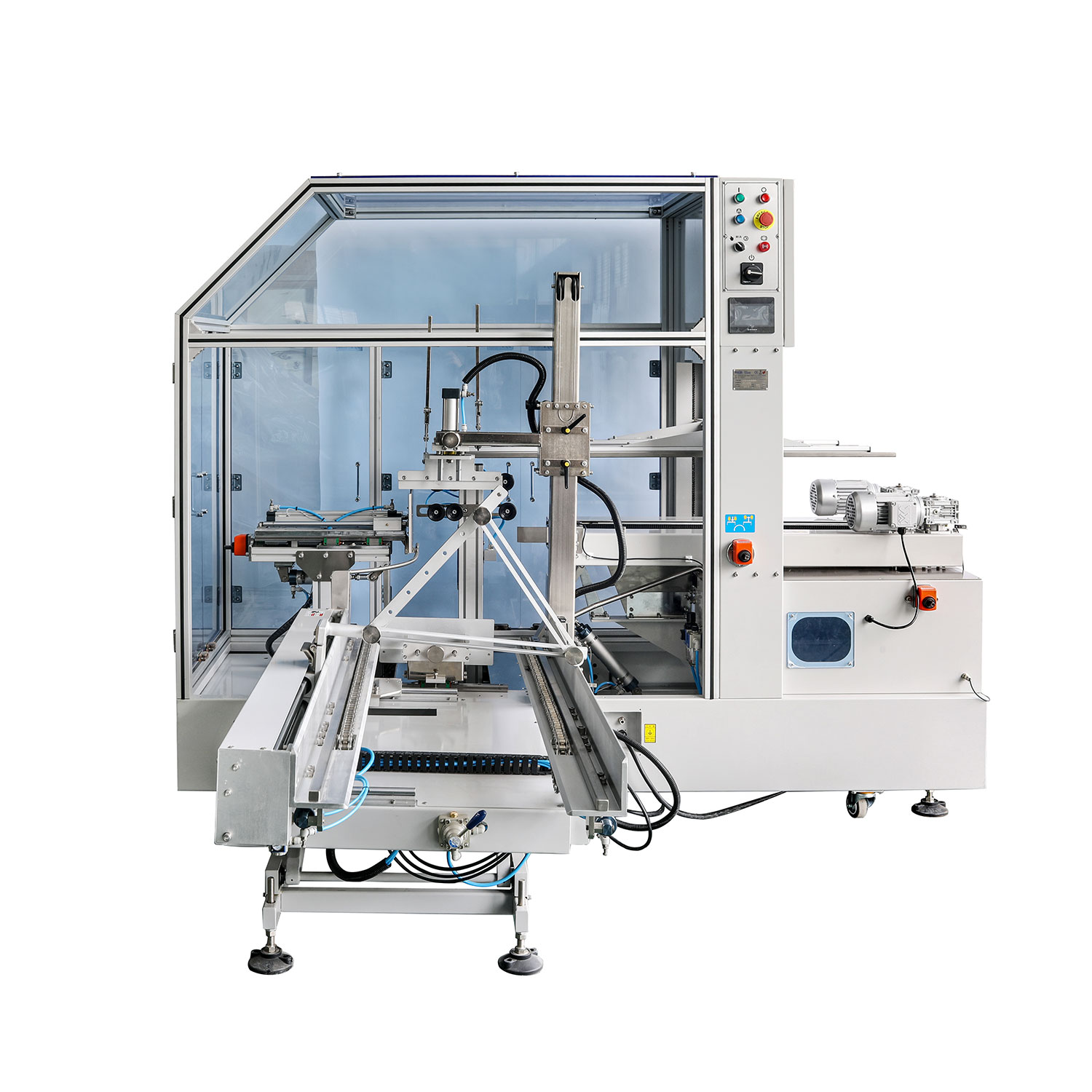

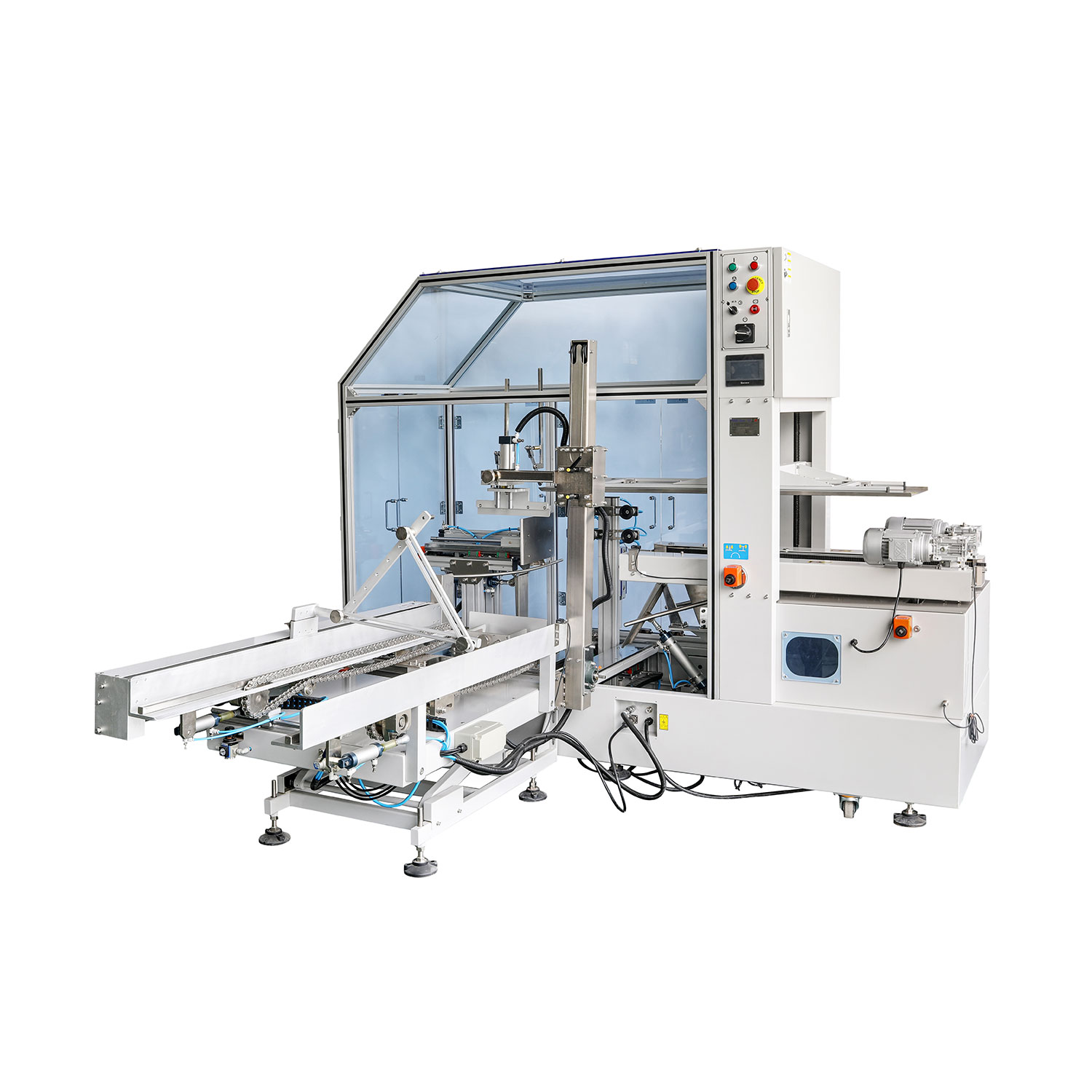

Automatic Carton Erector
This automatic case erector completes carton erecting, rectangle forming, bottom flap folding, and tape sealing. It opens cartons using a vacuum sucker and alarms when lacking tape or cartons.
Technical Specifications
Product Overview
High-Efficiency Automatic Case Erecting
The CXJ-4030C is a robust automatic carton erector designed to streamline B2B packaging lines by automatically completing carton erecting, rectangle forming, bottom flap folding, and tape sealing. Utilizing a vacuum suction system for precise opening, this machine significantly reduces manual labor while ensuring consistent packaging quality. It features integrated alarm functions for tape and carton shortages, making it a reliable solution for high-volume industrial environments.
Performance Metrics
Key Performance Metrics
10 cases/min
Max Capacity
800 W
Power Consumption
500 kg
Machine Weight
Operational Features
Automated Process Steps
- Automatic carton erecting
- Rectangle forming
- Bottom flaps folding
- Bottom tape sealing
- Vacuum sucker carton opening
- Safety & Monitoring
- Lack of adhesive tape alarmLack of carton alarmEmergency stop buttonsInterlocked guarding
Technical Specifications
- Power Supply
- AC 380/50 or 220/60 (3 Phase)
- Air Supply Pressure
- 0.5 Kpa
- External Size (L×W×H)
- 2300 × 2300 × 1850 mm
- Vacuum Device Height
- 700 + (0-30) mm
Carton & Tape Compatibility
Adjustable Case Range
| Limit | Length (A) mm | Width (B) mm | Height (C) mm |
|---|---|---|---|
| Minimum | 250 | 150 | 150 |
| Maximum | 400 | 300 | 300 |
Applicable Tape Types
BOPPPVCKraft Adhesive Tape
- Tape Roll Specifications
- Max Roll Dia: 350mm; Width: 48mm, 60mm (Std), or 76mm
