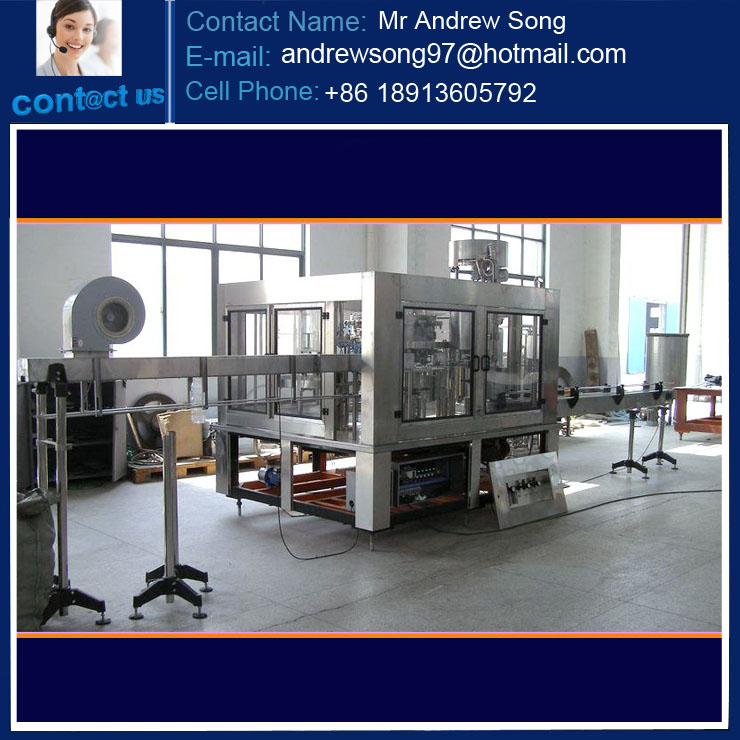

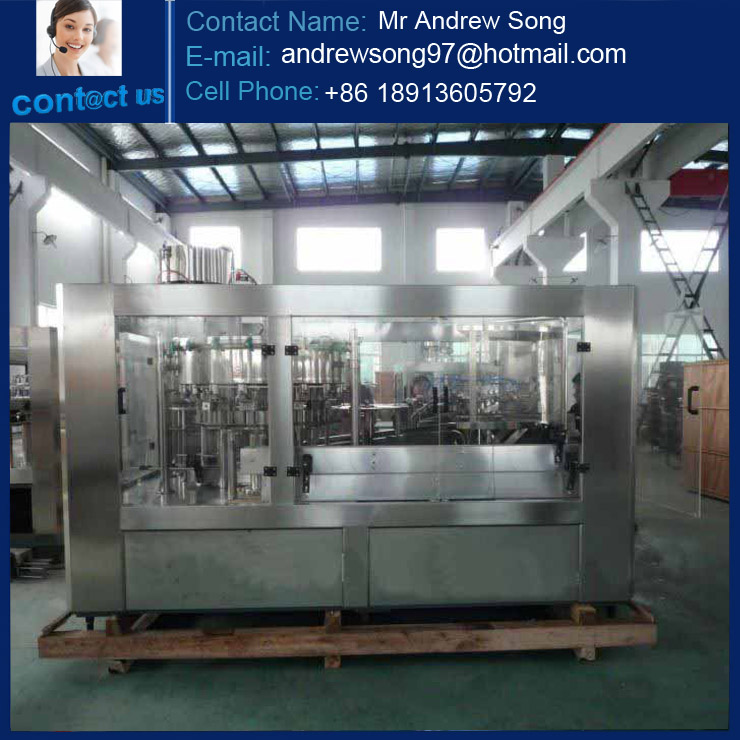

Automatic Carbonated Soft Drink Bottling Machine
This machine is designed for filling carbonated drinks into plastic, glass, or aluminum containers. The bottling process includes syrup melting, flavored mixing, filtration, and carbon dioxide mixing before filling and packing.
Technical Specifications
Overview
High-Efficiency Carbonated Beverage Bottling
This automatic bottling system provides a complete solution for filling carbonated soft drinks into PET bottles, glass bottles, and aluminum cans. The integrated design combines rinsing, filling, and capping into a seamless automated process, ensuring high-speed production and consistent product quality. Engineered with stainless steel for hygiene and durability, it is an ideal choice for large-scale beverage manufacturers looking to optimize their production lines.
Technical Performance
Key Performance Metrics
12,000 BPH
Max Capacity
12 pcs
Filling Stations
- Production Capacity
- 10,000 - 12,000 bottles per hour (based on 500ml bottles)
- Filling Method
- Balanced pressure filling
- Model
- DCGF 12-12-4
Application & Compatibility
Supported PET Bottle Sizes
- 250ml
- 500ml
- 750ml
- 1000ml
- 1500ml
- Compatible Liquids
- Carbonated DrinkSoft DrinkSodaFlavored Juice with CO2
- Cap Compatibility
- Normal plastic screw caps
System Components
Complete Solution Modules
- Water treatment system
- Soft drink processing machine (Syrup melting, mixing, filtration)
- Carbon dioxide mixer
- Soft drink filling machine
- Bottled soft drink packing machine
- PET bottle blow molding machine
- Bottle unscrambler
- Processing Stages
- Syrup melting - Flavored mixing - Filtration - CO2 mixing - Filling - Packing - Bottle making
Construction & Design
Material
High-Grade Stainless Steel
Key Design Features
- Automated filling and capping mechanisms
- Conveyor system for efficient handling
- Integrated rinsing station
- Advanced control systems for volume accuracy
- Customizable filling valves and nozzles
