Automatic C Z U Purlin Roll Forming Machine
This automatic roll forming machine produces C, Z, and U shaped purlins from cold steel profiles. It is engineered for precision and efficiency in manufacturing consistent structural purlins.
Technical Specifications
Overview
High-Efficiency C/Z/U Purlin Production
This automatic cold steel profile roll forming machine is a versatile solution for manufacturing C, Z, and U-shaped structural purlins with high precision. Engineered for industrial-scale production, it integrates multiple forming stations and an automated cutting system to ensure consistent profile accuracy and dimensional stability. Ideal for construction and roofing applications, this machine minimizes manual intervention while maximizing throughput and material efficiency.

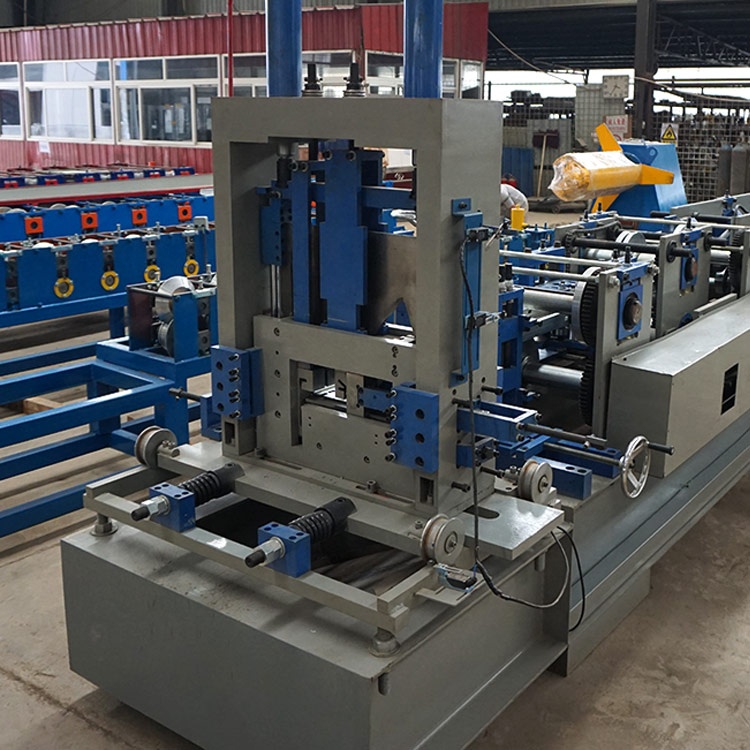

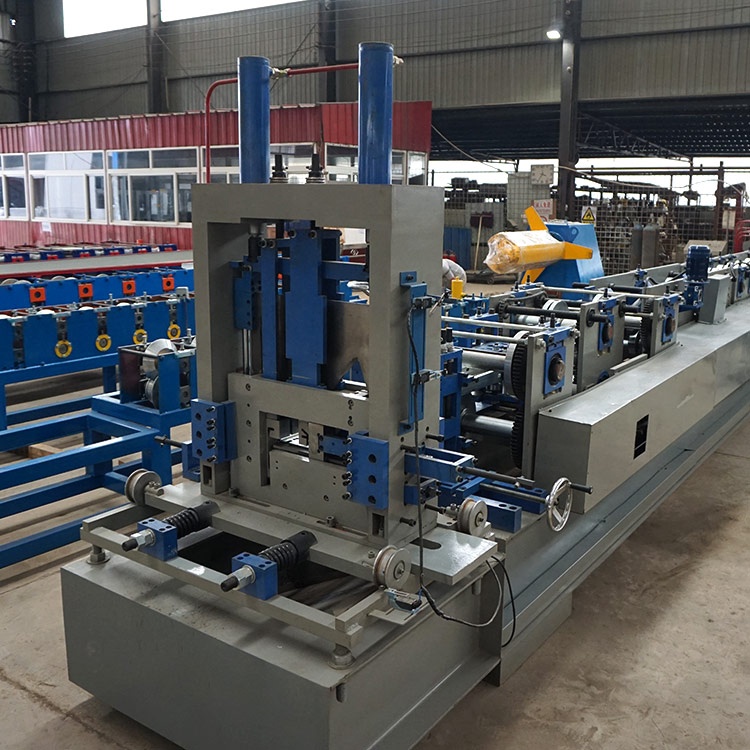

Rolling Forming System
Forming Performance
15 KW
Motor Power
14.8 m/min
Max Forming Speed
18 Groups
Roller Groups
- Main Motor Type
- Phase asynchronous motor
- Speed of Forming
- 10-14.8m/min
Material Specifications
Roller Material
GCr15
Main Shaft Details
- Material: 40Cr
- High frequency grinding & heat treatment
- Chromed surface finish
- Diameter: 70mm

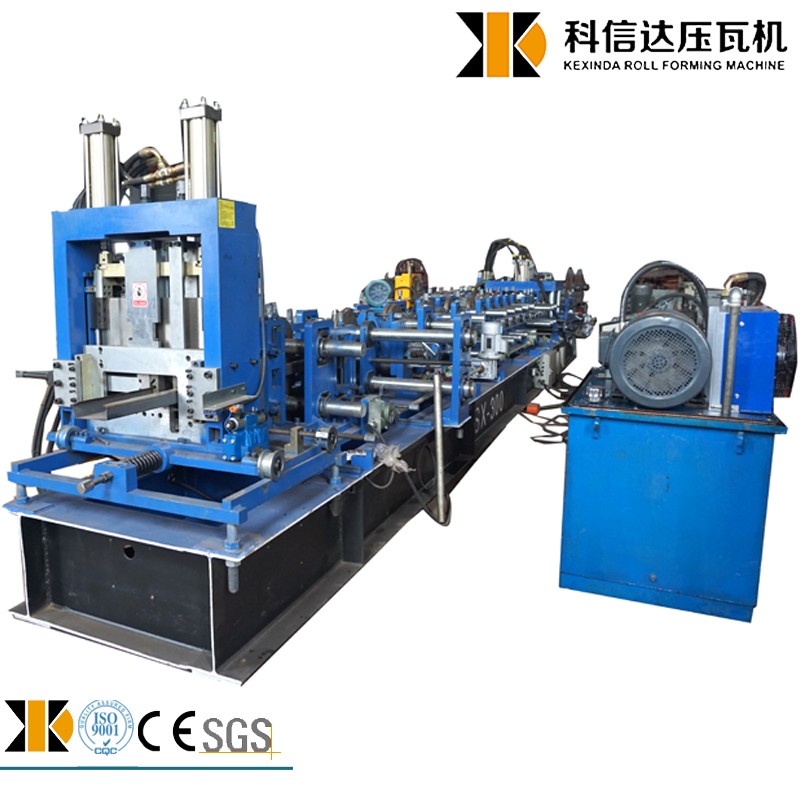

Hydraulic System
Punching & Cutting Specifications
| Feature | Specification |
|---|---|
| Punching Type | Hydraulic Punching |
| Cutting Type | Hydraulic Cutting |
| Cutting Material | Cr12 |
| Hydraulic Power | 5.5KW |
- Process Sequence
- Punching and cutting are performed before roll forming
Capabilities
- Supported Profiles
- C PurlinZ PurlinU PurlinStructural Steel
Service & Warranty
- Warranty Period
- 1 Year
- Production Capacity
- 40,000 square meter workshop for roll forming products
