Automatic Bottling Line for 3-10L Water Bottles
This automated bottling line is designed for filling large water bottles from 3 to 10 liters. It integrates rinsing, filling, and capping functions to streamline the packaging process.
Technical Specifications
Overview
Turn-Key Bottling Solution

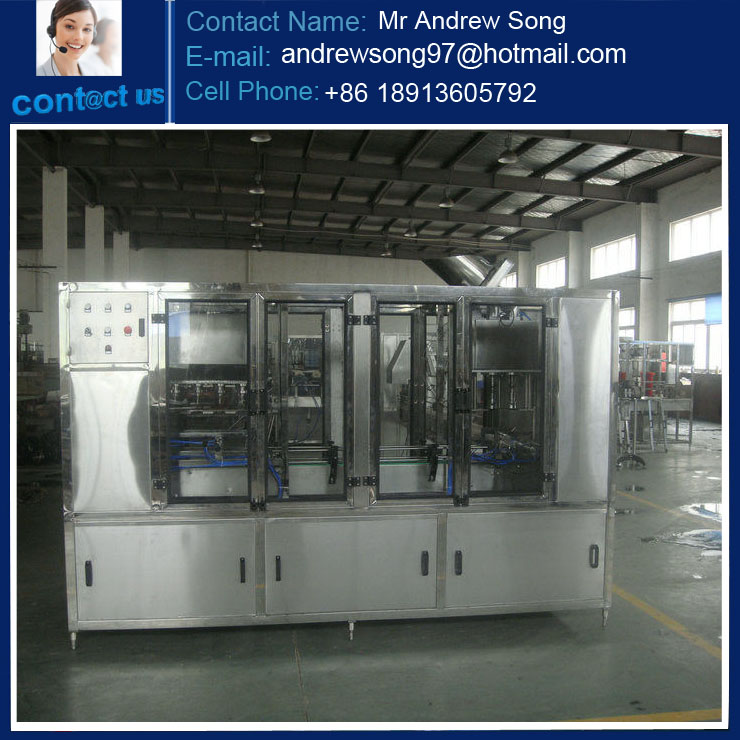

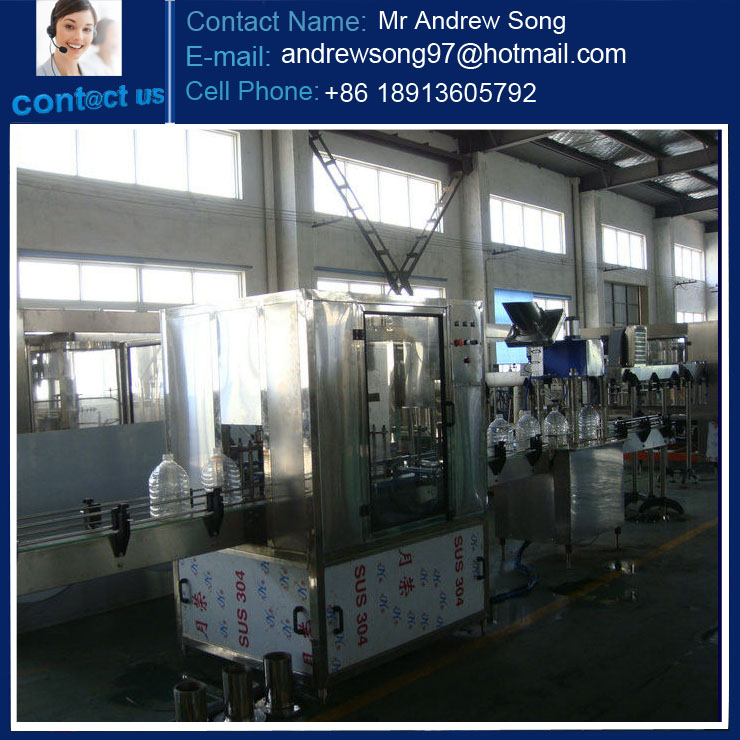

This automatic bottling line is a comprehensive, turn-key solution designed specifically for large-format drinking water containers ranging from 3L to 10L. The system integrates rinsing, filling, and capping modules into a seamless, automated process controlled by a PLC system with photoelectric detection. Built for efficiency and hygiene, it ensures consistent production throughput for high-volume beverage operations.
Technical Specifications
Production Capacity
640 bph
Bottles per Hour
- Line Total Length
- 11.1 m
- Power Supply
- 380V 50HZ
- Total Power Consumption
- 4.5 KW
- Atmospheric Pressure
- 0.5 ~ 0.7mpa
Machine Configuration
Station Heads
| Station | Quantity |
|---|---|
| Rinsing | 4 |
| Filling | 4 |
| Capping | 1 |
- Construction Material
- SUS 304 Stainless Steel
Component Dimensions
- Rinser Dimensions
- 1100 × 800 × 1800 mm
- Filling Machine Dimensions
- 1200 × 800 × 1800 mm
- Weight per Unit
- 700 kg
