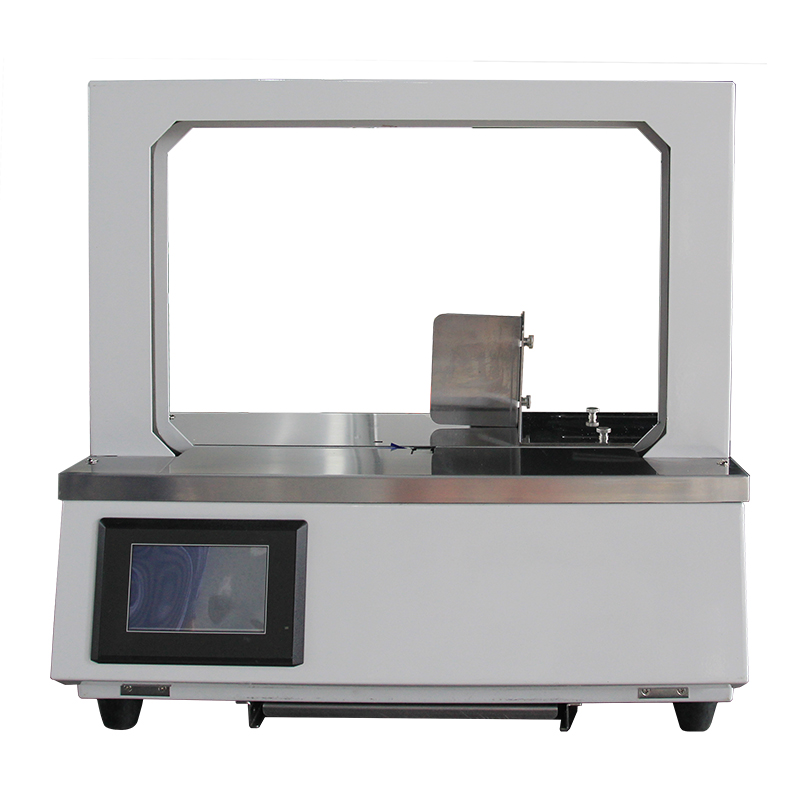

Automatic Banding Machine
This automatic banding machine is designed for efficient and reliable banding of various materials. It features a user-friendly interface and adjustable settings for optimal performance.
Technical Specifications
Overview
Automatic Banding Solution
This automatic banding machine is designed for efficient, high-volume packaging and bundling applications. Featuring an intuitive touchscreen interface, it allows for precise control over banding parameters, including tension and speed. The machine operates on a safe 24V DC internal voltage and includes advanced features like port detection and production record keeping, making it an ideal solution for streamlining industrial packaging processes.
Key Features
Machine Capabilities
- Internal 24V DC safe voltage operation
- Touch screen parameter setup
- Integrated port detection functionality
- Production record tracking and clearing
Technical Specifications
Performance Metrics
26 cycles/min
Max Packing Speed (AG03-12-220/170)
5 kg
Max Strapping Tension
215 mm
Working Table Height
Model Comparison
| Feature | AG03-12-220/170 | AG03-12-360/260 |
|---|---|---|
| Packing Speed | 26 cycles/min | 22 cycles/min |
| Arch Size | W220 x H170mm | W360 x H260mm |
| Net Weight | 18kg | 22kg |
| Gross Weight | 28kg | 35kg |
- Power Requirements
- AC110-120/200-240V, 50/60Hz, 1Ph, 0.25kW, 2.5A
Consumables
Banding Material Specifications
- Material: OPP film
- Standard Width: 12mm
- Spool Inner Diameter: 40mm
- Spool Outer Diameter: 160mm
- Film Thickness: 0.12mm
Dimensions
- Machine Dimensions (L x W x H)
- AG03-12-220/170: 380x280x415mmAG03-12-360/260: 520x280x505mm
