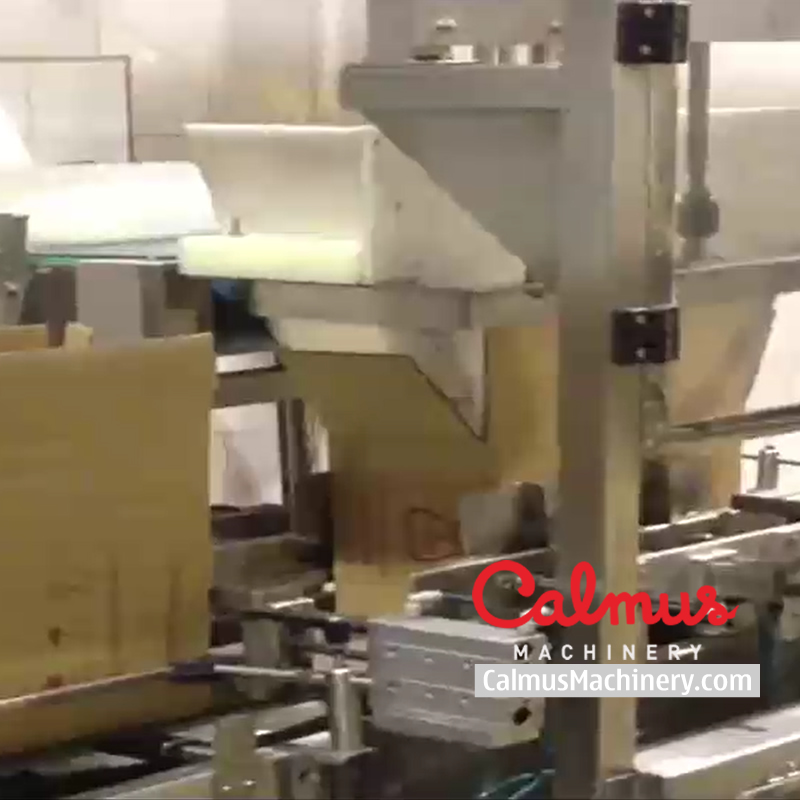

Automatic Bag-in-Box Filling Line
This fully automatic filling and packaging line is designed for 3-25 liter bag-in-box containers. It integrates carton erecting, bag inserting, filling, and sealing for efficient packaging.
Technical Specifications
Overview
Fully-Automatic Bag-in-Box Packaging Solution
This comprehensive, fully-automatic Bag-in-Box (BiB) filling and packaging line is engineered for high-efficiency liquid processing. The system integrates carton erecting, bag insertion, precise filling, and final carton sealing into a seamless, automated workflow. Constructed with high-grade 304 and 316L stainless steel, it ensures durability and hygiene for diverse applications including water, edible oils, and beverages.
System Components
Integrated Modules
- Fully-automatic Bag-in-Box Filling Machine
- Hot-Melt Glue Carton Erector
- Bag Inserter
- Hot-Melt Glue Carton Sealer
- Conveying Systems
Filling Performance
Filling Capacity
510 bags/hr
Max Capacity (5L)
400 bags/hr
Max Capacity (10L)
270 bags/hr
Max Capacity (20L)
- Applicable Bags
- Pre-cut continuous module or web type spouted bags, 2-25 litres
Technical Specifications
Utility Requirements
| Requirement | Specification |
|---|---|
| Power Consumption | 1.0 kW |
| Compressed Air Pressure | 6-8 bar |
| Compressed Air Consumption | 500 NL/min |
- Material Construction
- Grade 304 Stainless SteelGrade 316L Stainless Steel (Fluid-contact parts)Coated Carbon Steel (Erector/Sealer)
Operational Capabilities
Module Throughput
| Module | Capacity |
|---|---|
| Carton Erector | 6-7 cartons/min |
| Bag Inserter | 15 bags/min |
| Carton Sealer | 10 cartons/min |
Key Features
Fully-AutomaticPLC ControlTouch Screen InterfaceCIP (Clean in Place) FunctionNordson Hot-Melt Glue System
