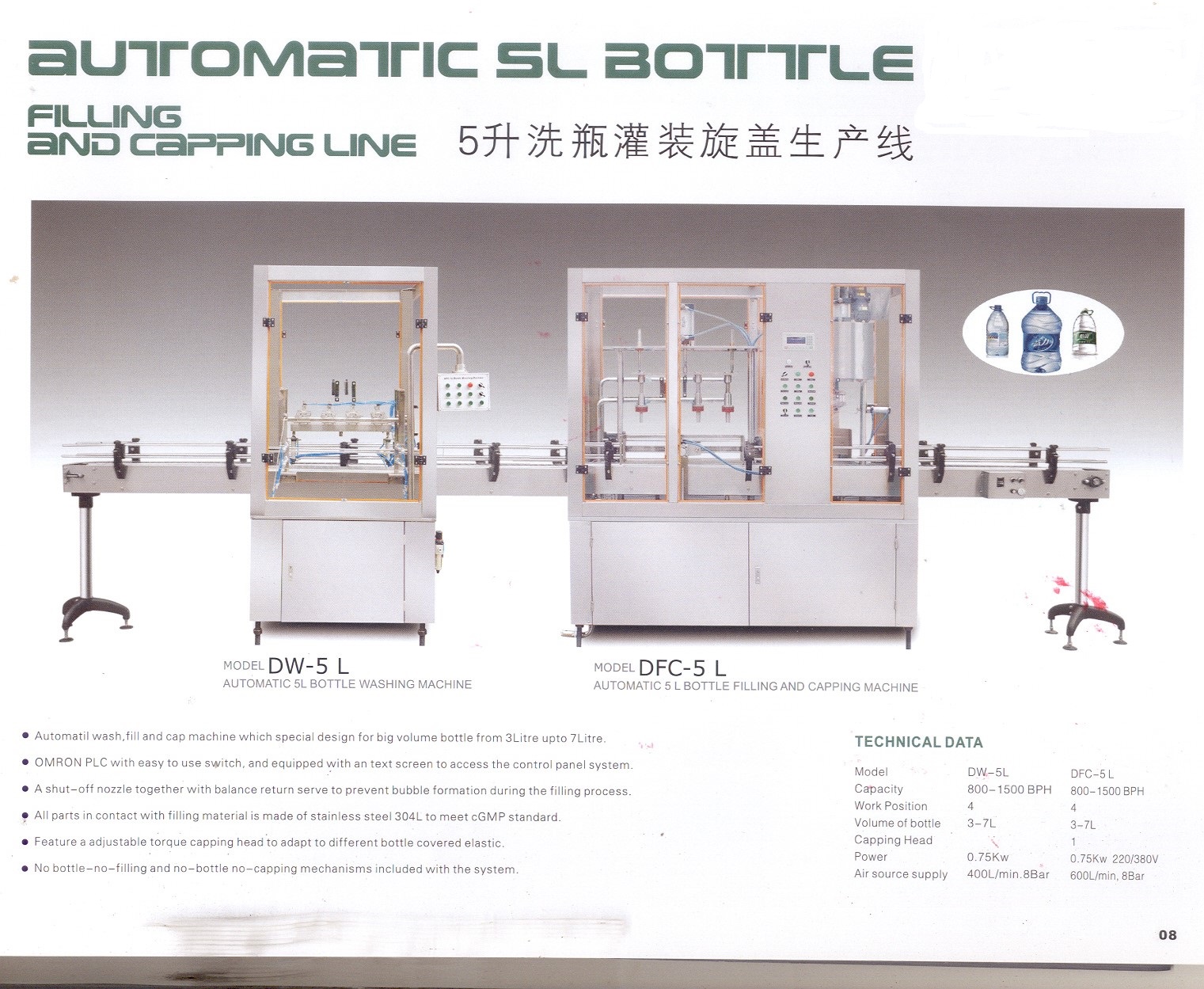

Automatic 5L Bottle Filling and Capping Line
This automatic line is engineered for filling and capping bottles ranging from 3 to 7 liters. It features a washing machine and a filling/capping machine, with outputs of 800-1500 bottles per hour.
Technical Specifications
Overview
High-Efficiency Large Volume Bottling Solution
This automatic washing, filling, and capping line is specifically engineered for large-format bottles ranging from 3 to 7 liters. It features a robust stainless steel 304L construction to meet cGMP standards, ensuring high hygiene levels for food or chemical applications. The system integrates advanced OMRON PLC controls and specialized anti-foaming nozzles to deliver a precise, bubble-free filling process at speeds up to 1500 bottles per hour.
Performance Highlights
Key Performance Metrics
1,500 BPH
Max Capacity
7 L
Max Bottle Volume
4 Pos
Work Positions
Technical Specifications
Machine Module Comparison
| Feature | Washing Machine (DW-5L) | Filling & Capping (DFC-5L) |
|---|---|---|
| Capacity | 800-1500 BPH | 800-1500 BPH |
| Bottle Volume Range | 3-7L | 3-7L |
| Power Consumption | 0.75 kW | 0.75 kW |
| Voltage | N/A | 220/380V |
| Air Supply Requirement | 400L/min @ 8 Bar | 600L/min @ 8 Bar |
Control & Automation
Control System
- OMRON PLC central controller
- User-friendly text screen interface
- No-bottle-no-filling safety mechanism
- No-bottle-no-capping safety mechanism
- Adjustable torque capping head for various lid types
Material & Construction
Material Quality
Stainless Steel 304LcGMP CompliantAnti-CorrosiveHygienic Design
Operational Features
- Filling Technology
- Shut-off nozzle with balance return system to prevent bubble formation.
- Capping Heads
- 1
