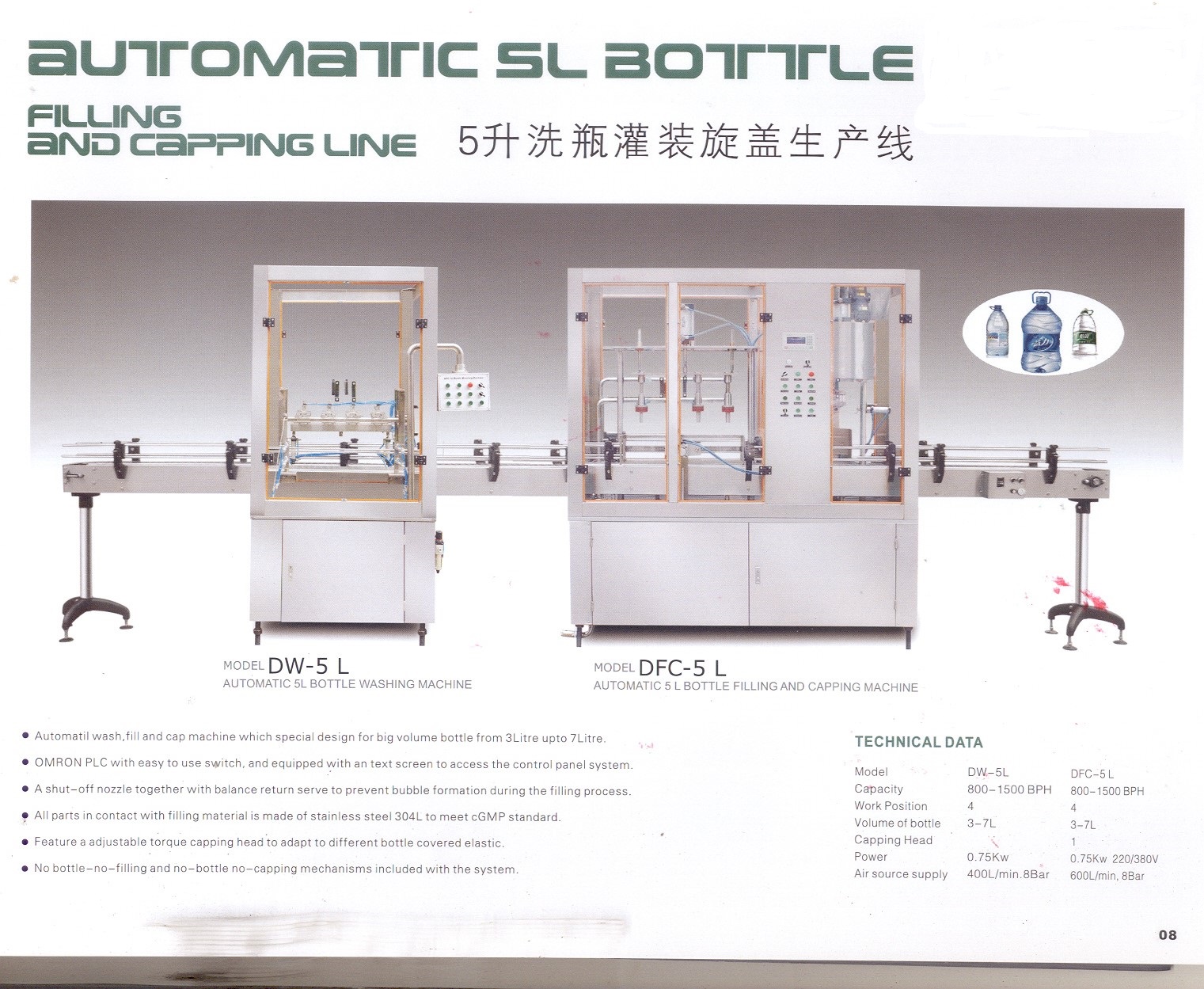

Automatic 5L Bottle Filling and Capping Line
This automatic line is designed for handling large volume bottles from 3 to 7 liters. It features an automatic wash, fill, and cap machine with stainless steel parts and a PLC control panel.
Technical Specifications
Overview
High-Efficiency 3L-7L Bottling Solution
This automatic washing, filling, and capping line is specifically engineered for large-volume containers ranging from 3 to 7 liters. The system integrates advanced OMRON PLC controls with an intuitive text screen interface to ensure precise operation across all stages. Built with stainless steel 304L contact parts, it meets cGMP standards, making it an ideal choice for the beverage, food, and chemical industries seeking reliable, high-capacity production.
Performance Metrics
Key Performance Indicators
1,500 BPH
Max Capacity
7 L
Max Bottle Volume
4 Qty
Work Positions
Technical Specifications
Technical Comparison
| Feature | DW-5L (Washing) | DFC-5L (Fill & Cap) |
|---|---|---|
| Capacity | 800-1500 BPH | 800-1500 BPH |
| Power | 0.75kW | 0.75kW (220/380V) |
| Air Source Supply | 400L/min @ 8Bar | 600L/min @ 8Bar |
| Bottle Range | 3-7L | 3-7L |
Control & Automation
Control System
- OMRON PLC with easy-to-use switches
- Integrated text screen control panel
- No-bottle-no-filling protection mechanism
- No-bottle-no-capping safety system
Construction & Design
Material Quality
Stainless Steel 304LcGMP CompliantTransparent Safety Enclosure
- Target Industries
- BeverageFoodChemical
Filling & Capping Features
- Filling Technology
- Shut-off nozzle with balance return to prevent bubble formation
- Capping Mechanism
- Adjustable torque capping head for various bottle cover elasticities
