Technical Specifications
Overview
High-Efficiency 3-10L Bottling Solution

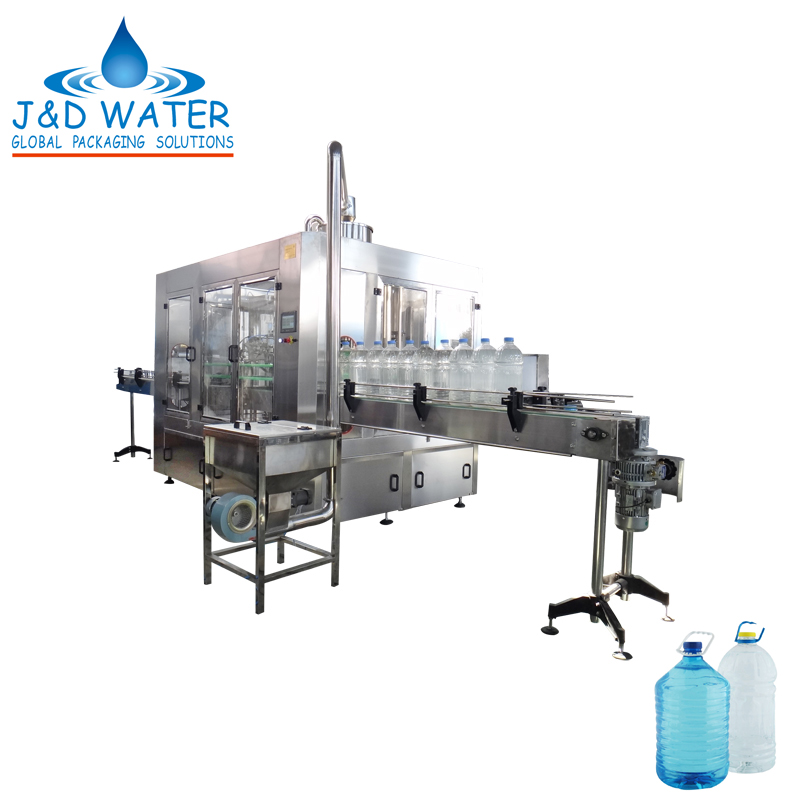

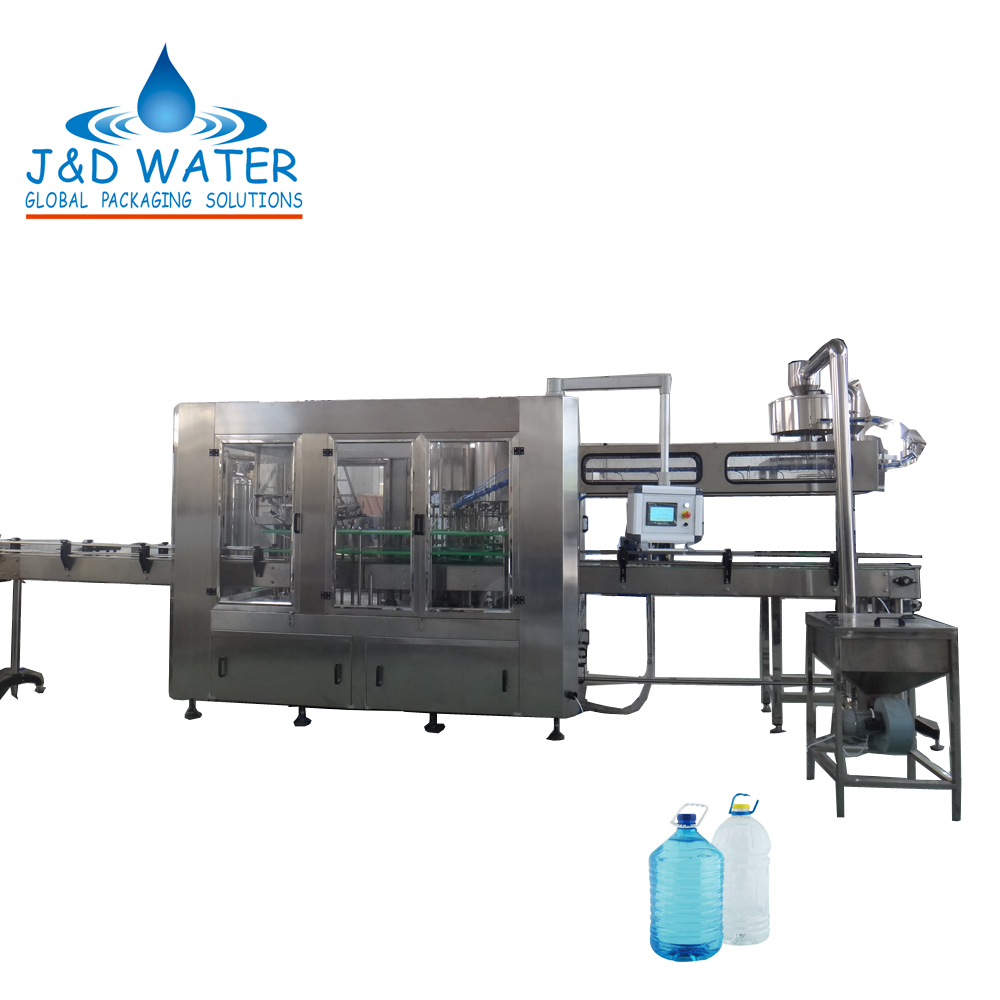

This automated system integrates washing, filling, and capping processes into a single streamlined machine, specifically designed for large-format bottles ranging from 3L to 10L. It is an ideal solution for the production of non-carbonated beverages such as mineral and purified water. With a flexible output range and advanced gravity filling technology, it ensures steady and accurate performance for high-volume beverage manufacturers.
Performance Metrics
Key Performance Metrics
4,000 BPH
Max Output
10 L
Max Bottle Size
0.6 Mpa
Gas Pressure
Technical Specifications
- Production Output
- 100 BPH - 4000 BPH
- Applicable Bottle Volume
- 3L to 10L
- Power Supply
- AC220V/380V±5% 50HZ/60HZ
- Operating Gas Pressure
- 0.5–0.6 Mpa
Key Features
Core Functionalities
- Integrated washing, filling, and capping stations
- Suspending bottle-neck clamping for high-speed stability
- Advanced gravity filling technology for accuracy
- Magnetic torque screw capping with stepless adjustment
- PLC program control with touch-screen HMI
- Stainless steel bottle grabs with interior wash nozzles
Material & Build
- Material Quality
- High quality stainless steel for all water-contact parts
- Electrical Components
- MitsubishiOmronPLC ControlledTouch-Screen HMI
Available Models
Series Models
| Model Series |
|---|
| JND 1-1-1 |
| JND 2-2-1 |
| JND 3-3-1 |
| JND 4-4-1 |
| JND 5-5-1 |
| JND 9-9-4 |
| JND 12-12-4 |
| JND 16-16-5 |
| JND 20-20-5 |
