Technical Specifications
Overview

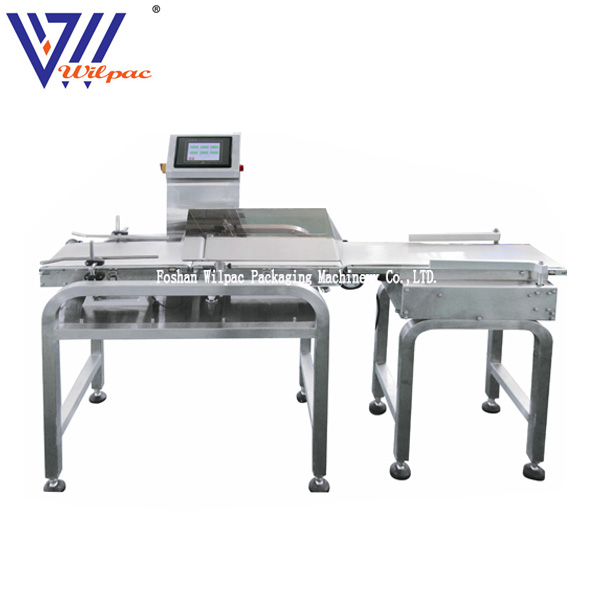

Automated Weight Checking System
This automated weight checking machine is designed for precise weight control and quality assurance on high-speed packaging lines. It features an intelligent construction with a quick-release design for easy maintenance, integrated with a PLC control system and an intuitive touch screen panel. The system automatically verifies if individual package weights meet preset standards and efficiently removes unqualified products using a rejection mechanism, making it ideal for food, pharmaceutical, and chemical industries.
Key Features
System Capabilities
- Intelligent auto program setting
- Detailed production record keeping
- Quick release design for maintenance
- PLC control system with touch screen interface
- Automatic rejection of unqualified products
Technical Specifications
Model Specifications
| Model | Weighing Range | Max Speed | Belt Size |
|---|---|---|---|
| WP-C200 | 5~200g | 100 PCS/min | L350*W160mm |
| WP-C1000 | 100~1000g | 80 PCS/min | L450*W220mm |
| WP-C2000 | 10~2000g | 80 PCS/min | L450*W300mm |
| WP-C6000 | 10~6000g | 70 PCS/min | L650*W400mm |
Performance Metrics
55 m/min
Max Belt Speed
1 XIII(1)
Accuracy Class
- Rejection Methods
- Air blowingArm-rejectPneumatic pusherSlide type
Power & Dimensions
- Power Supply
- 220V / 50(60)Hz
