Automated Steel Roll Forming Machine for Roofing and Wall Panels
This automated steel roll forming machine efficiently produces roofing and wall panels. Its robust design and automated system ensure consistent quality and high throughput.
Technical Specifications
Overview
Automated Steel Roll Forming Machine
This automated steel roll forming machine is engineered for high-precision shaping of iron sheets, making it an ideal solution for producing roofing sheets and wall panels. Featuring a robust construction with multiple forming stations and a high-speed rolling mechanism, it ensures consistent quality and minimal material waste. The system is equipped with advanced PLC controls and an automatic cutting system, providing efficient, high-throughput production for building material applications.
Technical Specifications
Production Capacity
15 m/min
Max Speed
Supported Feeding Widths
- 900
- 915
- 1,000
- 1,200
- 1,220
- 1,250
- Rolling Thickness
- 0.2 - 1.0 mm
- Dimensions (L*W*H)
- 6500 x 1300 x 1100 mm
- Machine Weight
- 1 T
- Roller Stations
- 17

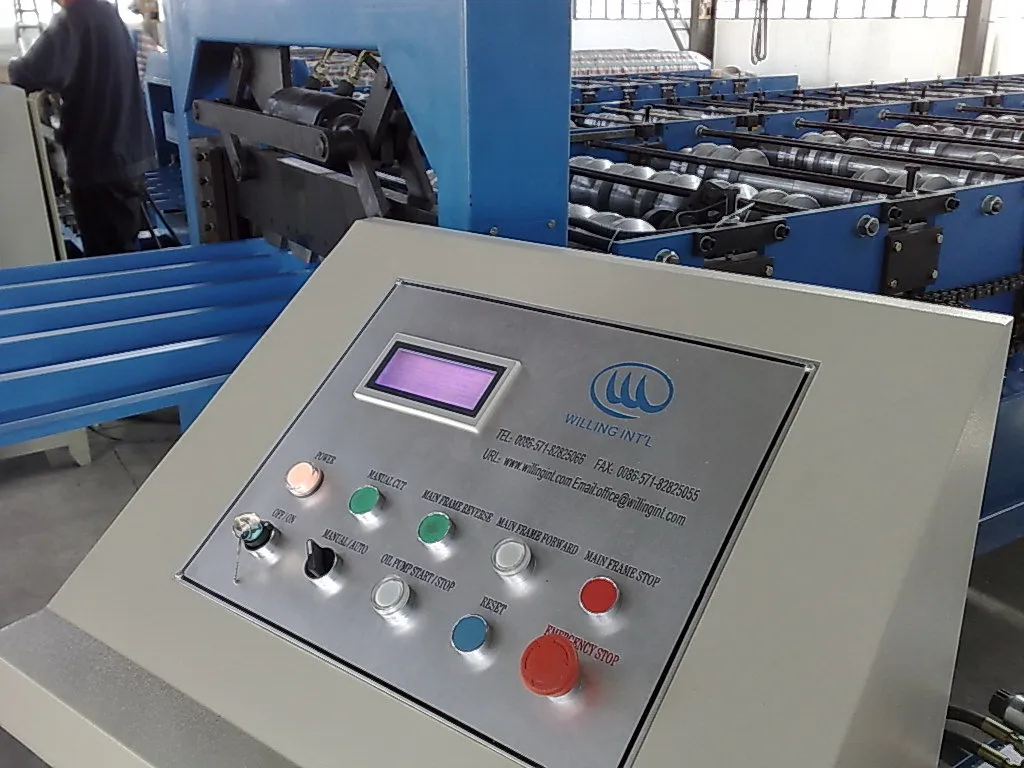

Operation & Control
Key Features
Remote MonitoringAutomated CuttingPLC Control
- Core Components
- PLCMotorEnginePressure Vessel
- Voltage
- 380V
Compliance & Service
After-sales Support
- Video technical support
- Online support
- Field maintenance and repair
- Field installation and commissioning
- Overseas engineer service
- Certifications
- CEISO
- Warranty
- 1 Year (Machine & Core Components)
