Technical Specifications
Overview
High-Efficiency AAC Block Production
This Autoclaved Aerated Concrete (AAC) production line is a comprehensive, automated system designed for the large-scale manufacturing of lightweight concrete blocks. The line integrates raw material processing, precision batching, advanced cutting, and high-pressure steam curing to ensure consistent product quality. With an annual capacity of 200,000 cubic meters, it offers a reliable solution for producing high-strength, dimensionally accurate building materials.
Production Capacity
Annual Output
200,000 m³
Annual Capacity

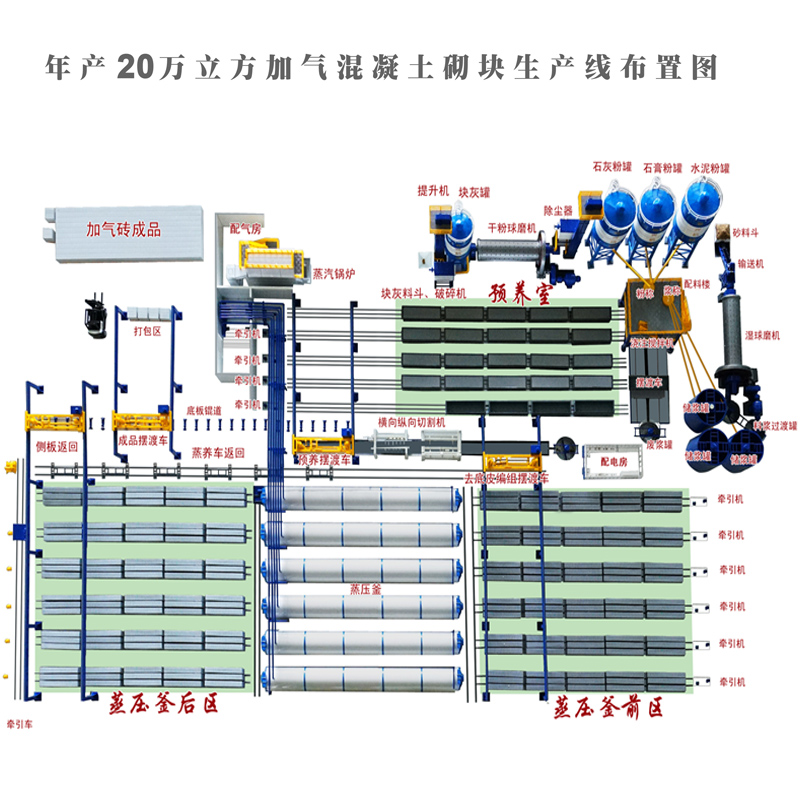

Key Components
Raw Material Equipment
- Silos for lime, gypsum, and cement powder
- Dry powder ball mills
- Wet ball mills
- Crushers
- Elevators and conveyors
- Slurry transition tanks
Processing & Handling
- Batching and mixing building
- Horizontal and vertical cutting machines
- Autoclaves for high-pressure curing
- Steam boilers
- Transfer cars and traction machines
- Packaging and stacking area
Process Flow
Production Stages
| Stage | Description |
|---|---|
| Material Preparation | Crushing and milling of lime, gypsum, and sand into powder or slurry. |
| Batching & Casting | Precise mixing of materials and casting into molds. |
| Pre-curing & Cutting | Initial hardening in pre-curing rooms followed by precise wire cutting. |
| Autoclaving | High-pressure steam curing in autoclaves to achieve final strength. |
| Handling | Separation of finished blocks and final packaging for transport. |
Technical Features
Automation Level
Fully Automated FlowIntegrated Quality ControlPrecision Batching
- Infrastructure Requirements
- Power Distribution RoomSteam Boiler SystemDust Collection SystemPre-curing Rooms
