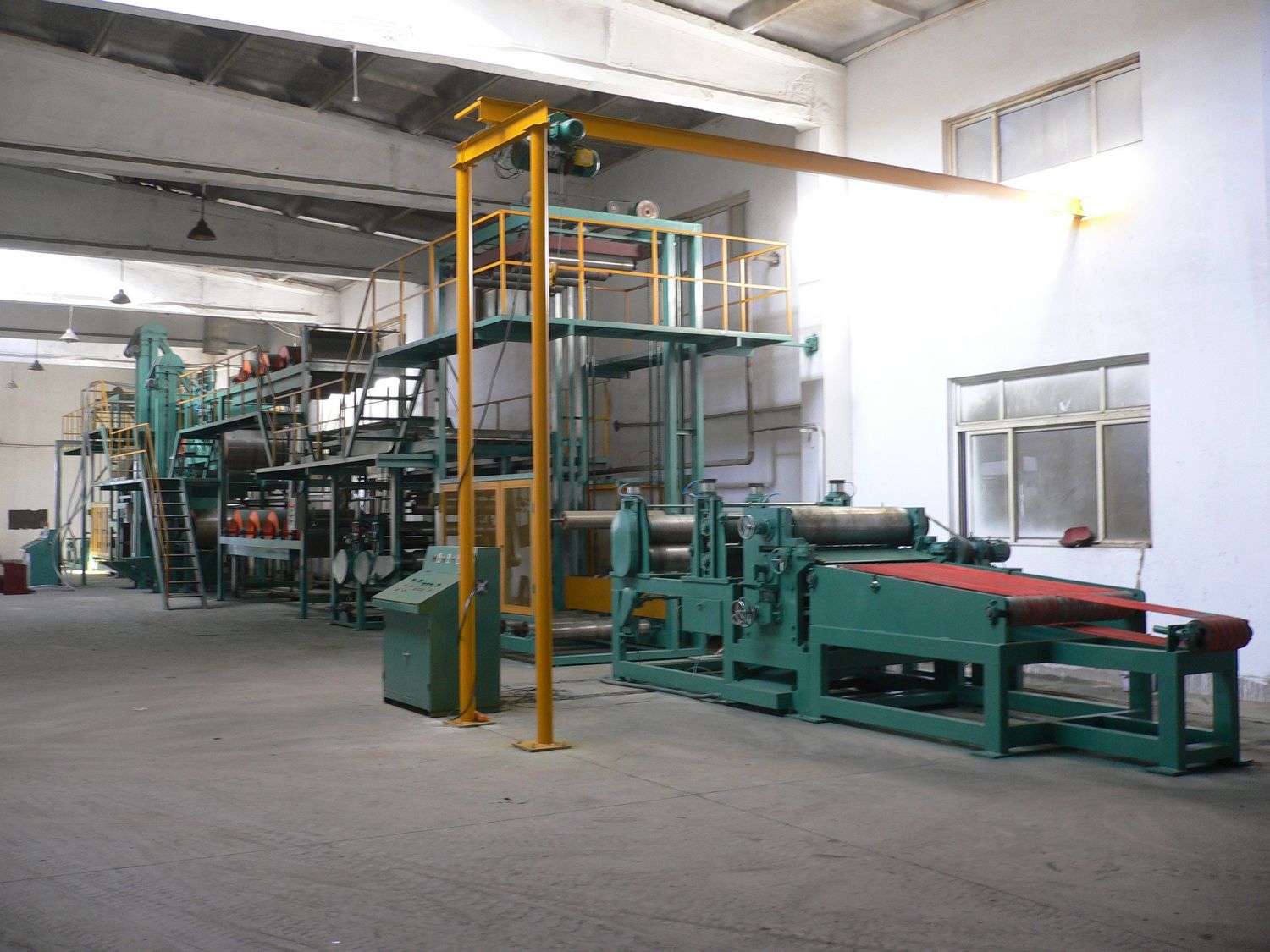

Asphalt Shingle Manufacturing Line
This asphalt shingle production line is engineered for the continuous manufacturing of asphalt shingles. The system applies an asphalt coating to a fiberglass mat, followed by granule application, cooling, cutting, and stacking.
Technical Specifications
Overview
High-Efficiency Shingle Production
This asphalt shingle production line is engineered for the continuous, high-volume manufacturing of roofing materials. The system integrates a comprehensive multi-stage process, from raw material feeding and mixing to precision asphalt coating, granule application, cooling, and final cutting. Designed for consistency and durability, it features a robust steel frame construction and automated controls to ensure reliable output and product quality.
Process & Automation
Manufacturing Stages
- Raw material feeding and mixing
- Asphalt coating application
- Granule application
- Cooling tunnel processing
- Precision cutting and sizing
- Material stacking and collection
- Control Parameters
- Line Speed AdjustmentCoating Thickness ControlGranule Density ControlAutomated Conveyor Systems
Construction & Design
Construction Details
Robust Steel FrameAdjustable RollersSafety Protective Guards
Safety & Compliance
Safety Equipment
- Emergency stop buttons
- Protective safety guards
