Arch Sheet Roof Building Machine
This arch sheet roof building machine is designed for constructing arched roofs on-site. It forms and curves metal sheets into arched shapes, allowing for rapid and efficient roof construction.
Technical Specifications
Overview

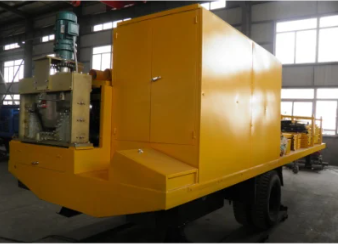

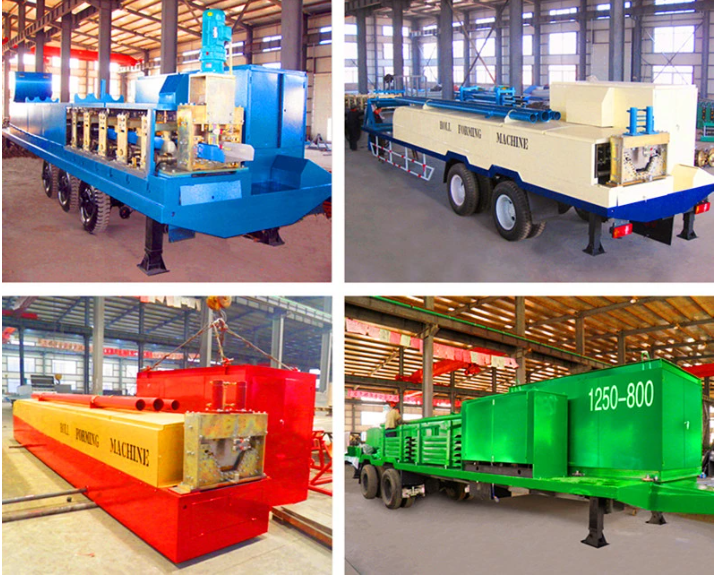

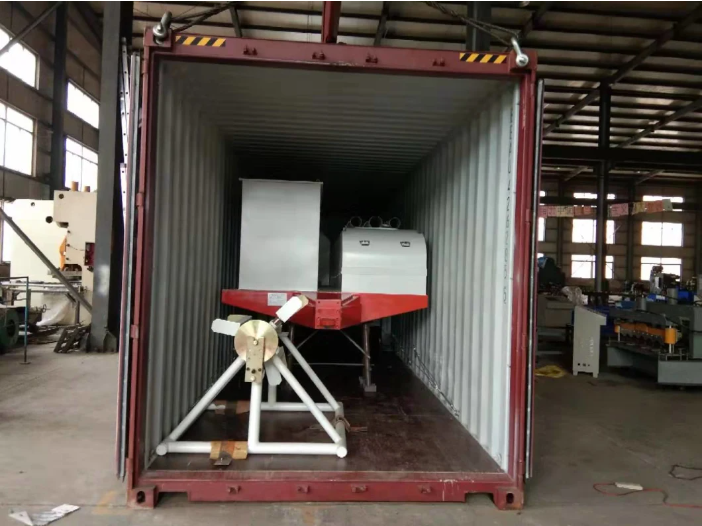

Mobile Arch Roof Production System
This arch sheet roof building machine is a self-contained, mobile solution designed for the on-site construction of large-span arched roofs. It eliminates the need for traditional trusses by forming and seaming metal sheets into self-supporting structures, making it ideal for warehouses and agricultural facilities. The system is mounted on a trailer for easy transportation and features a professional-grade control system for precise, automated operation.
Performance Metrics
Operational Speeds
15 m/min
Forming Speed
13 m/min
Bending Speed
16 m/min
Seaming Speed
Technical Specifications
Power Requirements
| Component | Power Output |
|---|---|
| Total Motor Power | 15.2 KW |
| Roll Forming Motor | 5.5 KW |
| Cutting Power | 3.0 KW |
| Bending Power | 3.0 KW + 1.5 KW |
| Seaming Power | 1.1 KW + 1.1 KW |
- Machine Dimensions
- 8900mm x 2100mm x 2300mm (With Single Axle 4 Tires)
- Total Weight
- 10 Ton
Material Processing
Material Capabilities
| Parameter | Specification |
|---|---|
| Feeding Width | 600 mm |
| Effective Width | 305 mm |
| Coil Thickness | 0.5 - 1.6 mm |
| Using Rate | 50.8% |
Construction Quality
Component Materials
- Roller: 45# High-Quality Steel (Quenched HRC 55~65, Hard Chrome Plated)
- Shaft: 45# High-Quality Steel (Galvanized)
- Cutting Blade: 12CrMov Material (Heat Treated)
- Bending Leaf: 10mm Thickness (CNC Processed)
Operational Features
Cutting Method
Mechanical CuttingLength-Set Cutting
- Molding Steps
- 13 + 1 Steps
Service & Support
- Support Services
- Overseas Technical GuidanceCustom Design EngineeringIn-house Accessory ManufacturingAfter-sales Follow-upSafety Export Standard Compliant
Workflow

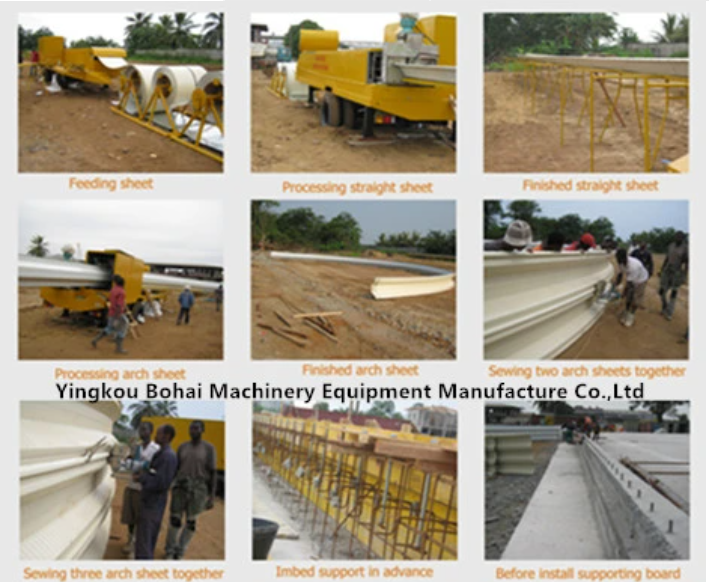

Construction Workflow
- Feeding sheet metal
- Processing into straight sheets
- Forming into arched profiles
- Sewing multiple arch sheets together

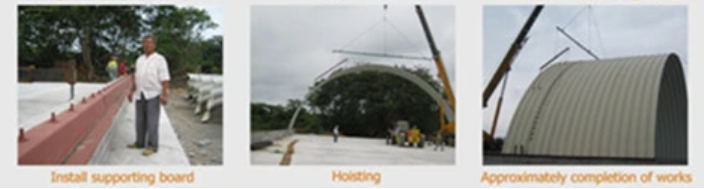

- Hoisting and installation on pre-embedded supports
