Arch Roof Span Forming Machine

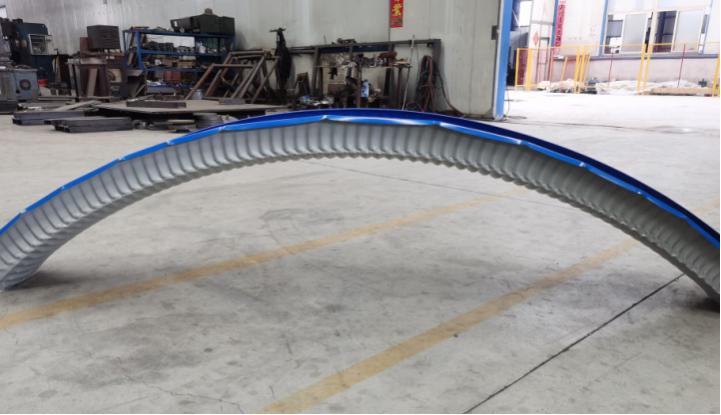

This machine efficiently produces arch-shaped roof panels directly on construction sites, effectively lowering project costs. It is widely used for mid- and small-scale construction projects such as factories, warehouses, and gymnasiums.
Technical Specifications
Product Overview
Mobile Arch Roof Fabrication Solution

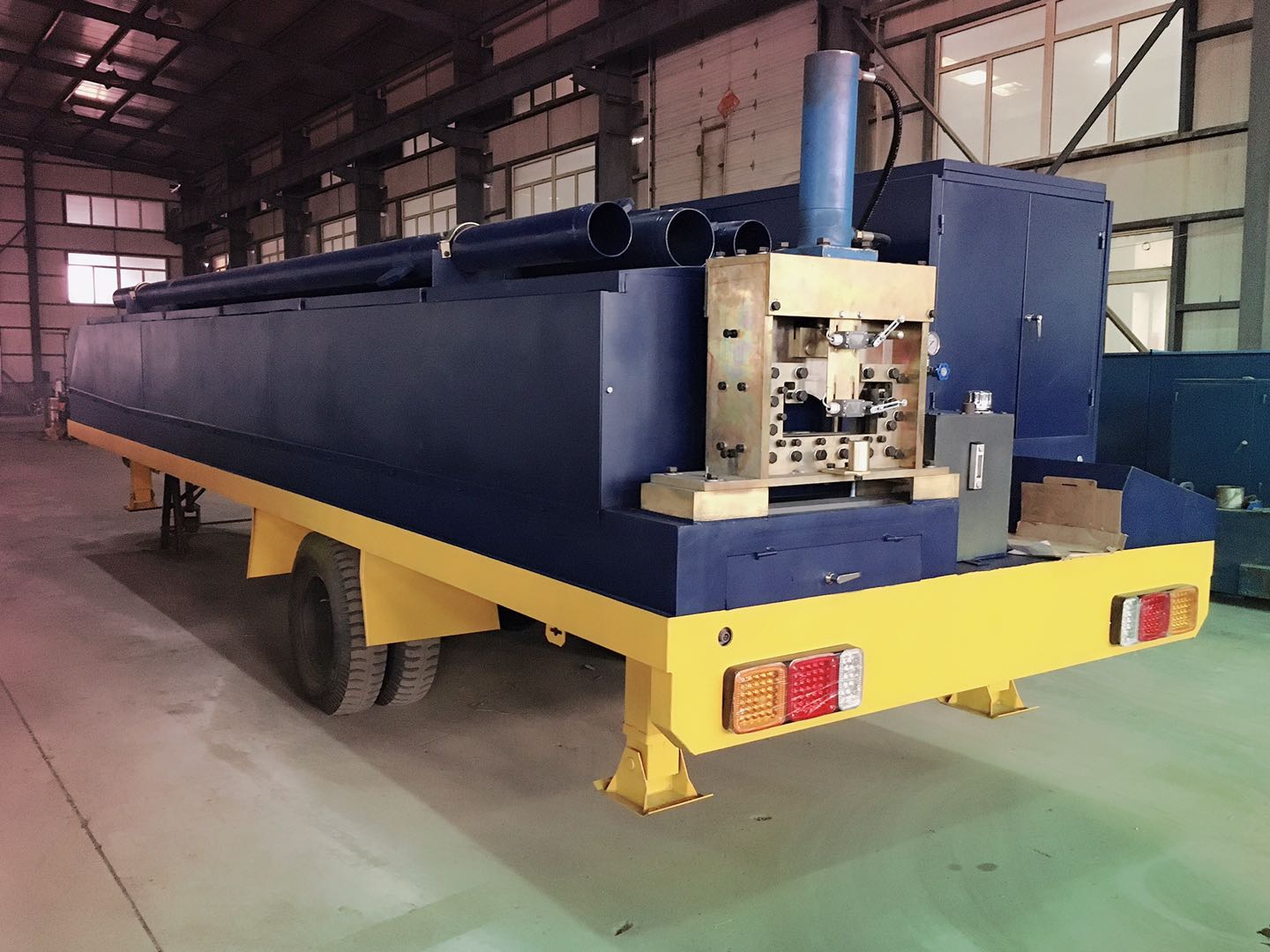

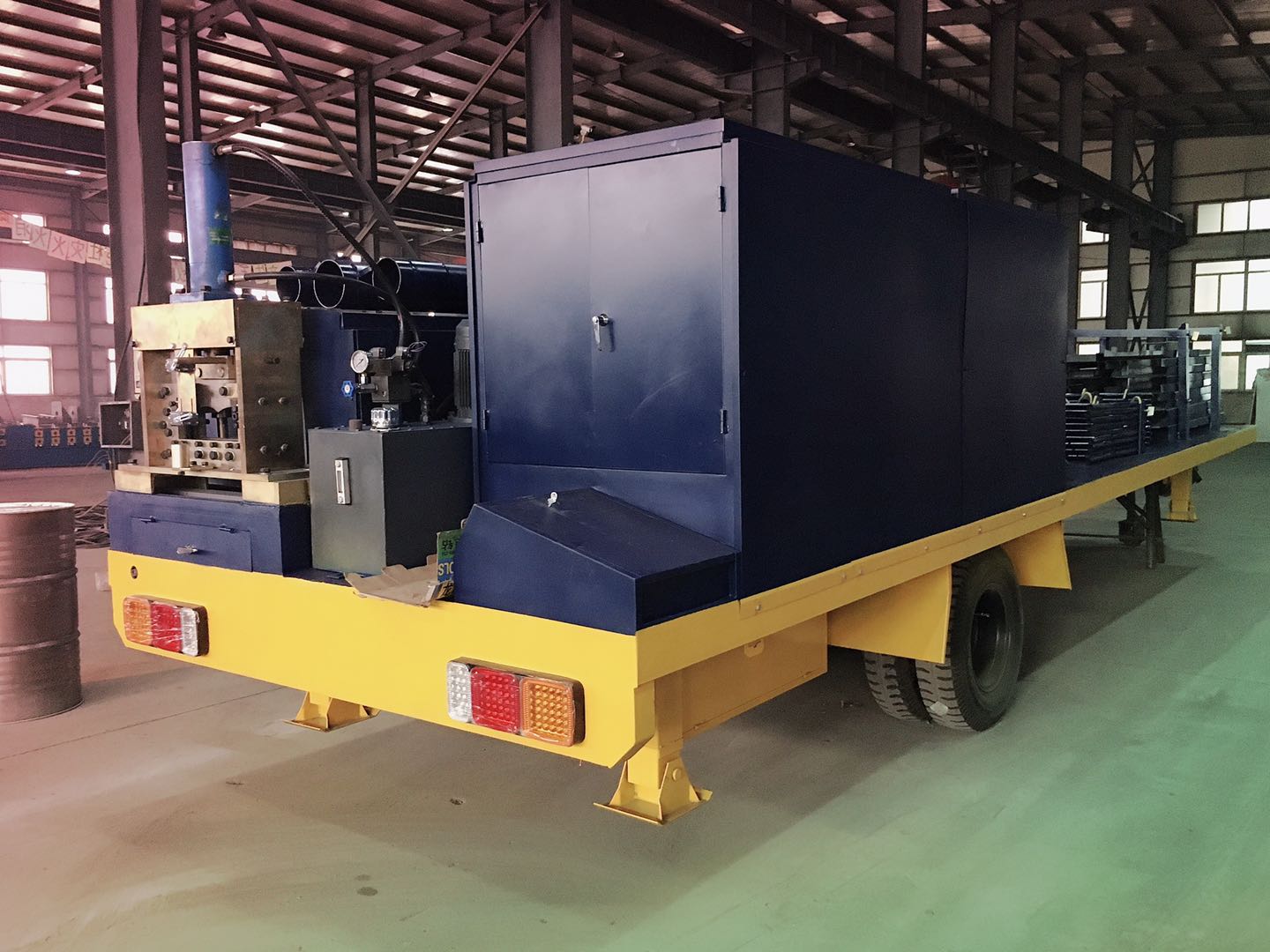

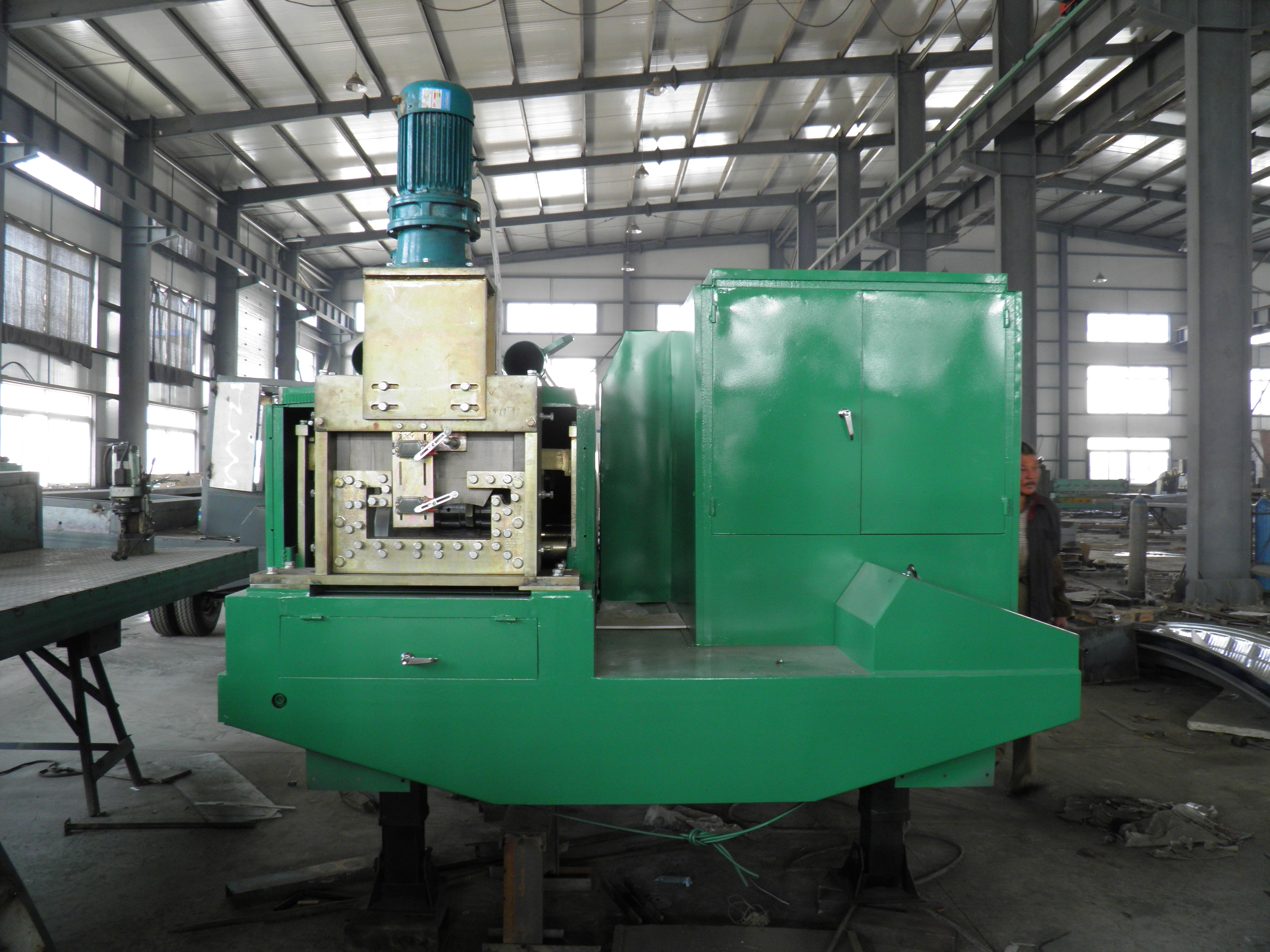

The BH-600-305 is a high-performance mobile factory designed for on-site production of self-supporting arched roof structures. By forming metal sheets directly at the construction site, it effectively lowers project costs and streamlines logistics for mid-scale to small-scale buildings. This machine is engineered with automotive-style axles for superior durability and a longer service life compared to standard straight-shaft alternatives.
Key Performance Metrics
Key Metrics
600 mm
Feeding Width
305 mm
Effective Width
10 Ton
Total Weight
50.8 %
Material Utilization
Technical Specifications
- Machine Dimensions
- 8900mm x 2230mm x 2300mm
- Processing Thickness
- 0.5 - 1.5mm
- Groove Depth
- 109 mm

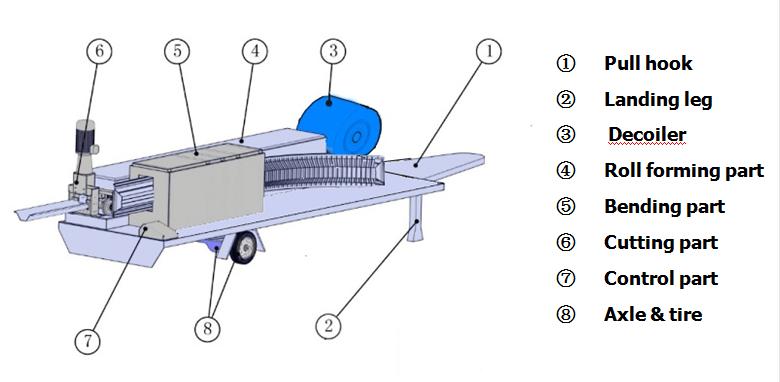

Components & Construction
Chassis Design
- Single Axle (Car-style design)
- 4 Tires for stable transport
- Integrated pull hook
- Adjustable landing legs
- Bending Leaf
- 10mm thickness, CNC processed
- Cutting Blade Material
- 12CrMov with Heat Treatment
- Cutting Type
- Mechanical or Hydraulic Cutting
Applications
- Typical Applications
- FactoriesWarehousesGaragesGymnasiumsExhibition CentersCinemasTheatres
Workflow

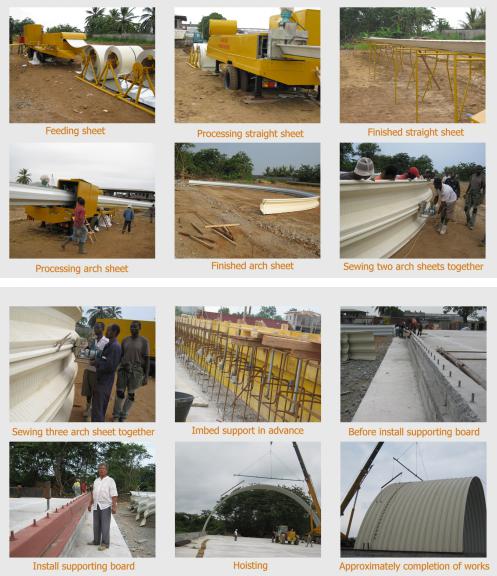

Operational Process
- Material feeding from decoiler
- Straight sheet roll forming
- Arch profile bending
- Precision cutting to length
- On-site sewing of multiple arch sheets
- Hoisting and installation
Compliance
Safety & Quality Standards
CE CertifiedDirective 2006/42/ECEC-Attestation of Machine SafetySGS CertifiedPatent Protected
