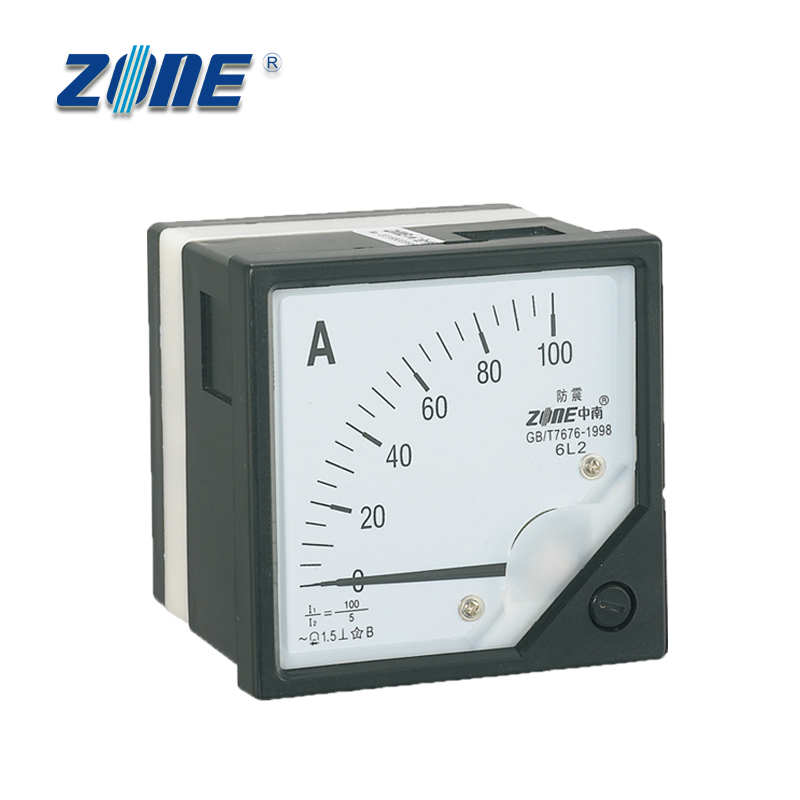

Analog Ammeter Panel Meter
This analog ammeter panel meter indicates current levels in electrical circuits. It features a clear, easy-to-read scale and durable construction for accurate measurements.
Technical Specifications
Overview
Professional Analog Panel Meter
This series of analog panel meters is engineered for reliable monitoring in power stations, distribution boards, and industrial control equipment. Designed to perform consistently even in damp and hot environments, these meters provide clear visual trend tracking for electrical measurements. The unit features a durable, shock-resistant construction and adheres to rigorous national standards for accuracy and safety.
Technical Specifications
Accuracy Class
1.5 Class2.5 Class
- Compliance Standard
- GB/T 7676.1 ~ 9
- Damping Time
- 4 s
Environmental Ratings
- Operating Temperature
- -20 to +40
- Relative Humidity
- ≤85% (at 25°C)
Mechanical Properties
Mechanical Shock Resistance
30 m/s2
Acceleration
120 times/min
Max Impact Frequency
- Installation Method
- Bolt fastening
- Operating Position
- Vertical
Dimensions
Dimension Specifications
| Measurement Type | Dimension |
|---|---|
| Outline Dimension | 80mm x 80mm |
| Portiforium (Cutout) Dimension | 76mm x 76mm |
Testing & Safety
Puncture Test Specs
- Frequency: 50Hz
- Voltage: 2000V
- Duration: 1 minute
