Aluminum Gas Meter G1.6 G2.5
This gas meter is designed for precise measurement of gas consumption in residential and commercial settings. Its robust aluminum build ensures durability and reliable long-term performance.
Technical Specifications
Overview

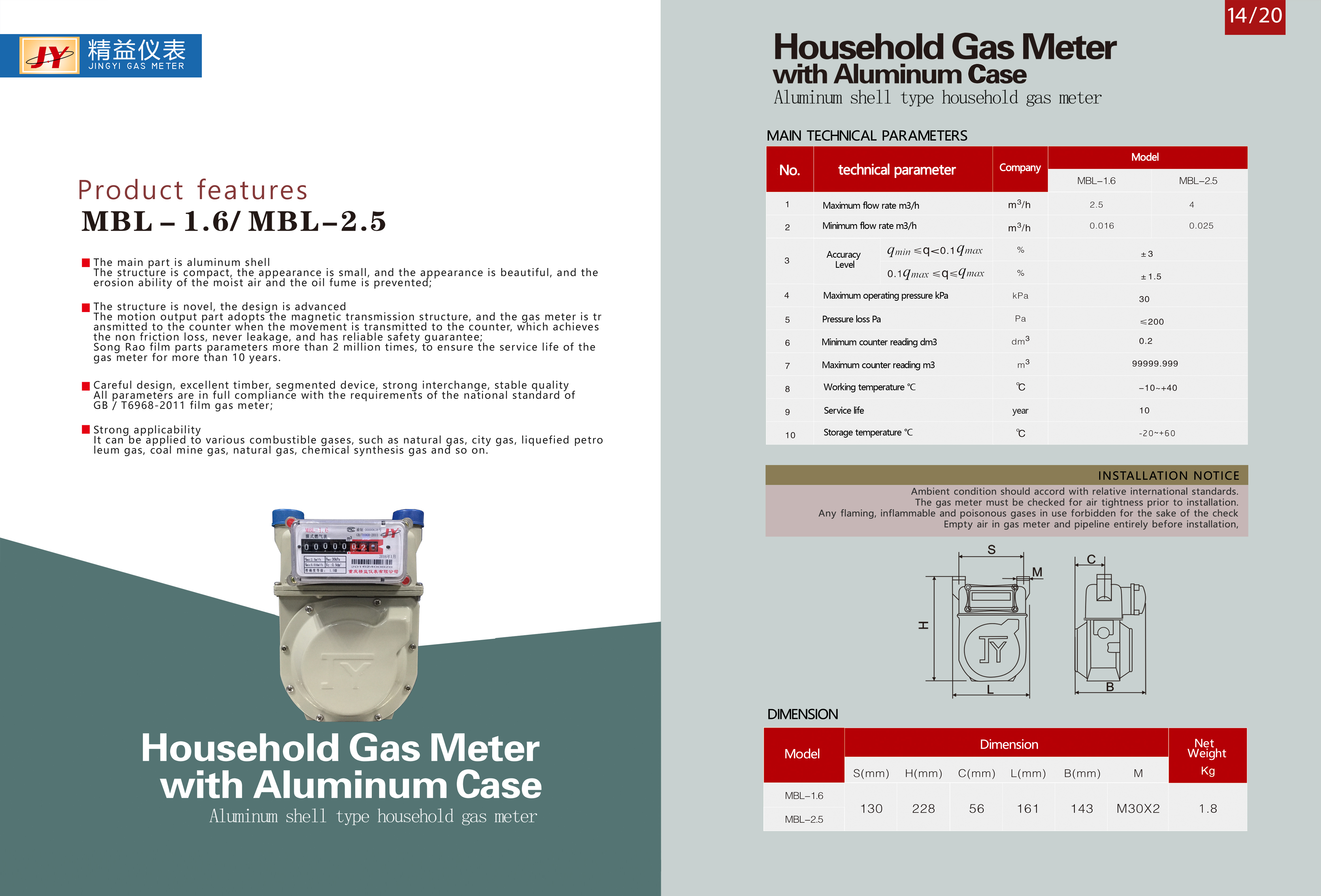

High-Precision Aluminum Gas Meter
This positive displacement gas meter is engineered for accurate measurement of gas consumption in both residential and commercial settings. Featuring a robust aluminum shell, it offers exceptional durability, corrosion resistance, and a compact design suitable for various environments. The advanced magnetic transmission structure ensures reliable, leak-free operation, while the high-precision counter provides clear and precise volume tracking.
Technical Specifications
Performance Metrics
Accuracy Standards
| Flow Range | Accuracy Level |
|---|---|
| qmin ≤ q < 0.1qmax | ±3% |
| 0.1qmax ≤ q ≤ qmax | ±1.5% |
Environmental Conditions
- Working Temperature: -10°C to +40°C
- Storage Temperature: -20°C to +60°C
- Pressure Loss: <200 Pa
Compatibility & Features
Key Design Features
- Compatible Gases
- Natural GasCity GasLiquefied Petroleum GasCoal Mine GasChemical Synthesis Gas
Installation & Maintenance
Installation and Safety
Ensure the installation environment complies with relevant international standards. Prior to installation, the gas meter must be checked for air tightness, and all air must be emptied from the meter and pipelines. The use of flaming, inflammable, or poisonous gases during testing is strictly forbidden.
