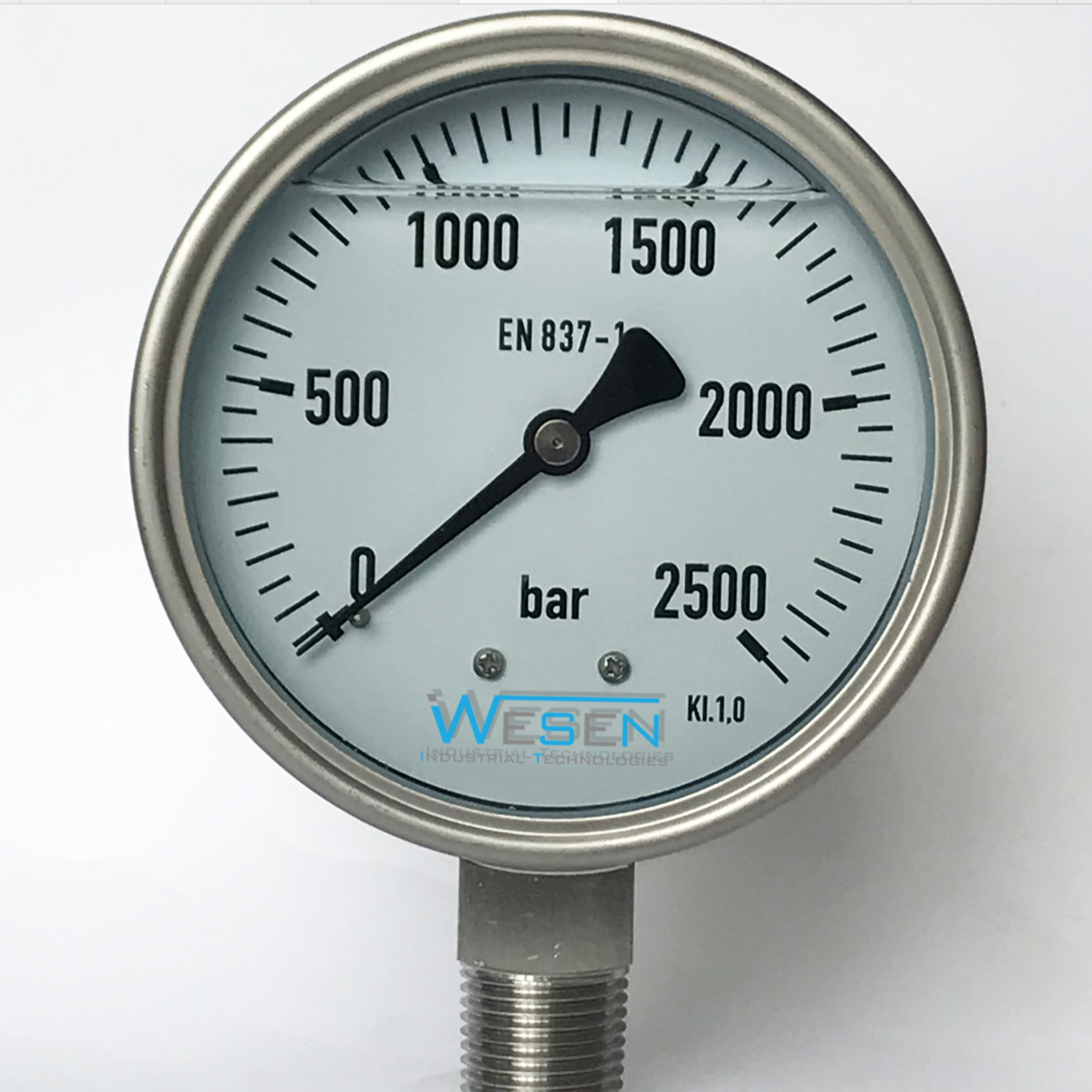

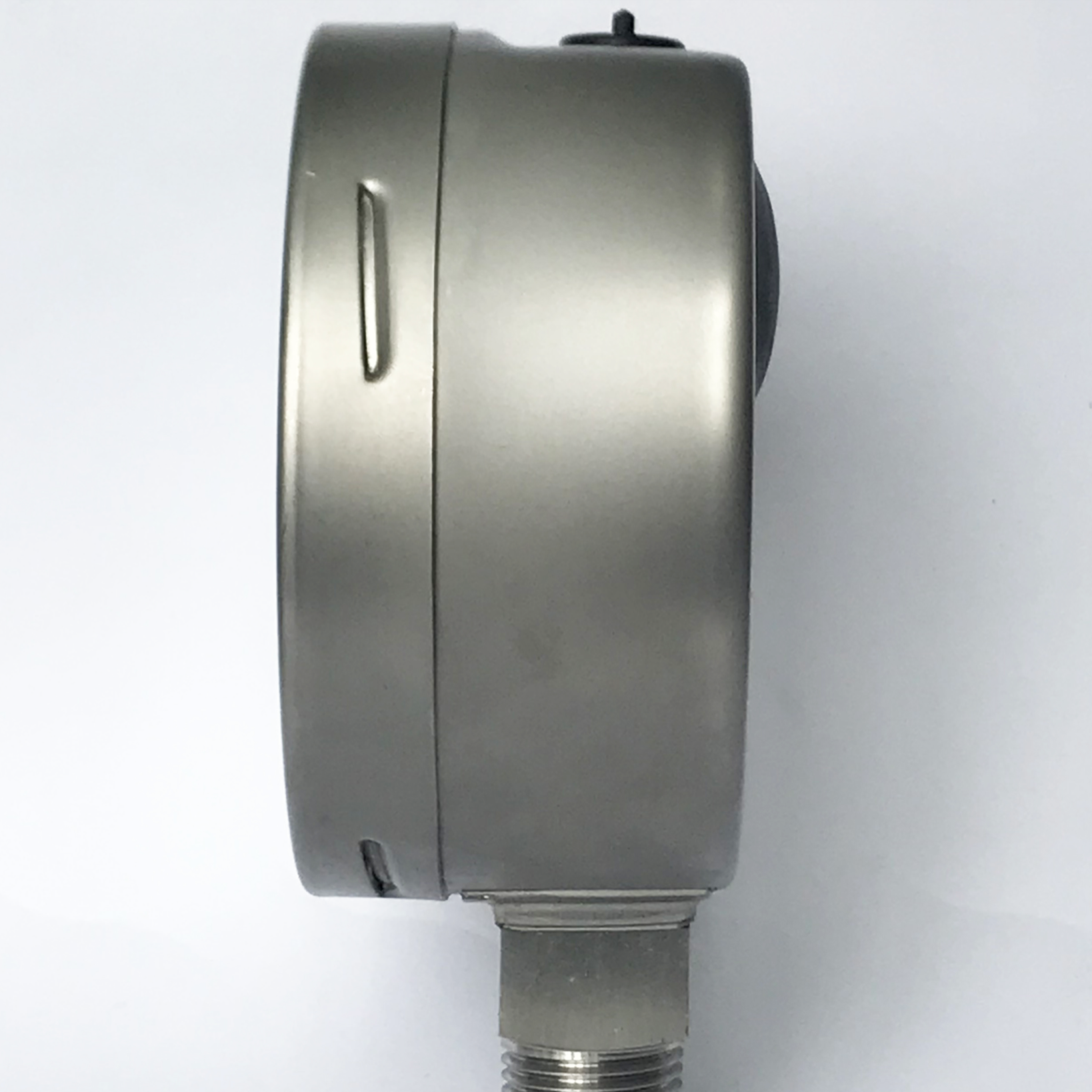

All Stainless Steel Pressure Gauge
This pressure gauge is constructed entirely from stainless steel for corrosion resistance and durability. It accurately measures pressure with a clear dial, suitable for hydraulic, pneumatic, and process control applications.
Technical Specifications
Product Overview
Robust Industrial Pressure Monitoring
This all-stainless steel pressure gauge is engineered for demanding industrial environments where corrosion resistance and long-term durability are critical. With a robust stainless steel housing and wetted parts, it is suitable for aggressive media found in chemical processing, oil and gas, and food and beverage applications. The gauge ensures accurate and reliable pressure readings across a wide range of hydraulic, pneumatic, and process control systems.
Technical Specifications
Available Dial Sizes
- 1.5"
- 2"
- 2.5"
- 3.5"
- 4"
- 5"
- 6"
- 8"
- 10"
- Pressure Range
- -1 to 1000 bar (customizable)
- Mounting Styles
- BottomBackLower Back
- Thread Standards
- PTNPTG
Performance & Compliance
Accuracy Class
1 KI
Accuracy Class
Compliance
EN 837-1
Physical Construction
Window Options
- Glass
- Tempered glass
- Safety glass
- PC glass
- Acrylic
Internal Components
| Component | Material |
|---|---|
| Movement | SS304 |
| Bourdon Tube | SS316 |
| Connection | SS316/SS304 |
- Case Material
- SS304SS316
- Fill Liquid
- GlycerinSilicone Oil
