AC Moving Coil Rectangular Panel Power Meter

This power meter utilizes a moving-coil meter with a built-in measuring transducer. It measures active or reactive power in AC power networks using a magnetoelectric measuring system.

Request a Quote Download PDFPDF

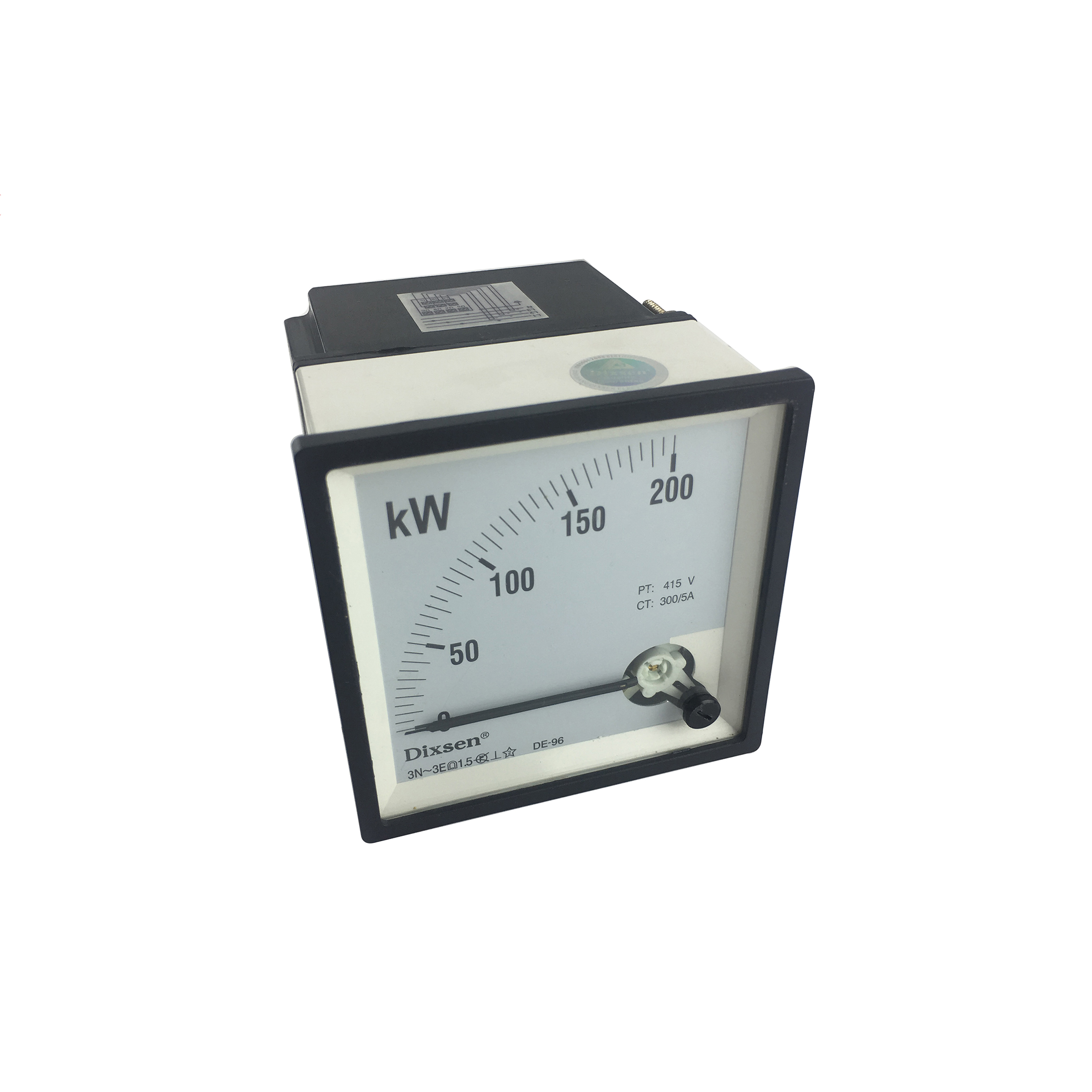

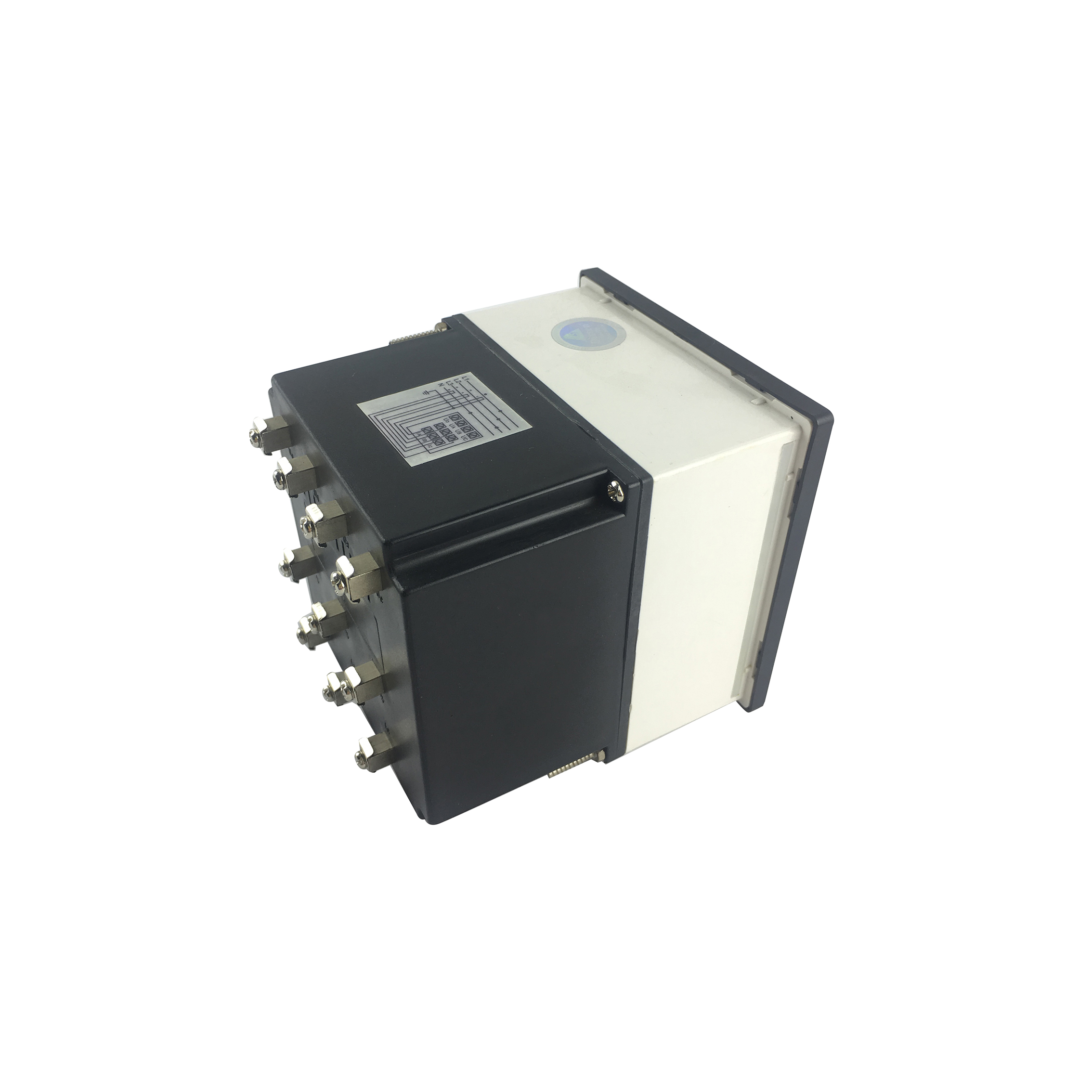

AC Moving Coil Panel Meters Rectangular Analog Power Meter 3p3w Or 3p4w - Image 1

Technical Specifications

Product Overview

Precision Power Monitoring

This rectangular analog power meter is engineered for accurate measurement of active or reactive power in AC power networks. Utilizing a robust moving-coil mechanism, it provides reliable readings for industrial and commercial energy management. The unit is designed for panel mounting and supports both 3-phase 3-wire and 3-phase 4-wire electrical systems.

Technical Specifications

Mounting Type

Panel Mount

Measurement Type: Active or Reactive Power
Compatible Networks: 3-Phase 3-Wire3-Phase 4-Wire
Potential Transformer (PT) Rating: 415 V
Current Transformer (CT) Ratio: 300/5A
Full Scale Range: 200 kW
Display Mechanism: Magnetoelectric (Moving-Coil)
