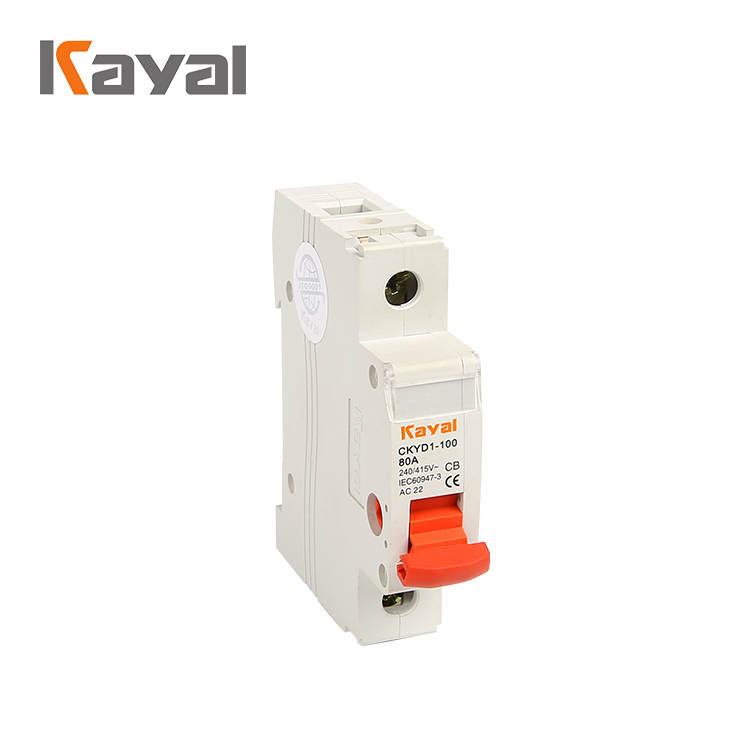

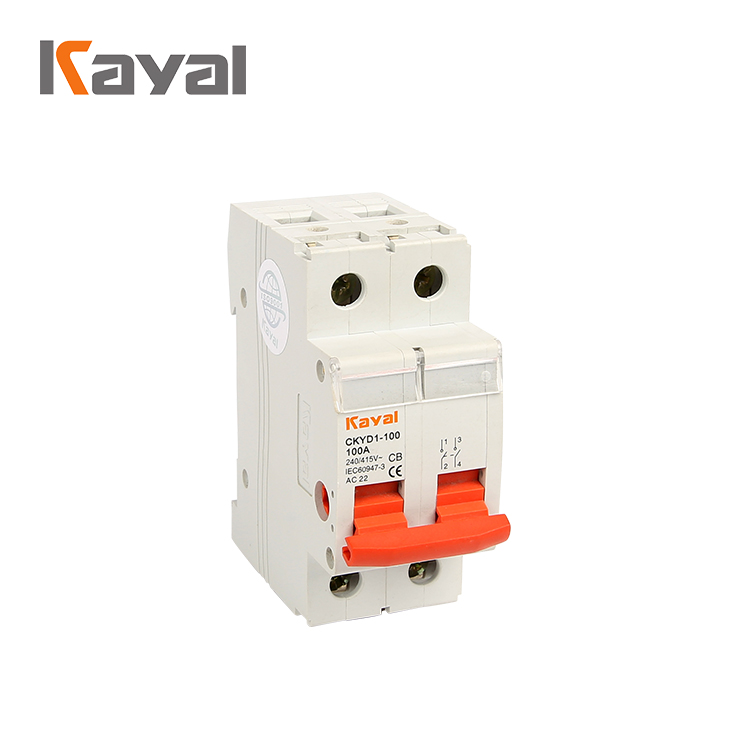

AC Isolator Switch
This AC isolator switch is designed for isolating electrical circuits. It offers reliable performance and overload protection.
Technical Specifications
Overview
High-Performance AC Isolator Switch
This AC Isolator Switch is designed for reliable electrical power transmission and distribution in industrial, commercial, and residential settings. It features a thermosetting material shell for high mechanical stability, excellent corrosion resistance, and superior heat and arc resistance. With a double contact design and spring energy storage mechanism, it ensures safe and efficient circuit isolation.
Key Features
Technical Highlights
125 A
Max Rated Current
230 V
Rated Voltage
415 V
Max System Voltage
Technical Specifications
Utilization Category
AC-22

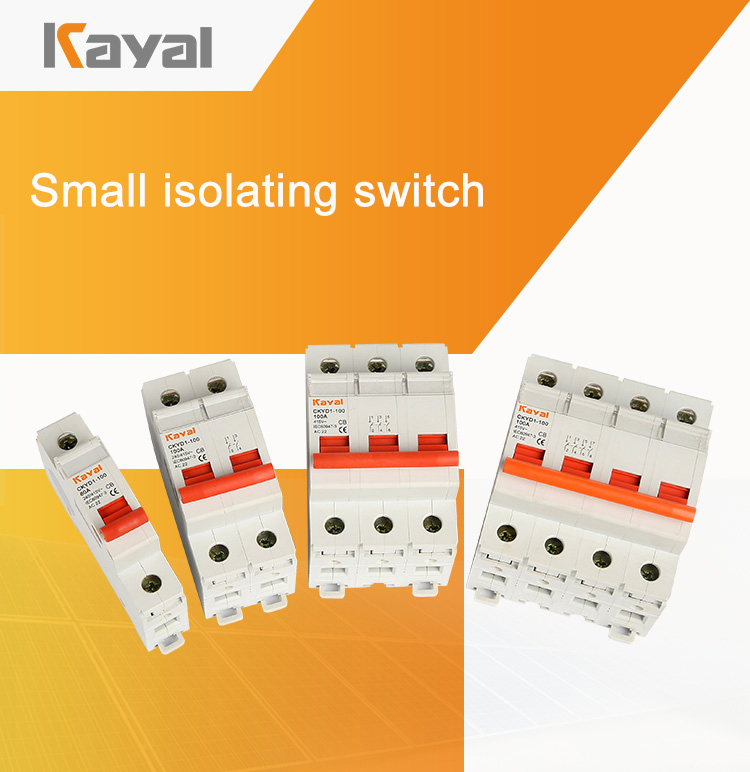

Available Poles
- 1 Pole
- 2 Pole
- 3 Pole
- 4 Pole
- Model Series
- SGT8-125 / CKYD1-100
- Standards Compliance
- IEC60947-3CECB

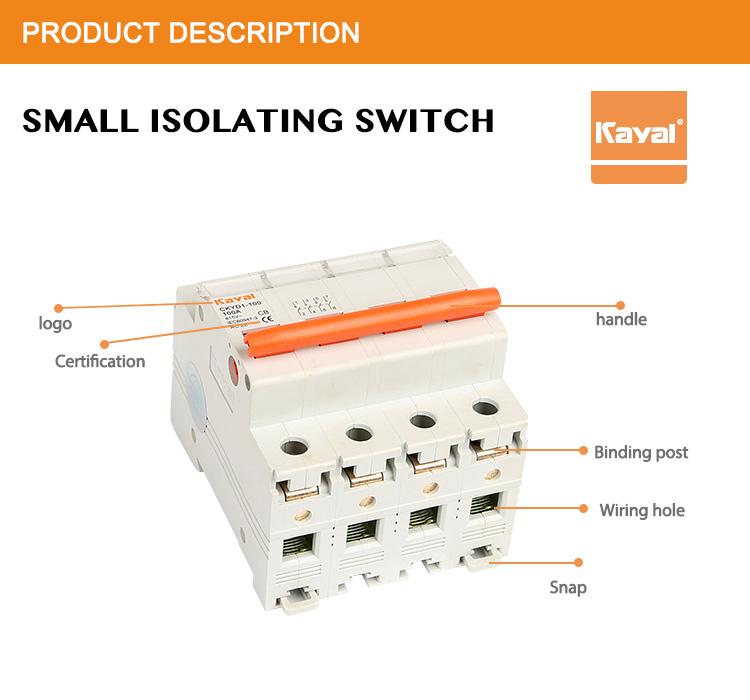

Design & Construction
Mechanical Features
- Double contact design
- Spring energy storage mechanism
- Visible ON/OFF handle indication
- Secure binding post terminals
- Enclosure Material
- Thermosetting material with high arc resistance
- Mounting Method
- DIN Rail Mounting
Applications
Application Scope
- Floor distribution boxes
- Telecommunications rooms
- Elevator control centers
- Industrial automation systems
- Hospital operating rooms
- Data and computer centers
Safety & Protection
Protection Capabilities
- Overload protection
- Double wire disconnect functionality
- High segment construction
