AC Contactor - SGC1-F Series
AC contactors connect/disconnect lines and frequently control motors and other equipment. When working with a thermal relay, it controls large current with small current and provides overload protection.
Technical Specifications
Product Overview

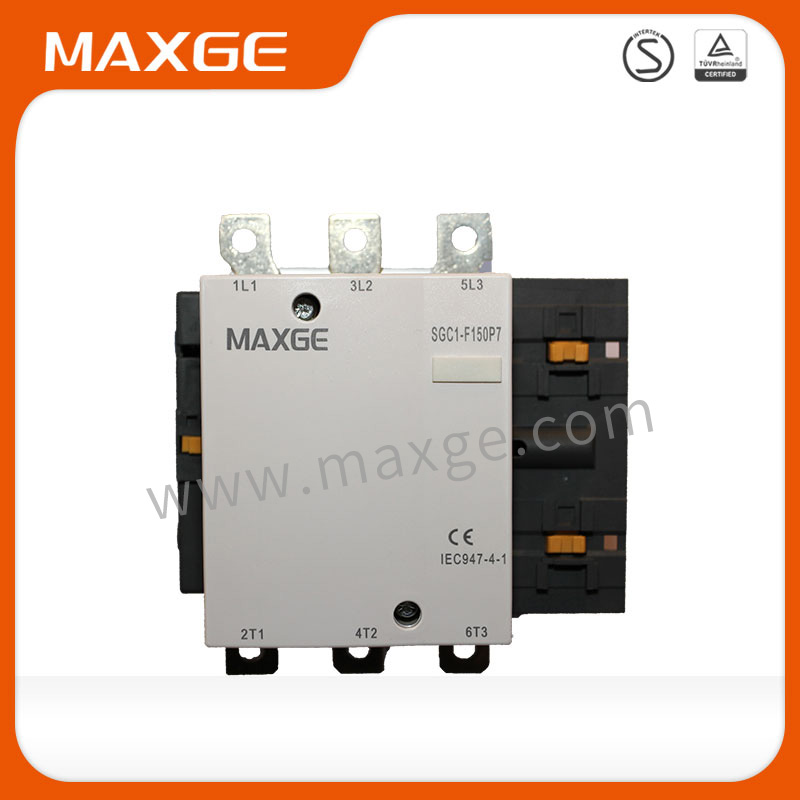

SGC1-F Series AC Contactor
The SGC1-F series AC contactor is engineered for the reliable connection and disconnection of electrical lines, making it an essential component for controlling motors and other industrial equipment. It effectively manages high current loads using a low-current control signal and integrates seamlessly with thermal relays to provide robust overload protection. Designed for industrial environments, this contactor ensures consistent performance and safety in demanding switching applications.
Technical Specifications
Degree of Protection
IP20
- Compliance Standard
- IEC60947-4-1
- Rated Frequency
- 50 Hz
- Utilization Category
- AC-3AC-4
- Operating Temperature
- -5°C to +40°C
Electrical Ratings
- Maximum Rated Current
- 800 A
- Maximum Rated Voltage
- 1000 V
- Pick-up Voltage Range
- 85% - 110% Uc
Certifications
- Certifications
- CE
