AC Contactor
This AC contactor is suitable for circuits up to 660V AC 50Hz or 60Hz, with a rated current up to 95A, for controlling AC motors. It can be combined with auxiliary components like auxiliary contact groups and air delayers for different applications.
Technical Specifications
Product Overview
High-Performance AC Contactor
The CJX2-F series AC contactors are designed for reliable circuit management in industrial applications, supporting rated voltages up to 660V AC. These versatile components are ideal for long-distance circuit breaking, frequent motor starting, and controlling AC motors or distribution circuits. Built to conform with IEC 60947-4-1 standards, they ensure safety and durability in demanding electrical environments.
Technical Specifications
Key Performance Metrics
800 A
Max Rated Current
660 V
Max Rated Voltage
1,200 ops/h
Max Op. Frequency
- Rated Operational Voltage (Ue)
- Up to 660V AC 50/60Hz
- Rated Current Range
- 115A to 800A
Application & Compatibility
Primary Applications
- AC motor control and frequent starting
- Long-distance circuit breaking
- Power distribution circuit control
- Delay contactor assembly (with auxiliary contacts)
- Mechanical interlocking contactor assembly
- Star-delta starter configuration
- Electromagnetic starter (with thermal relay)
Compliance & Standards
- International Standards
- IEC 60947-4-1GB 14048.4CE

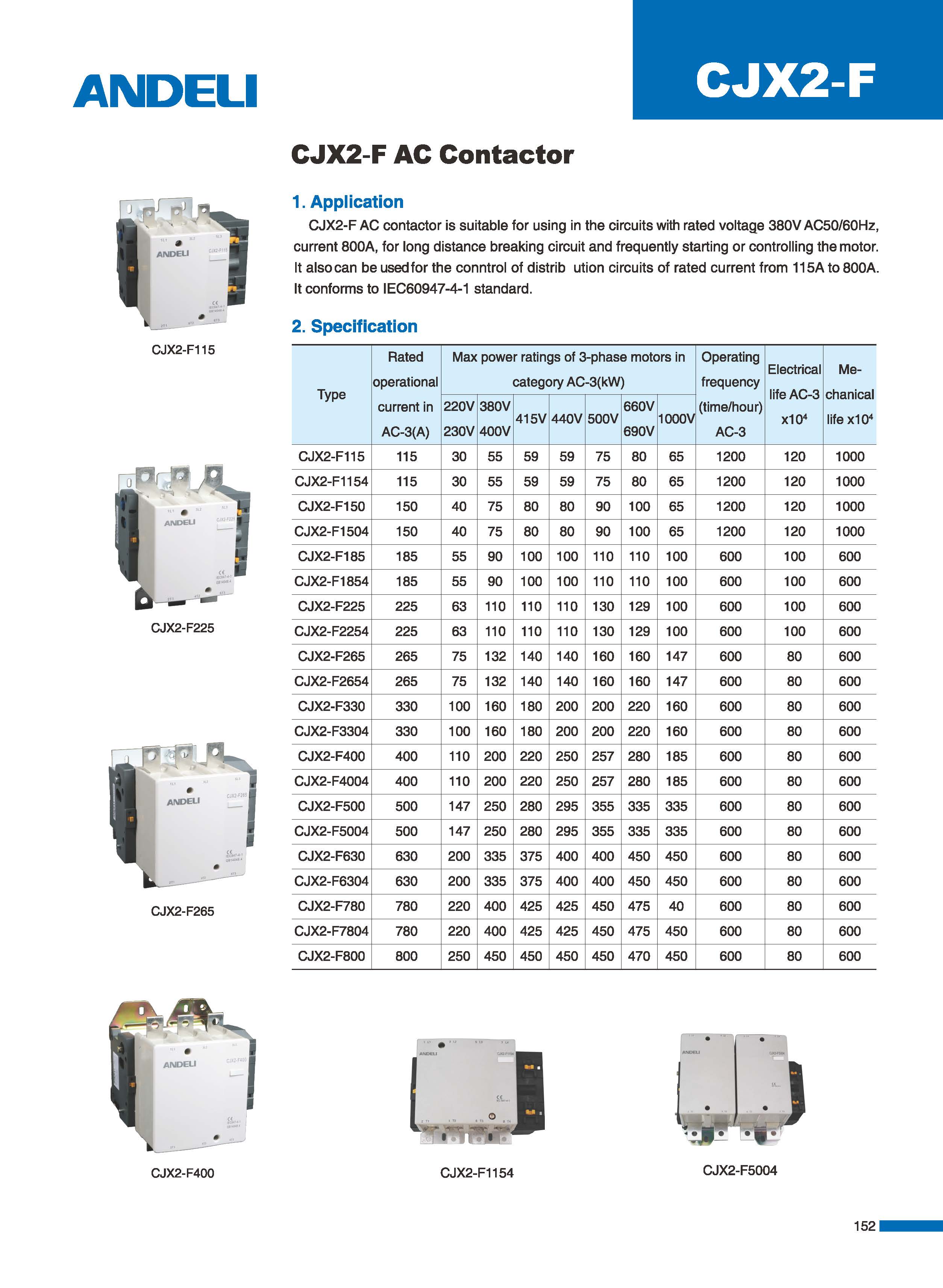

Model Comparison
3-Phase Motor Power Ratings (AC-3)
| Model | Current (A) | 380/400V (kW) | 660/690V (kW) | Mech. Life (x10^4) |
|---|---|---|---|---|
| CJX2-F115 | 115 | 55 | 80 | 1,000 |
| CJX2-F150 | 150 | 75 | 100 | 1,000 |
| CJX2-F185 | 185 | 90 | 110 | 600 |
| CJX2-F225 | 225 | 110 | 129 | 600 |
| CJX2-F400 | 400 | 200 | 280 | 600 |
| CJX2-F630 | 630 | 335 | 450 | 600 |
| CJX2-F800 | 800 | 450 | 470 | 600 |
