85mm Flat Top Modular Conveyor Belt

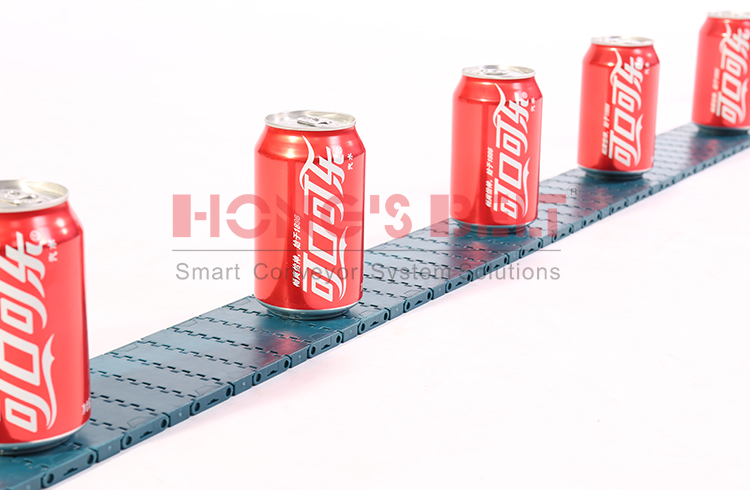

This 85mm flat top modular conveyor belt is designed for the beverage industry. Its modular design ensures easy installation and maintenance while providing a stable surface for transporting beverage containers.
Technical Specifications
Overview
High-Performance Modular Conveyor Belt
This 85mm flat top modular plastic conveyor belt is engineered for high-performance transport in demanding industrial environments, particularly within the beverage sector. Its robust, modular construction ensures reliable operation, easy maintenance, and customization to specific conveyor layouts. Featuring food-grade material compatibility and a high load capacity, it offers a durable and hygienic solution for efficient production and packaging lines.
Physical Specifications
- Pitch
- 25.4 mm
- Thickness
- 8.6 mm
- Minimum Width
- 85 mm
- Rod Diameter
- 4.5 mm
- Open Area
- 0%
Technical Features
Available Colors
WhiteBlueGrayNatureDark-brown
Maximum Load Capacity
1.2 tons/m²
Max Load
- Available Materials
- PPPOMPEPA
- Working Temperature
- -40°C to 260°C
- Certifications
- FDAEU
Configuration

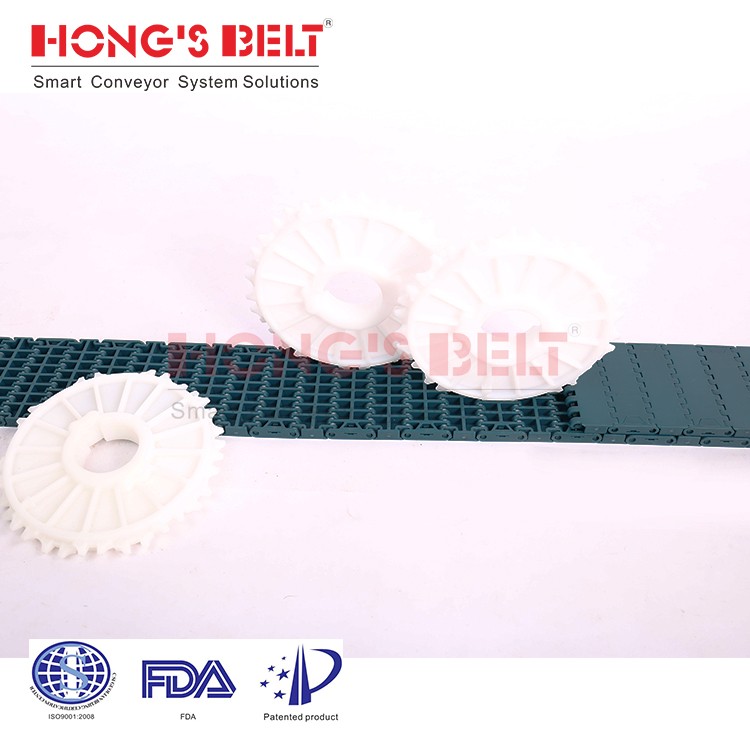

Sprocket Dimensions
- 12T-2R
- 18T-2R
- 20T-2R
- Bore Types
- Square BoreRound Bore
Applications
- Food Industry Applications
- MeatPoultrySea FoodBakerySnack FoodFruit & Vegetables
- Non-Food Industry Applications
- AutomotiveTire ManufacturingPackagingPrinting/PaperPostalCorrugated CardboardCan ManufacturingPET ManufacturingTextile
