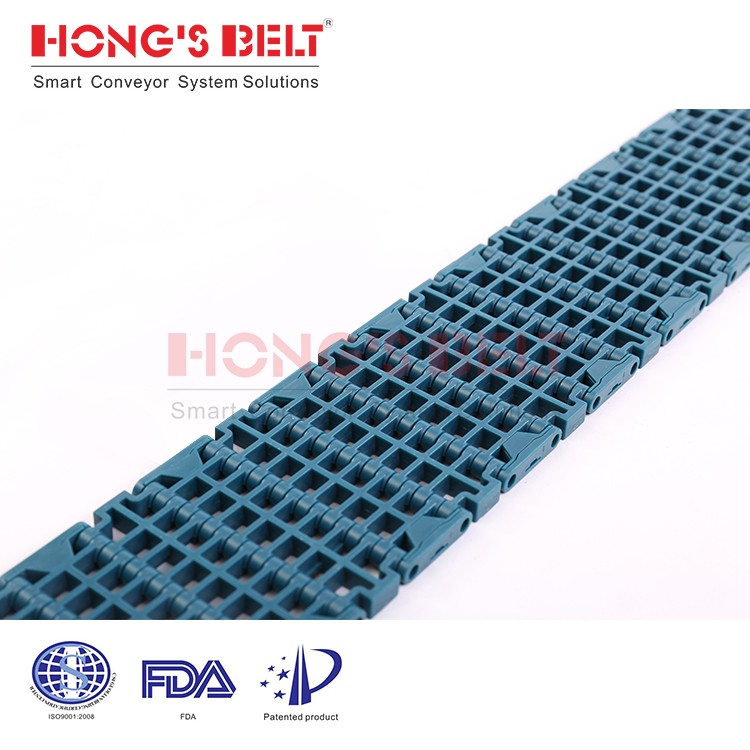

84mm Flush Grid Modular Conveyor Belt

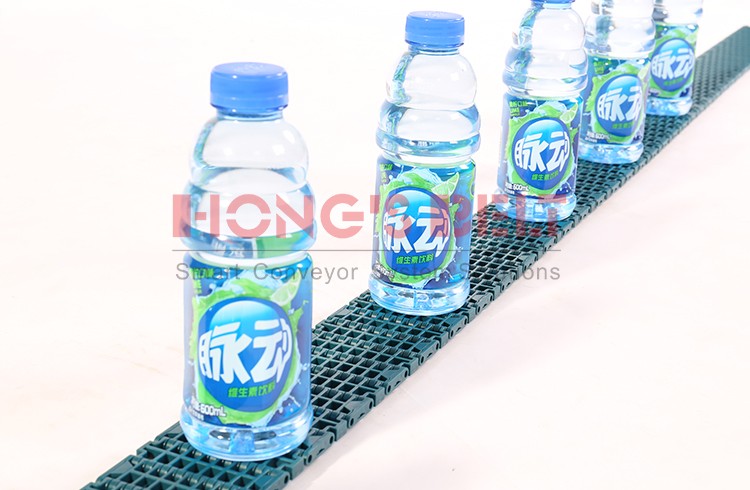

This 84mm flush grid modular conveyor belt is designed for the beverage industry. Its modular design allows for easy assembly and maintenance.
Technical Specifications
Product Overview
High-Performance Modular Conveyor Belt
The HS-F1000-84B is a specialized flush grid modular plastic conveyor belt engineered for the beverage and food processing industries. Designed for durability and efficiency, it features a 42% open area for optimal drainage and airflow. This belt offers a robust load capacity of up to 1.2 tons per square meter, ensuring reliable performance in demanding production environments.
Technical Specifications
Compliance
FDAEU Approved
- Pitch
- 25.4 mm
- Thickness
- 8.6 mm
- Minimum Width
- 84 mm
- Open Area
- 42 %
- Rod Diameter
- 4.5 mm
- Working Temperature
- -40°C to 260°C
- Available Materials
- PPPOMPEPA
- Available Colors
- WhiteBlueGrayNatureDark-brown
Configuration
Sprocket Dimensions
- 12T-2R
- 18T-2R
- 20T-2R
- Square Bore
- Round Bore
System Features
| Feature | Status |
|---|---|
| Flight | No |
| Side Guard | No |
| Curve | No |
Performance Metrics
Max Load Capacity
1.2 tons/m²
Max Load
