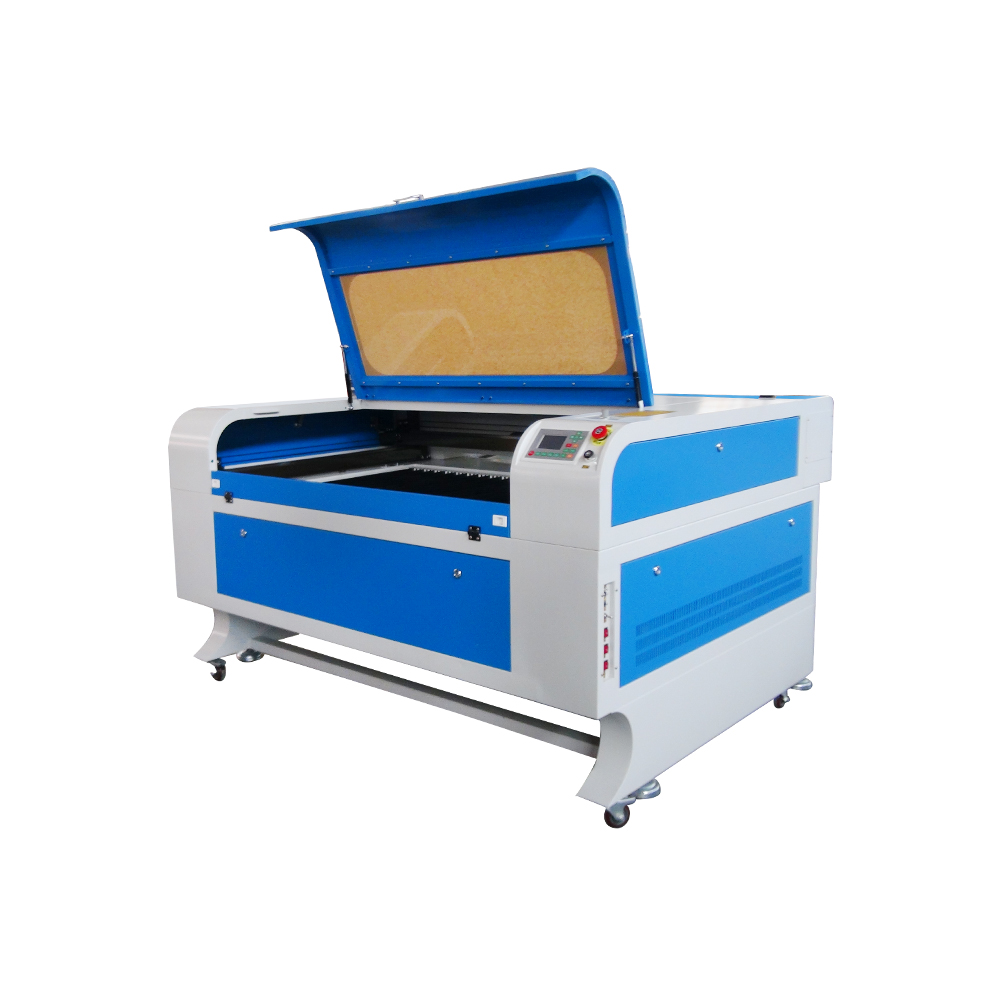

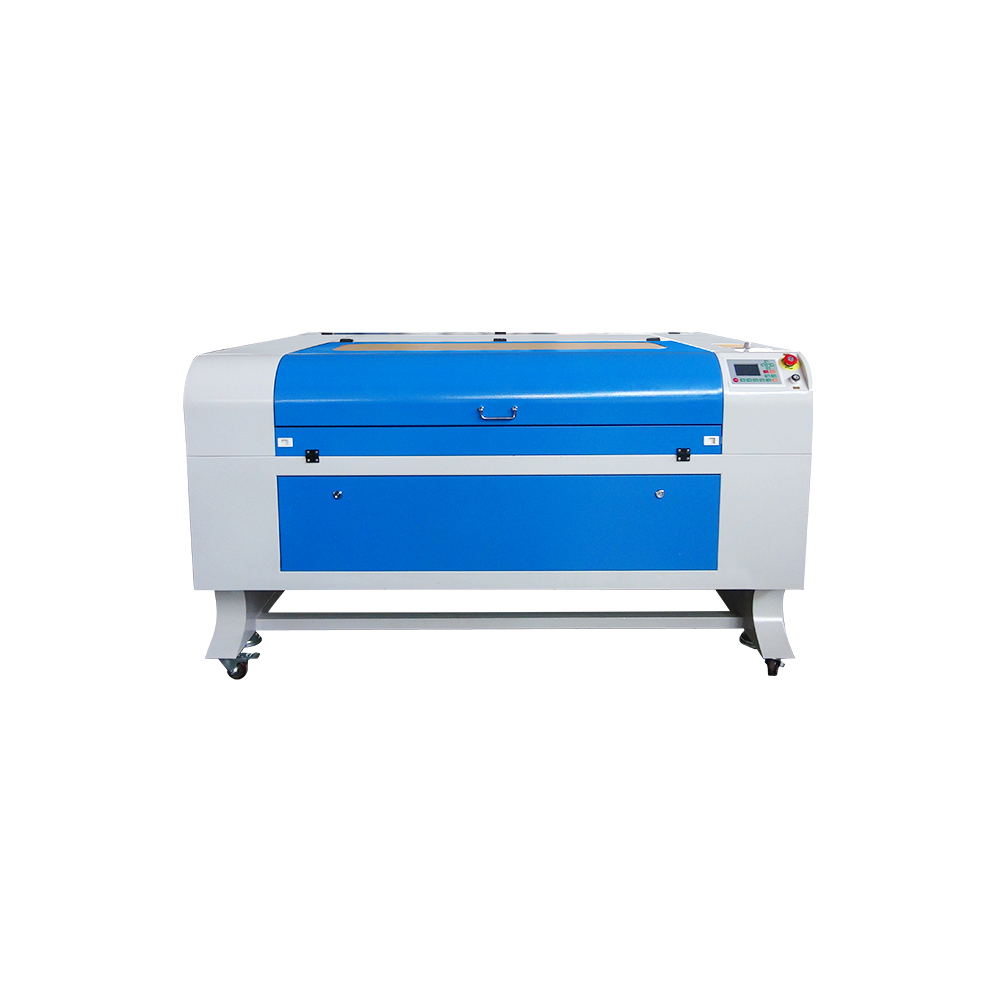

80W CO2 Laser Cutting and Engraving Machine
This 80W CO2 laser cutting and engraving machine is designed for precision work on various materials. It features an auto focus system and a long-life RECI laser tube.
Technical Specifications
Overview
Professional 80W CO2 Laser System
The SH-G1390 is a high-performance laser cutting and engraving machine designed for precision and reliability in industrial and commercial environments. Equipped with a robust 80W CO2 laser tube, it offers an expansive 1300x900mm working area suitable for varied materials like acrylic, wood, fabric, and plastic. Featuring advanced DSP control and water cooling, this machine provides exceptional accuracy and efficiency for signage, prototyping, and detailed artistic creation.
Technical Parameters
Laser Power
80 W
Rated Power
- Working Area
- 1300x900mm
- Max Moving Speed
- 30000 mm/min
- Locating Precision
- <0.01 mm
- Cutting Thickness
- 0-20mm (material dependent)
Performance
Supported Graphic Formats
- BMP
- GIF
- JPGE
- PCX
- TIFF
- PLT
- CDR
- DMG
- Compatible Software
- Laserworks V8CorelDrawAutoCAD
- Operating Systems
- Windows VistaWindows 7Windows 8Windows 10
Physical Attributes
Weight
410 kg
Net Weight
465 kg
Gross Weight
Cooling System
Water coolingCW5000 Chiller
- Machine Dimensions
- 1900 x 1550 x 1080 mm
