Technical Specifications
Product Overview
Industrial Pressure Monitoring

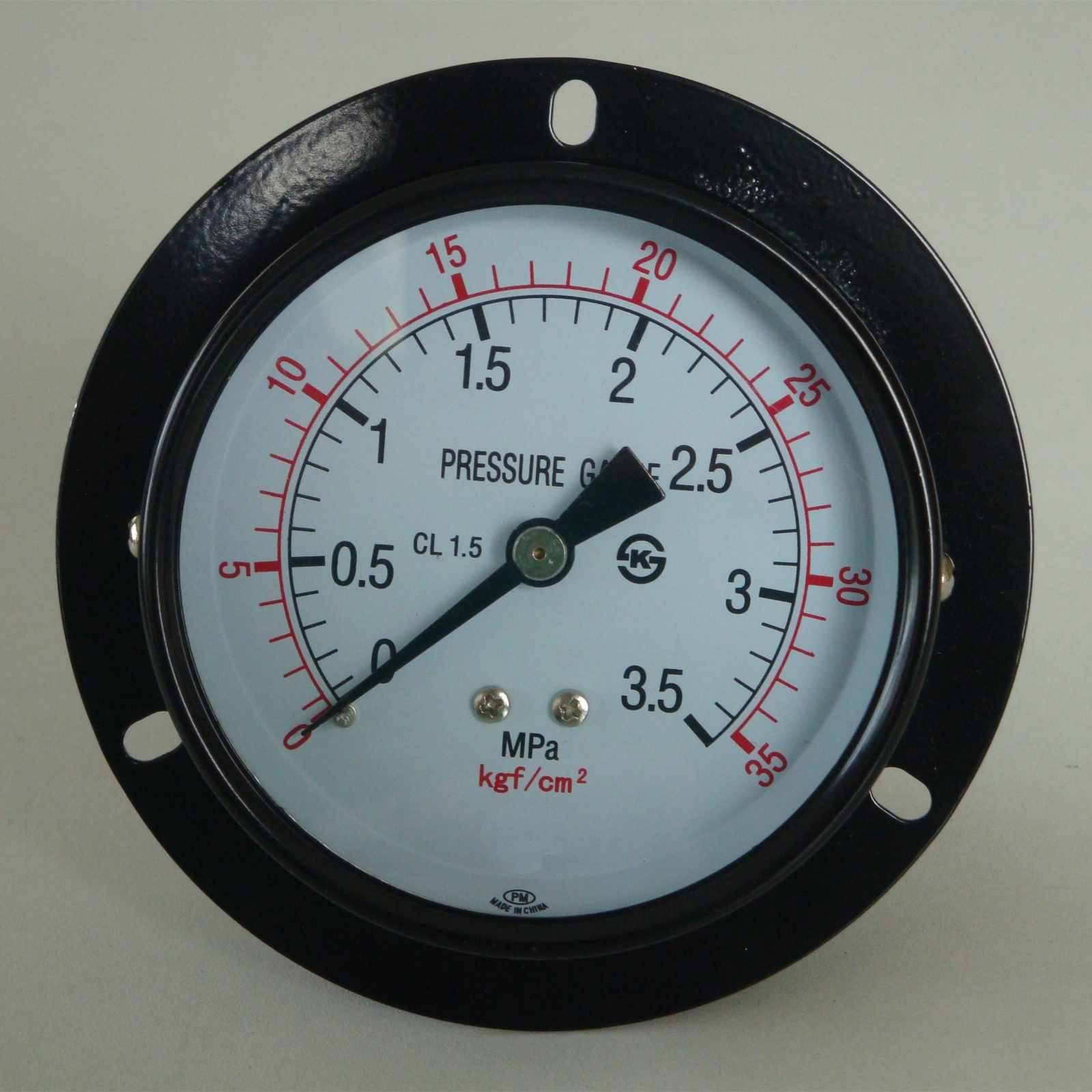

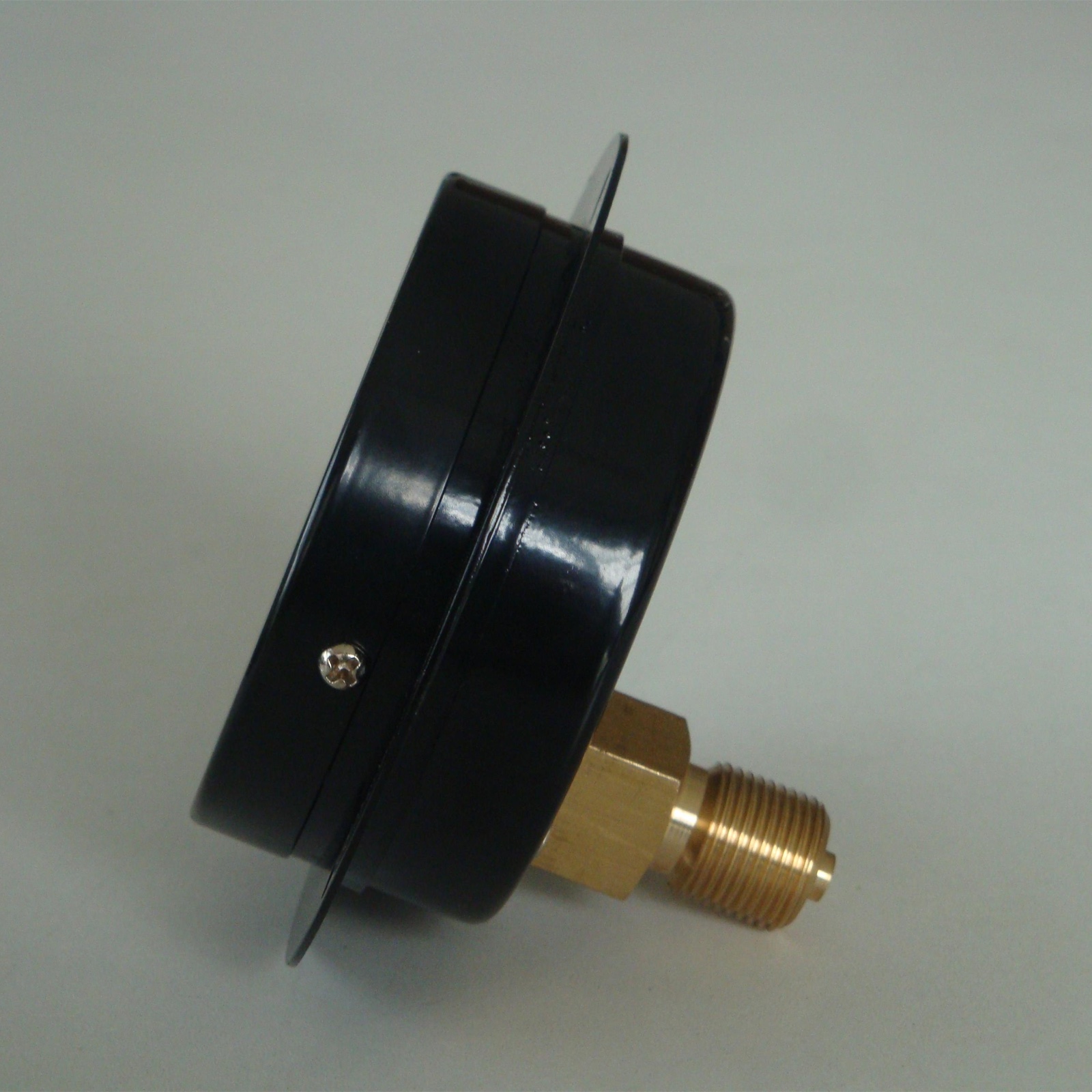

This 80mm pressure gauge is engineered for durability and precise pressure measurement in diverse industrial environments. Constructed with a robust black steel case and a specialized three-hole flange mount, it offers secure installation and reliable performance. Suitable for various media, this gauge supports custom connection types and pressure ranges to meet specific system requirements.
Core Specifications
- Dial Size
- 80mm
- Mounting Configuration
- Lower Back Mount with 3-Hole Flange
- Accuracy Class
- 1.5
- Pressure Range
- -1 to 1000 bar
Construction
Internal Components
| Component | Available Materials |
|---|---|
| Movement | SS304, Brass |
| Connection | SS316, SS304, Brass |
| Bourdon Tube | SS316, Phosphor Bronze |
- Case Material
- Black Steel
- Window Material
- GlassTempered GlassSafety GlassPC GlassAcrylic
Options
Operating Type
Liquid FilledDry Type
- Supported Threads
- PTNPTG
