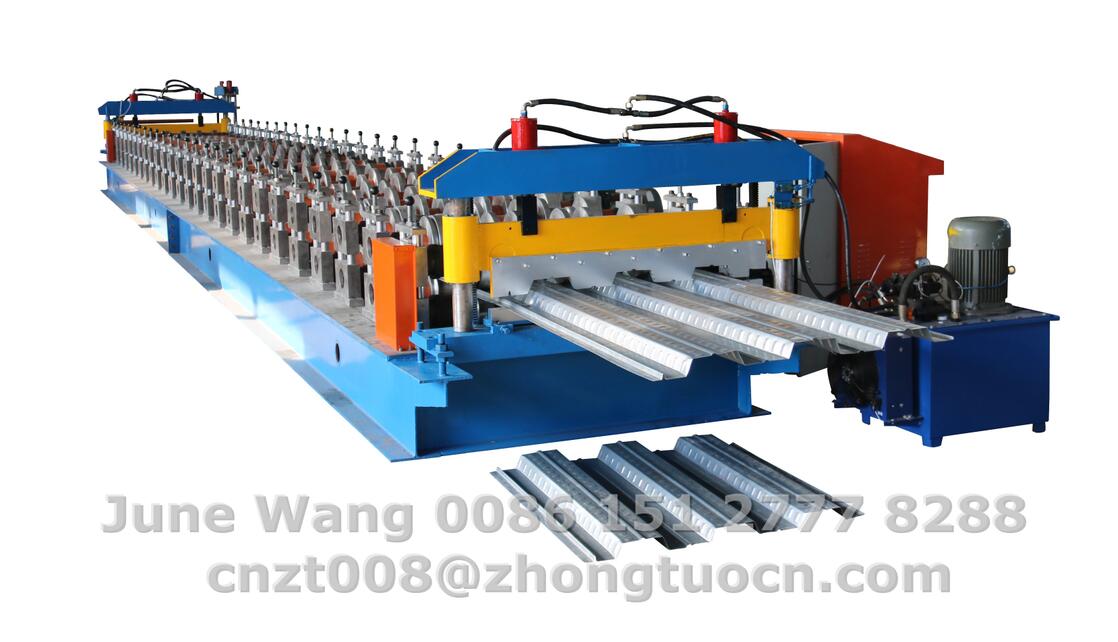

720 Steel Floor Deck Roll Forming Machine

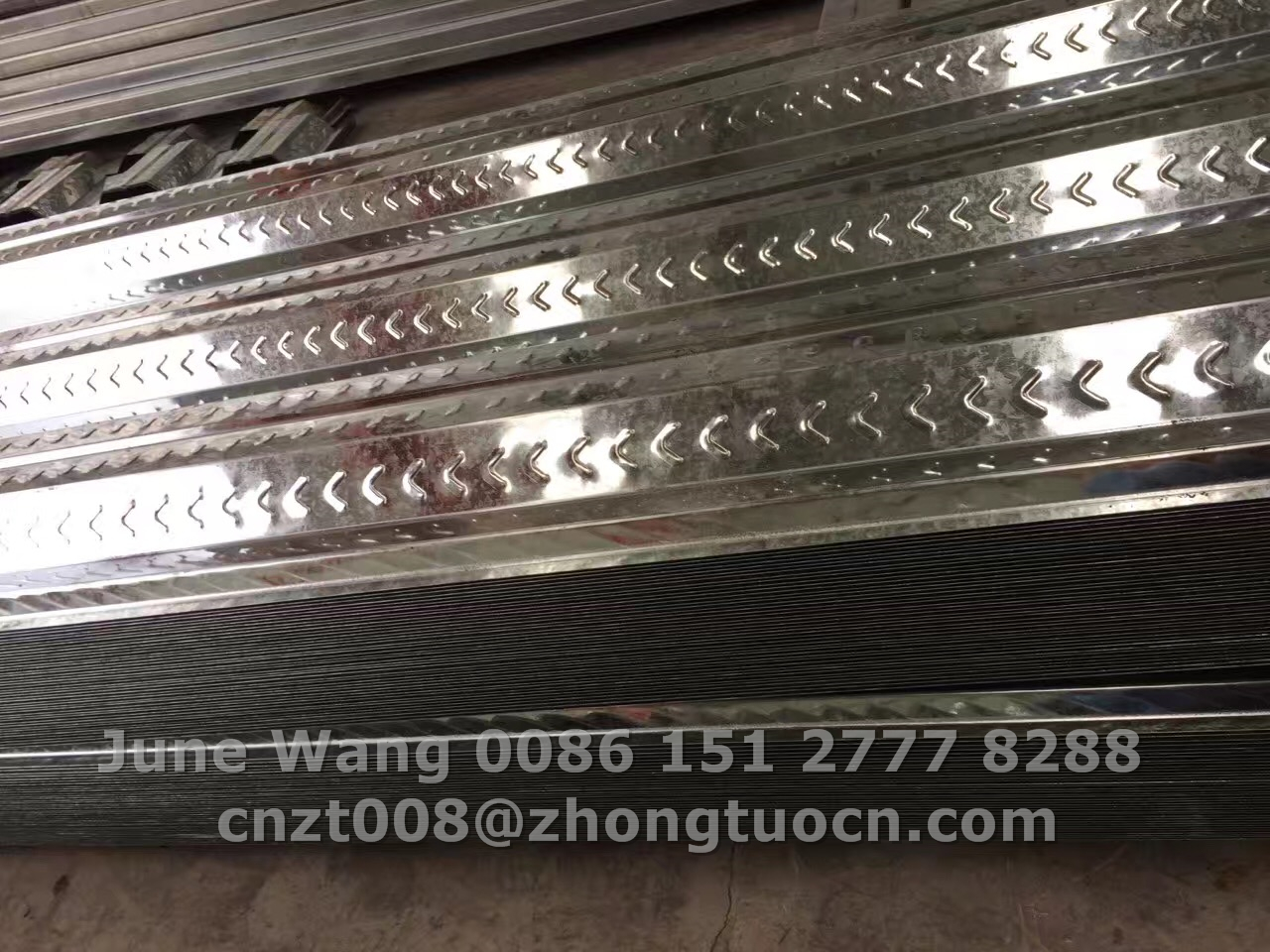

The steel floor deck roll forming machine is a heavy machine used for shaping steel sheets into floor decks. These decks are widely used in power plants, steel structures, and large buildings.
Technical Specifications
Overview
High-Precision 720 Steel Floor Deck Machine
This heavy-duty roll forming machine is engineered for the efficient production of steel floor decking used in large-scale infrastructure. It features a 24-station forming system that ensures consistent profile quality and dimensional accuracy for construction materials. Designed for high-volume manufacturing, the system integrates automated feeding, precise forming, and hydraulic cutting to minimize material waste and maximize output.
Technical Specifications
- Machine Type
- Steel floor deck roll forming machine
- Roll Stations
- 24
- Roll Shaft Diameter
- 90 mm
- Roller Material
- Cr15
- Driving Power
- 22 kW
- Driving Method
- Chains
Material Handling
- Material Type
- Galvanized steel
- Material Thickness
- 0.8 - 1.2
Application & Usage
- Common Applications
- Power PlantsAutomobile Exhibition HallsSteel Structure PlantsCement WarehousesAirport TerminalsRailway StationsSports VenuesConcert HallsLarge Supermarkets

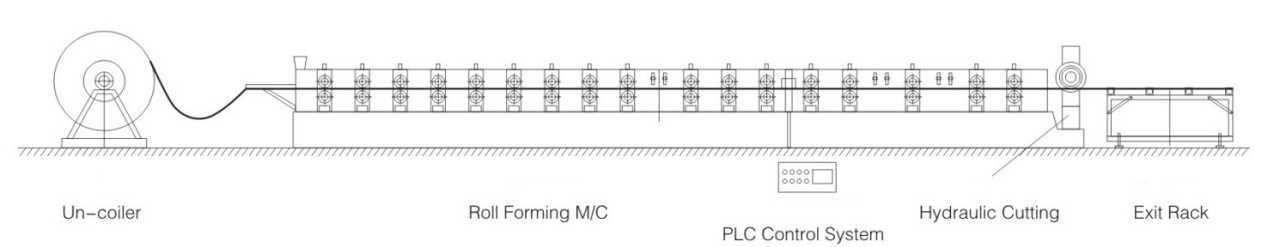

Process Flow
Production Process
- Un-coiler (Material Feeding)
- Roll Forming Machine (Shaping)
- Hydraulic Cutting
- Exit Rack (Collection)
- PLC Control System (Automation)
