Technical Specifications
Overview

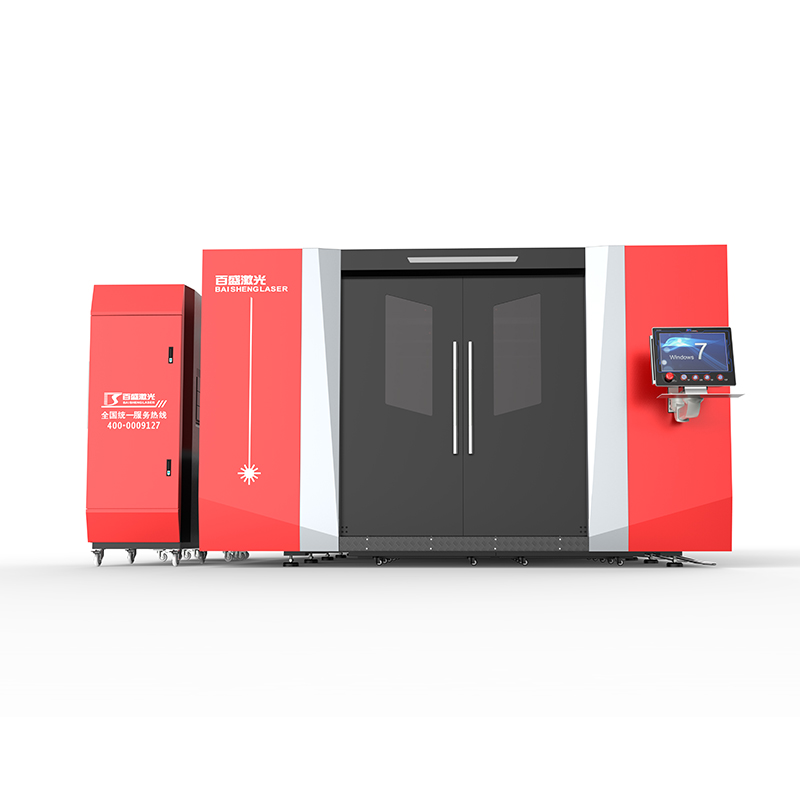

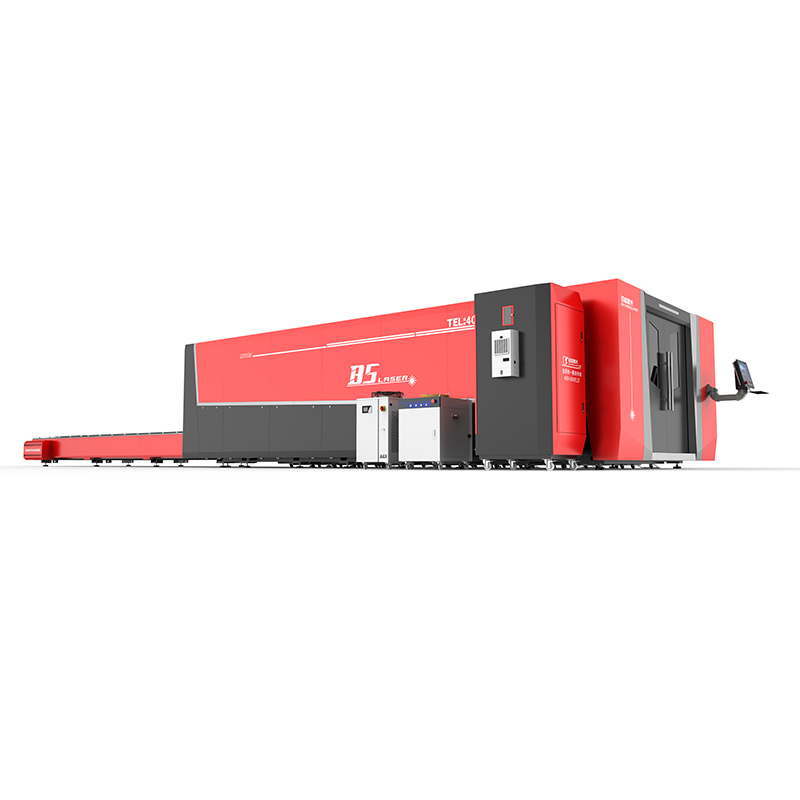

Industrial High-Power Fiber Laser System
This high-performance fiber laser cutting machine is engineered for precision metal fabrication in demanding industrial environments. It features a robust, fully enclosed design with a high-speed synchronous shuttle table that enables continuous loading and unloading for maximum productivity. With advanced motion control and high-precision cutting heads, it delivers consistent accuracy and stability across a wide range of sheet metal thicknesses.
Performance & Capacity
Laser Power Range
2,000 W
Minimum Power
15,000 W
Maximum Power
- Working Area
- 6000 x 2000 mm
- Shuttle Table Exchange Time
- 14 s
Materials
- Compatible Materials
- Stainless SteelCarbon SteelManganese SteelBrassGalvanized PlateAluminum Alloy
Construction & Design
Design Features
- Fully enclosed safety cover
- Aviation-grade aluminum extrusion crossbeam
- Synchronous shuttle table system
- Double-drive 6-track crawling mechanism
- Industrial fabricated structure with annealing and aging treatment
Key Components
Core Components
| System | Technology/Source |
|---|---|
| Laser Source | IPG / RAYCUS |
| Servo Motor | Schneider / YASKAWA / Panasonic |
| Gas Control | Japan SMC |
| Cutting Head | Raytools / WSX / Precitec |
| Drive System | Taiwan Rack and Pinion |
