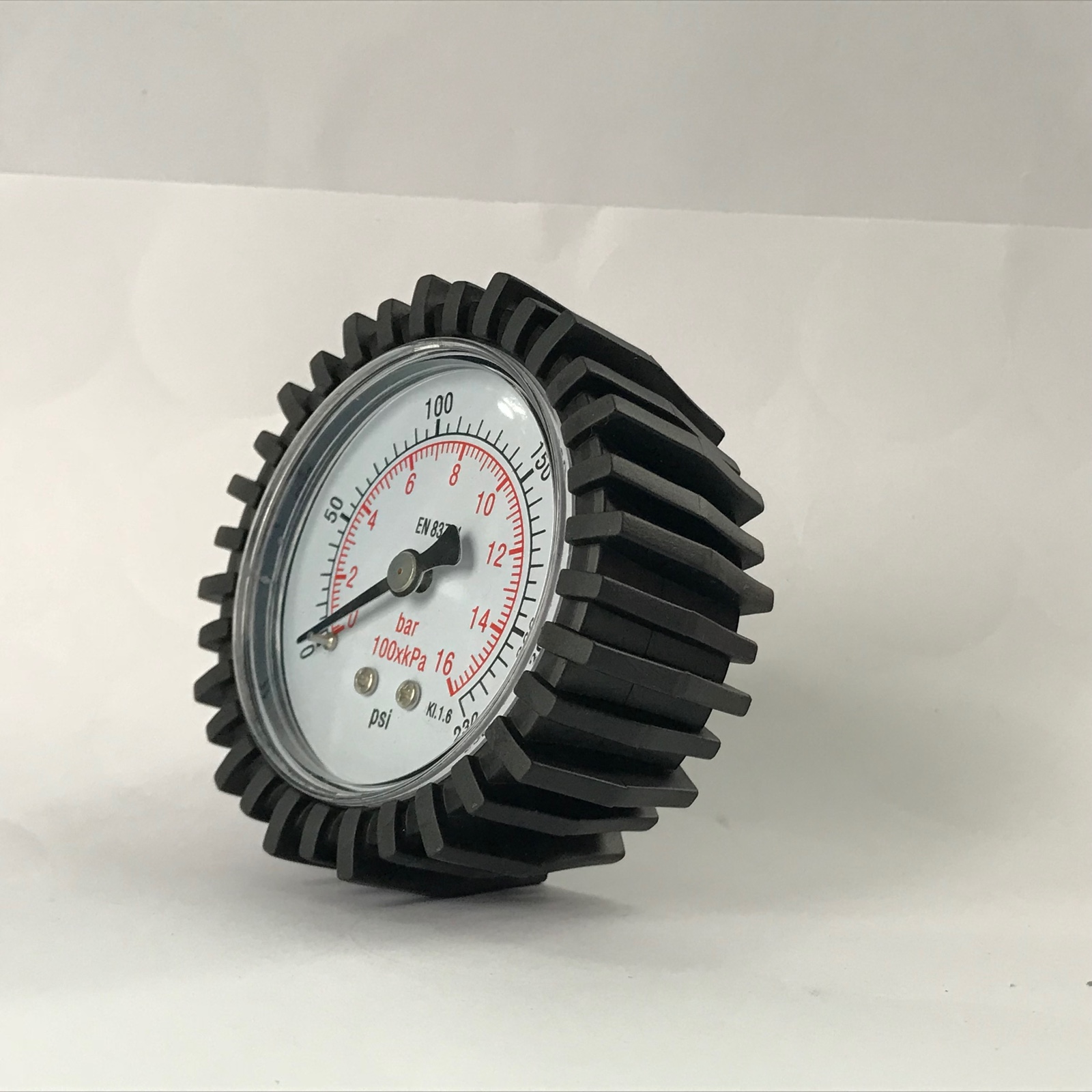

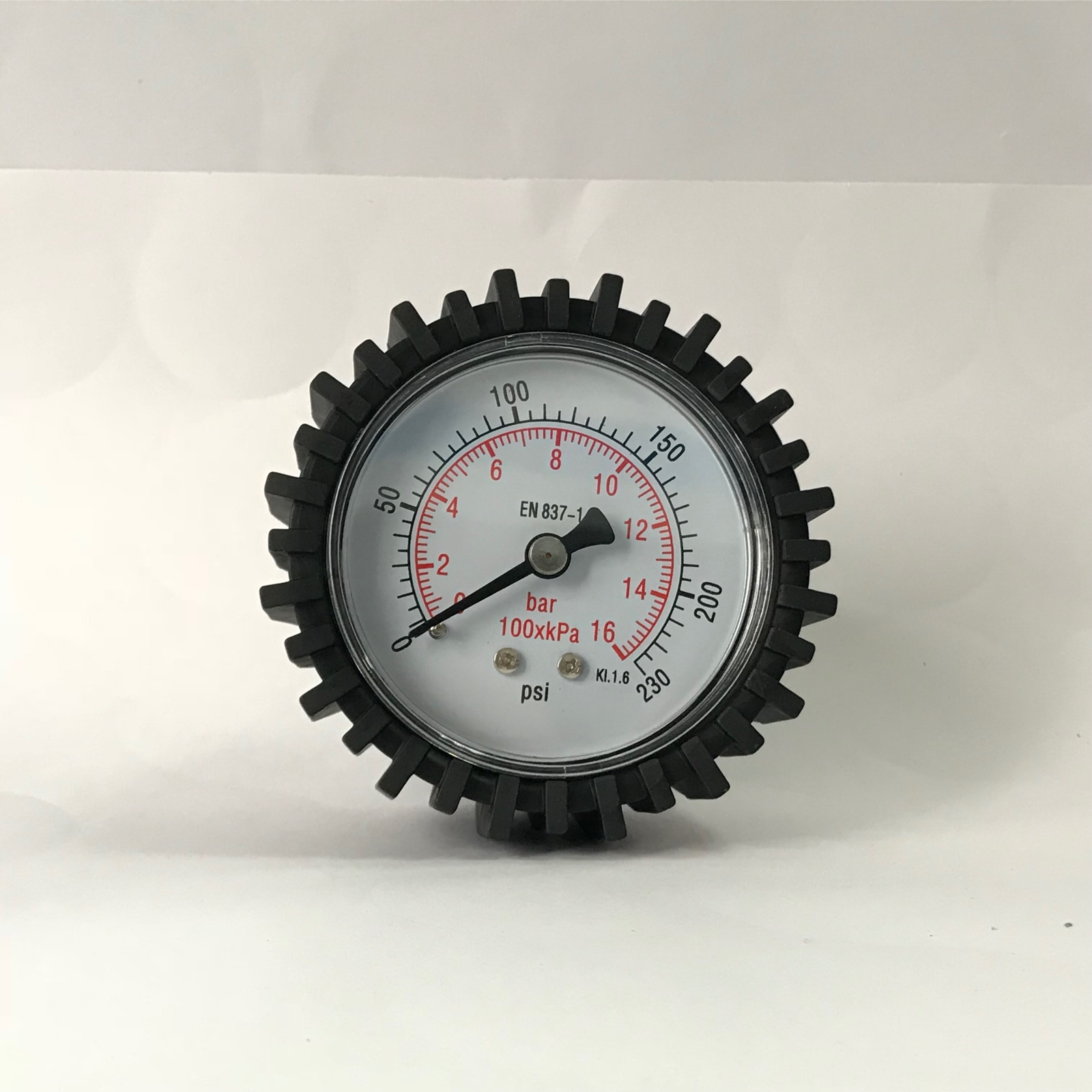

60mm Pressure Gauge with Rubber Sleeve
This 60mm pressure gauge features a plastic housing encased in a rubber sleeve. It is designed for back mounting and measures pressure up to 16 bar (230 psi).
Technical Specifications
Product Overview
Industrial Pressure Gauge
This 60mm pressure gauge is engineered for durability, featuring a robust plastic housing reinforced by a protective rubber sleeve to withstand shock. Designed with a back-mounting configuration, it provides precise pressure readings in bar, psi, and kPa units. The unit is built to comply with EN 837-1 standards, ensuring reliable performance across a wide range of industrial and commercial applications.
Technical Specifications
Accuracy Class
Kl. 1.6Kl. 1.8
- Dial Size
- 60 mm
- Pressure Range
- -1 to 1000 bar
- Mounting Configuration
- Back Mount
Materials & Construction
Case Material
- Plastic with Rubber Sleeve
- SS304
- SS316
- Black Steel
Internal Materials
| Component | Material Options |
|---|---|
| Movement | SS304, Brass |
| Connection | SS316, SS304, Brass |
| Bourdon Tube | SS316, Phosphor Bronze |
- Window Material Options
- GlassTempered GlassSafety GlassPC GlassAcrylic
Certifications & Standards
- Standards
- EN 837-1
