6-Gang Waterproof Rocker Switch Panel with Voltmeter and USB Ports

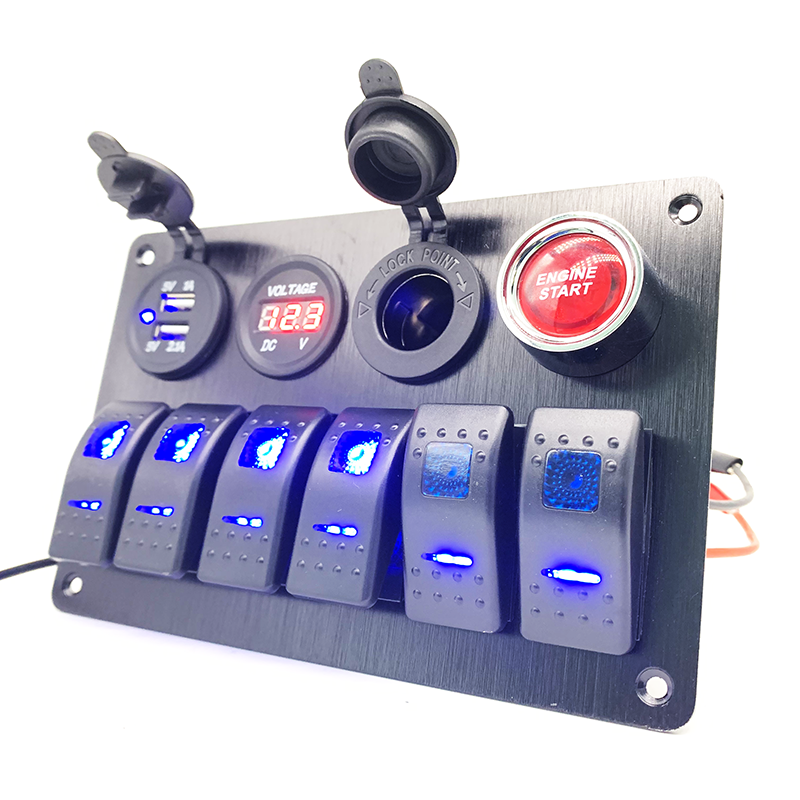

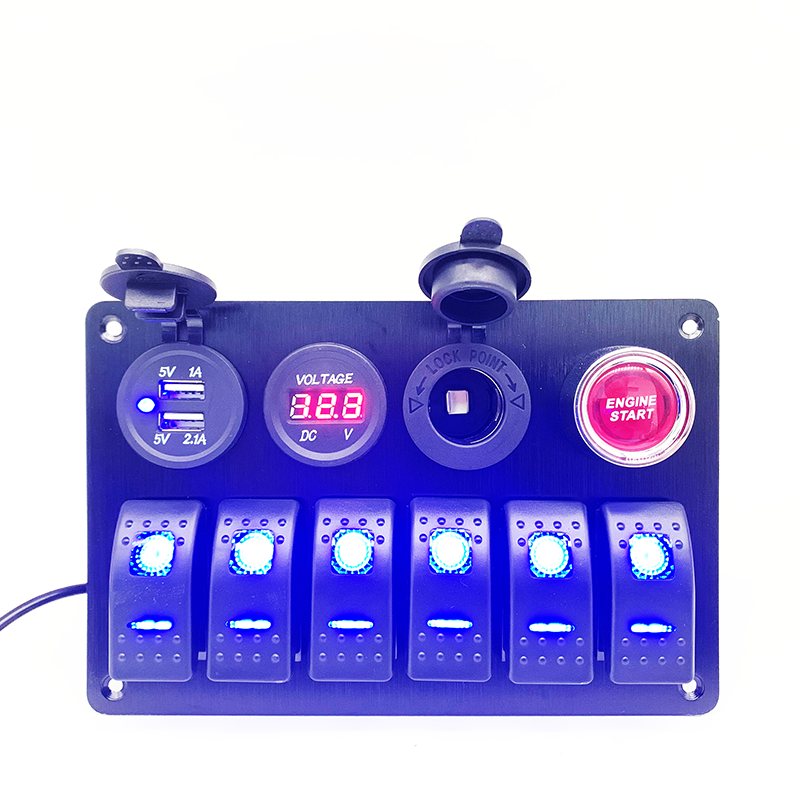

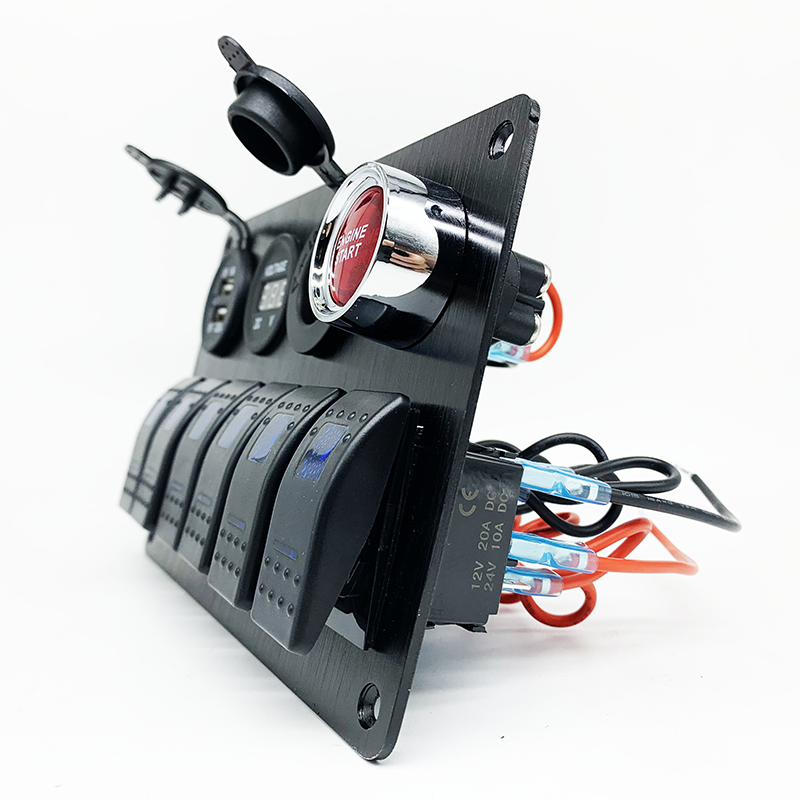

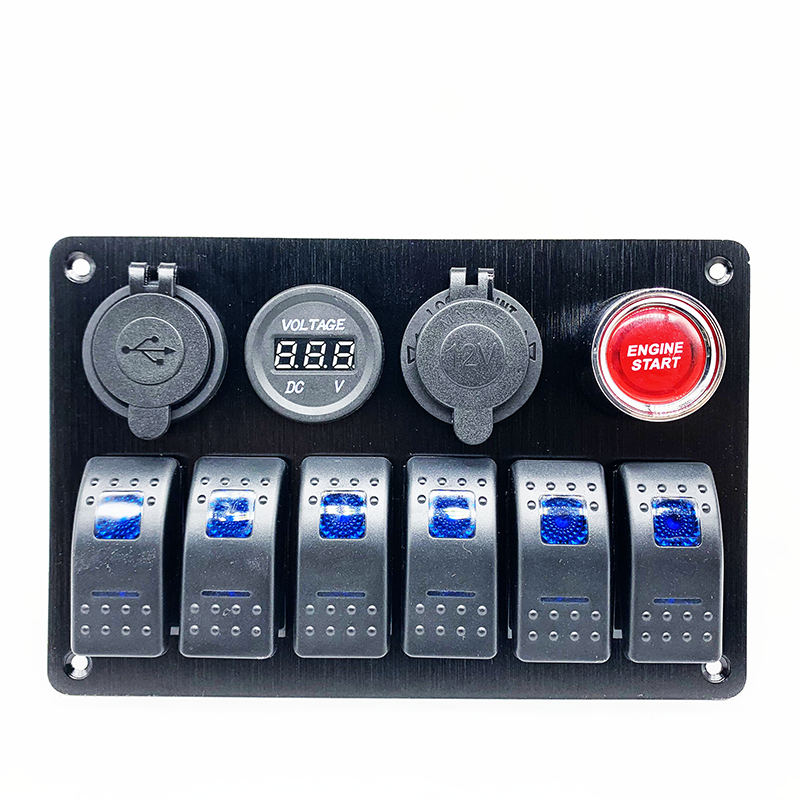

This waterproof rocker switch panel features six on/off switches with blue LED illumination. It also includes a voltmeter, USB ports, a 12V power outlet, and an engine start button.
Technical Specifications
Product Overview
Versatile 6-Gang Marine Control Panel
This waterproof rocker switch panel is a comprehensive solution for managing electrical systems in marine and automotive environments. It features six laser-etched ON-OFF switches with blue LED indicators, a digital voltmeter for real-time monitoring, and dual USB charging ports. Built from a durable blend of aluminum and flame-retardant ABS, it is designed to withstand harsh conditions in boats, RVs, and trailers.
Electrical Specifications
Rated Current
20 A
at 12V DC
10 A
at 24V DC
USB Charging Output
- Port 1: 5V 1A
- Port 2: 5V 2.1A
- Operating Voltage
- 12V / 24V DC
Interface & Controls
- Number of Gangs
- 6
- Switch Function
- SPST ON-OFF Rocker
- Integrated Components
- Digital VoltmeterDual USB PortsCigarette Lighter SocketEngine Start ButtonLED Indicators
Physical Construction
Materials
- Aluminium
- ABS Plastic
- Metal
- LED Illumination
- Blue
- Panel Finish
- Local Tyrant Gold
Environmental & Durability
Protection Features
- Waterproof construction
- Dust and debris resistant rubber covers
- Flame retardant materials
- Operating Temperature
- -25°C to +85°C
Application
Target Applications
MarineBoatRVCarTrailerBusMotorcycle
