6-Gang Marine Rocker Switch Panel with USB and Voltmeter
This 6-gang marine rocker switch panel is designed for controlling DC electrical devices in marine and RV applications. It features integrated dual USB charging ports and a voltmeter for monitoring voltage.
Technical Specifications
Product Overview
Professional 6-Gang Marine Control Solution
This 12V/24V rocker switch panel is a comprehensive control hub designed for marine, RV, and automotive applications. It integrates six illuminated switches, dual USB charging ports, a digital voltmeter, and a power socket into a single waterproof unit. Built with flame-retardant materials and featuring a durable aluminum faceplate, it provides a reliable and organized way to manage your vehicle's electrical systems in demanding environments.
Electrical Ratings
Rated Current
20 A
at 12V
10 A
at 24V
- Operating Voltage
- 12V DC24V DC
Integrated Components

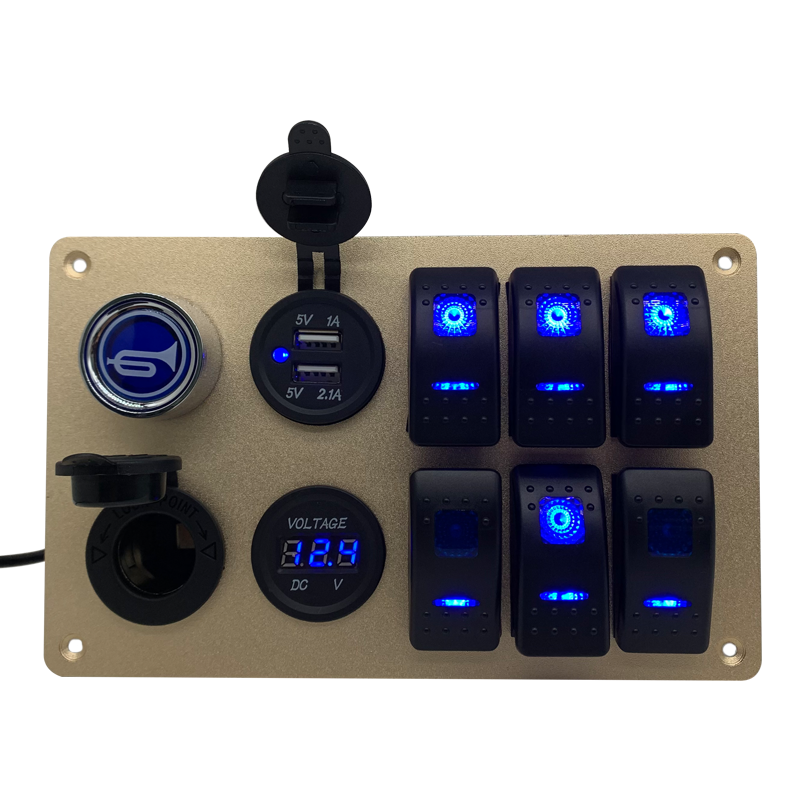

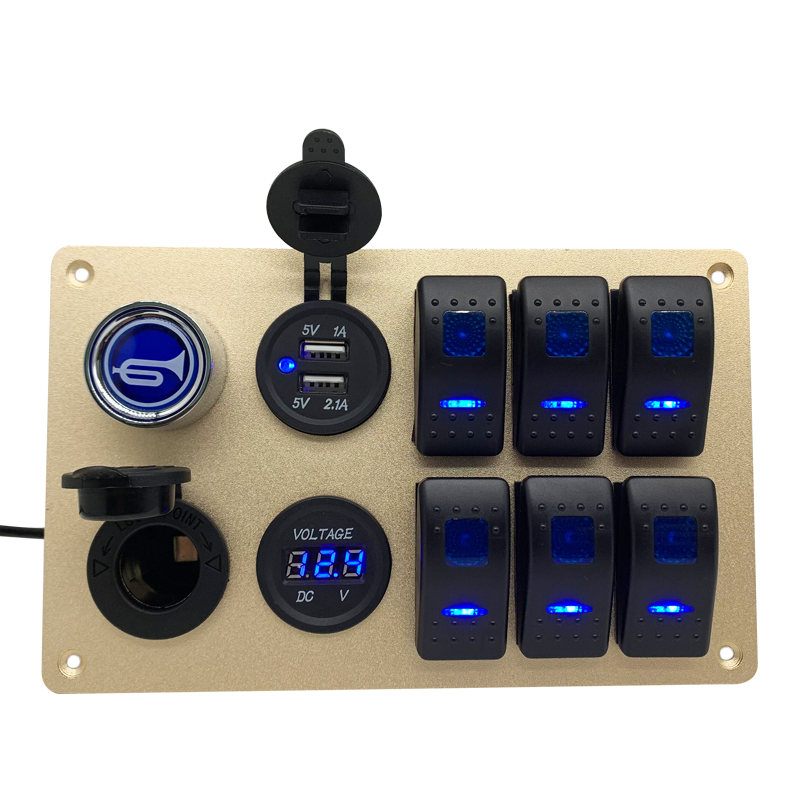

Panel Components
- 6 x SPST ON-OFF Rocker Switches
- 1 x Digital Voltmeter (8.8.8 Display)
- Dual USB Charging Ports
- 1 x 12V Cigarette Lighter Socket
- 1 x Horn Button
USB Charging Output
| Port | Voltage | Amperage |
|---|---|---|
| Port 1 | 5V | 1A |
| Port 2 | 5V | 2.1A |
Physical Construction
Environmental Protection
WaterproofDust ResistantDebris ResistantRubber Sealing Covers
- Materials
- AluminiumABS PlasticMetalFlame Retardant Materials
- LED Illumination
- Blue LED Light
Installation & Environment
Recommended Applications
- Marine Boats
- RVs and Campers
- Off-road Vehicles
- Buses
- Trailers
- Motorcycles
- Operating Temperature
- -25°C to +85°C
- Switch Pin Configuration
- 5 pins
