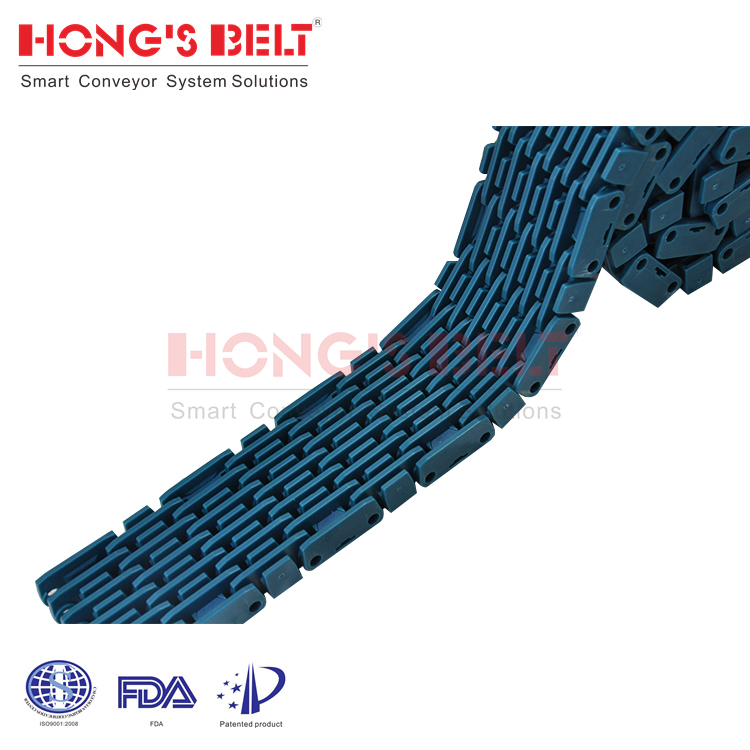

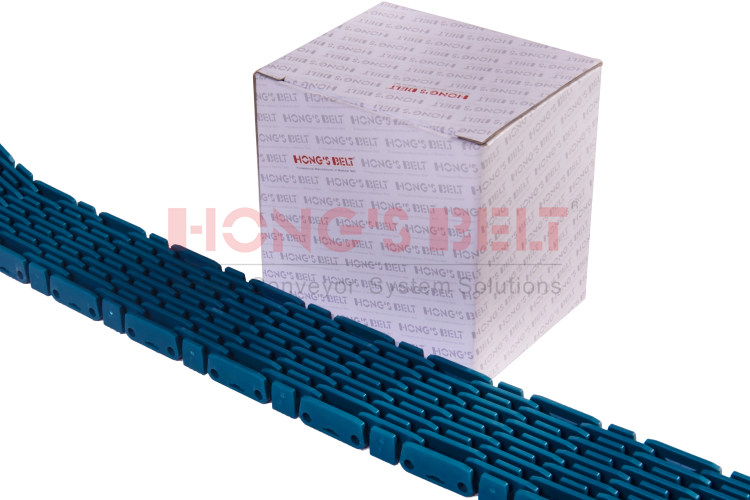

58mm Raised Rib Modular Plastic Conveyor Belt
This modular plastic conveyor belt features a 58mm raised rib design. It is designed for use in the beverage industry.
Technical Specifications
Product Overview
High-Performance Modular Conveyor Belt
This 58mm raised rib modular plastic conveyor belt is engineered for demanding beverage industry applications. Its robust design features a 42% open area, facilitating efficient drainage and cleaning. With a wide operating temperature range from -40°C to 260°C and a high load capacity of up to 1.2 tons/square meter, it offers exceptional durability and reliability in diverse processing environments.
Technical Specifications
Dimensions & Pitch
25.4 mm
Pitch
14.2 mm
Thickness
58 mm
Min. Width
Design Features
| Feature | Specification |
|---|---|
| Open Area | 42% |
| Rod Diameter | 4.5mm |
| Curve Capability | No |
| Flight / Side Guard | No |
- Material Composition
- PPPOMPEPA
Performance & Compatibility
Compliance
FDA ApprovedEU Compliant
Sprocket Options
- 12T-2R
- 18T-2R
- 20T-2R
- Square Bore
- Round Bore
- Temperature Range
- -40°C to 260°C
- Maximum Load Capacity
- 1.2 tons/sqm
Applications
Food Industry Applications
- Meat (Beef & Pork)
- Poultry
- Sea Food
- Bakery
- Snack Food
- Fruit & Vegetables
Non-Food Industry Applications
- Automotive
- Tire Manufacturing
- Packaging
- Printing/Paper
- Postal
- Corrugated Cardboard
- Can Manufacturing
- PET Manufacturing
- Textile
