Technical Specifications
Product Overview
Industrial Pressure Monitoring

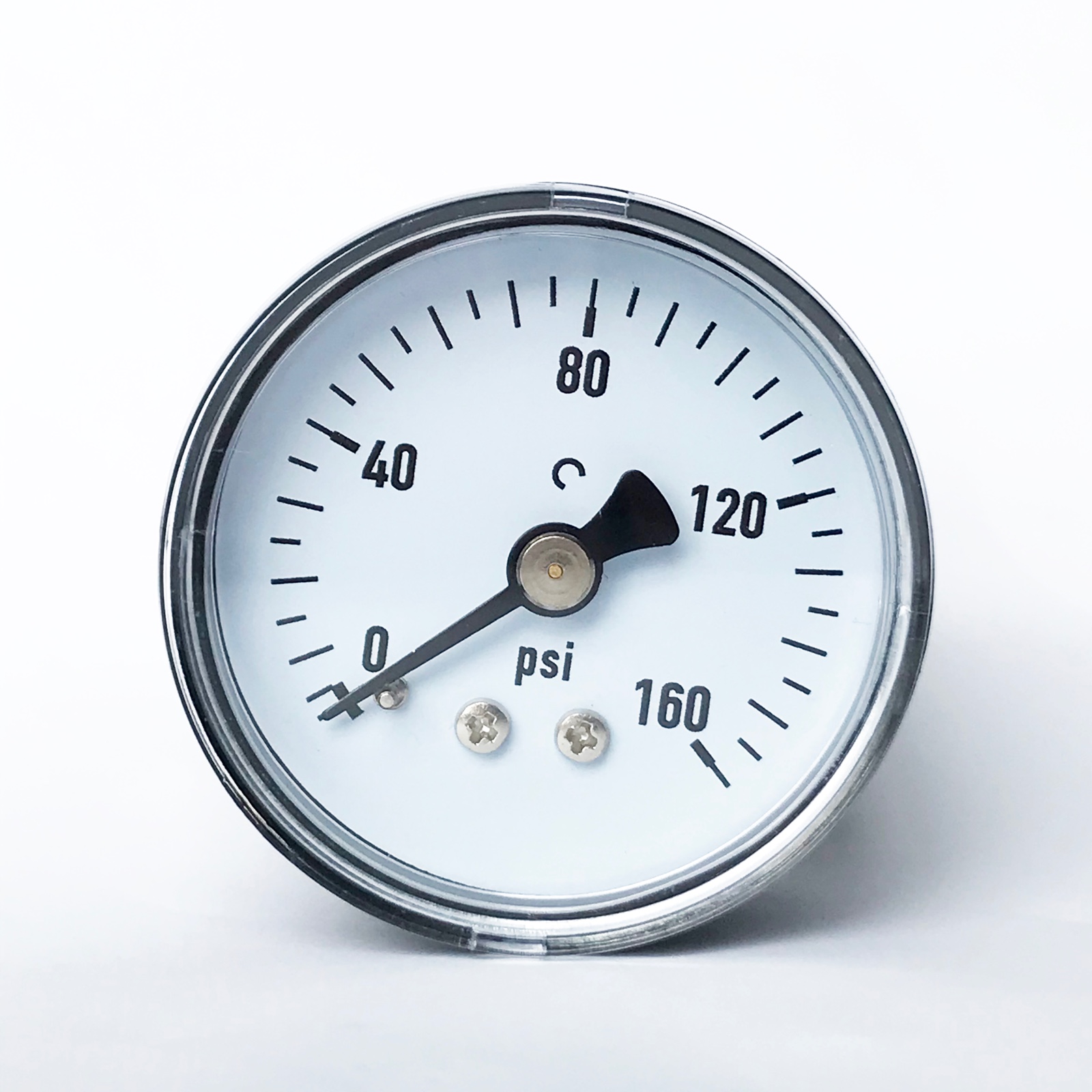

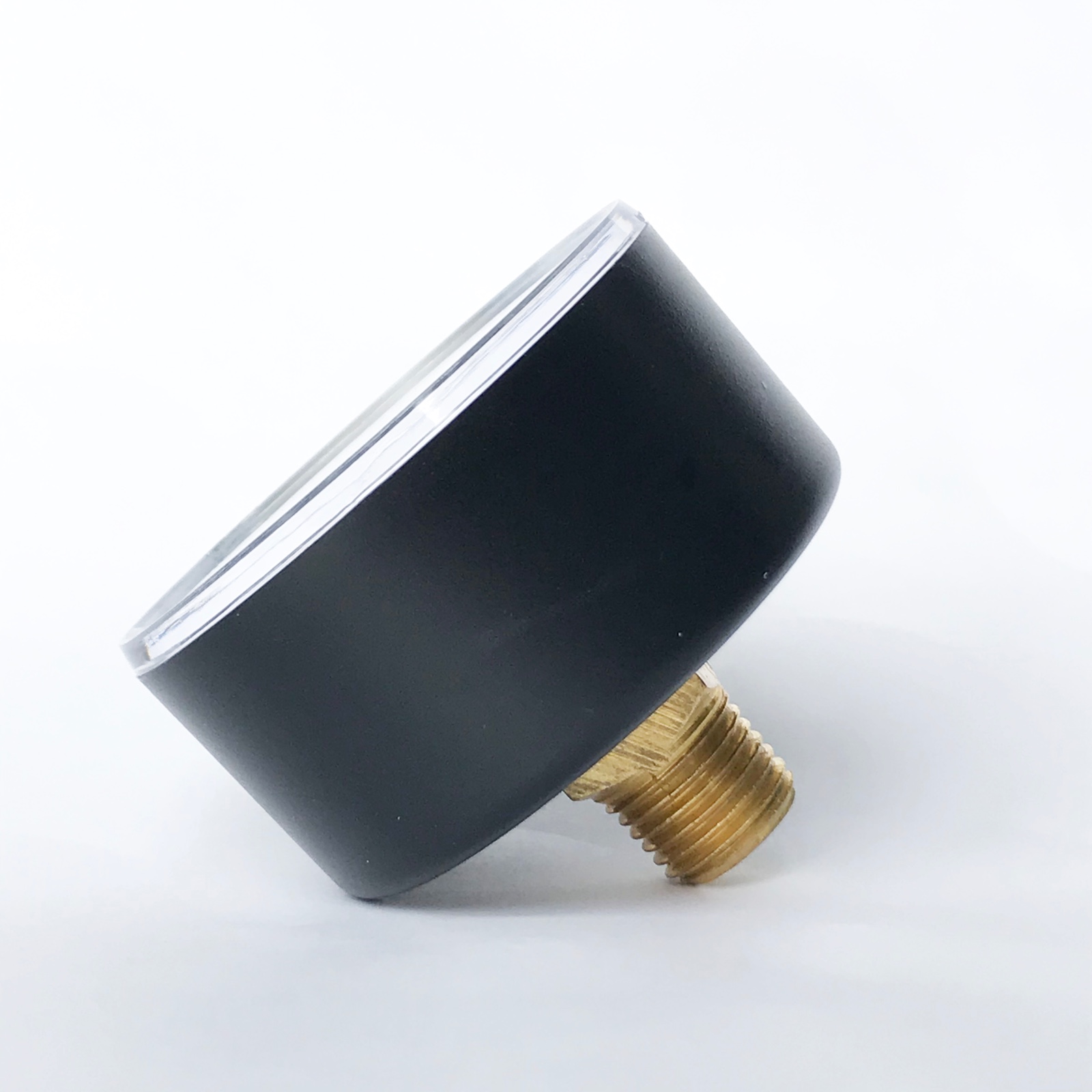

This 50mm pressure gauge is engineered for reliable pressure measurement in diverse industrial and commercial environments. Featuring a durable plastic case and convenient back connection, it is designed for ease of installation and long-term performance. The gauge supports pressures up to 160 psi, ensuring precise monitoring across a variety of technical applications.
Key Performance Metrics
Operational Capabilities
50 mm
Dial Size
160 psi
Max Pressure
Technical Specifications
Material Composition
| Component | Available Materials |
|---|---|
| Case | Plastic, SS304, SS316, Black Steel |
| Window | Glass, Tempered glass, Safety glass, PC glass, Acrylic |
| Movement | SS304, Brass |
| Bourdon Tube | SS316, Phosphor bronze |
Installation Options
- Bottom Connection
- Back Connection
- Lower Back Connection
- Customization & Extras
- Custom LogoFlangeBracketLiquid/Dry Type
